Instruction of Octoprint Kit-For Mac OS
1. Parts list
Control board*1
Step-down module*1
5V fan*1
Camera*1
Screw Set
Cable Tie*5
2Pin wire*1
3Pin wire*1

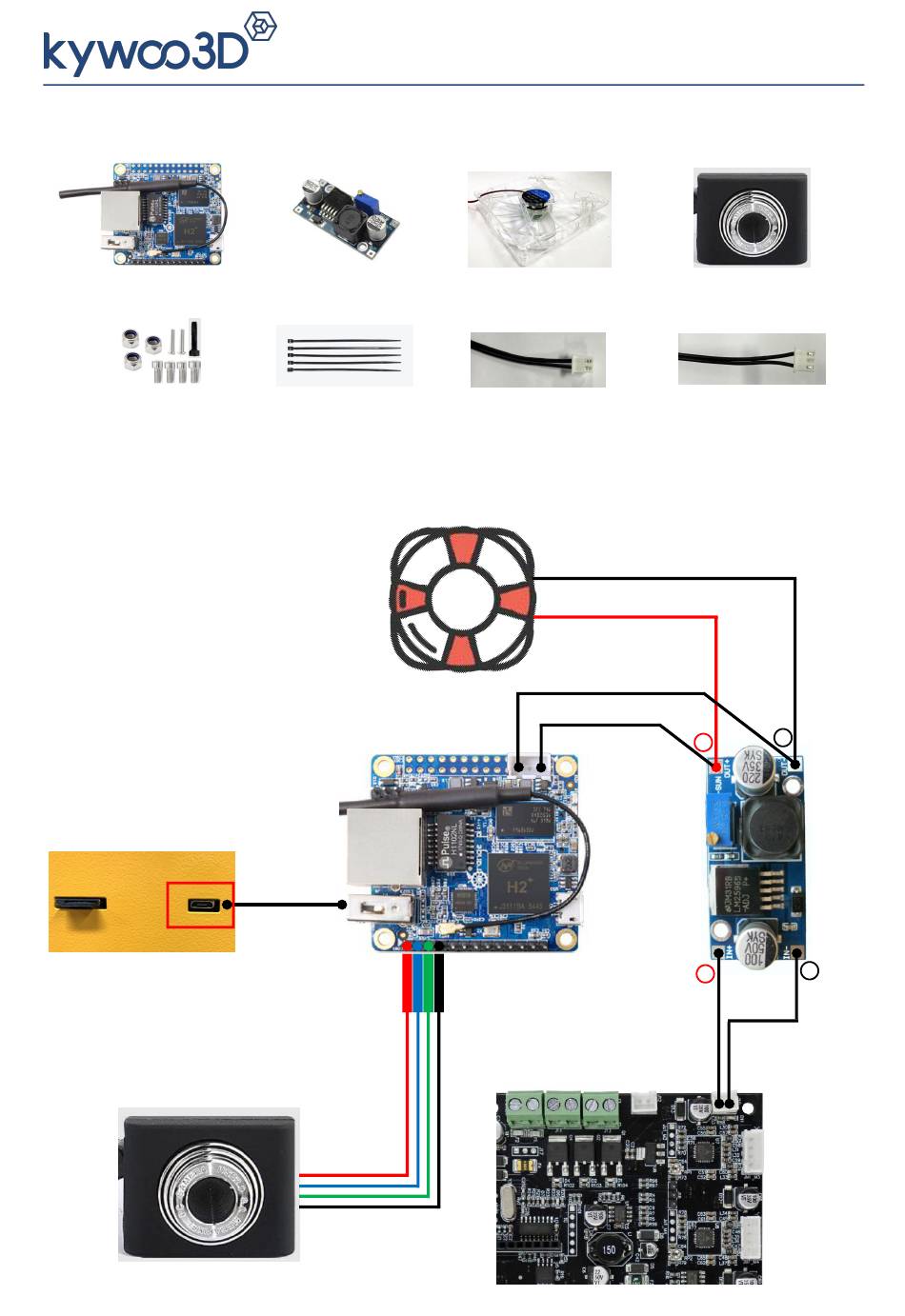

2. Wiring diagram (Some wires have already been connected, please do not
disassemble at will.)
Fan
﹣
﹢
Step-down
module
USB cable
connection
﹣
﹢
Control board
Micro USB port of the printer
控制板
Camera
Mainboard of the 3D printer
Advertisement
Related Manuals for Kywoo3D Octoprint
Summary of Contents for Kywoo3D Octoprint
- Page 1 Instruction of Octoprint Kit-For Mac OS 1. Parts list Control board*1 Step-down module*1 5V fan*1 Camera*1 Screw Set Cable Tie*5 2Pin wire*1 3Pin wire*1 2. Wiring diagram (Some wires have already been connected, please do not disassemble at will.) ﹣...
- Page 2 Instruction of Octoprint Kit-For Mac OS 3. Mac OS Computer Settings Ⅰ. Download Octoprint for Mac OS from kywoo3d.com. (The file is quite big, please be patient.) Ⅱ. Insert the TF card into the computer, and format the TF card. (If necessary, please backup relevant files before formatting.)
- Page 3 Ⅵ. Click Flash, and when it's finished loading, insert the TF card into the Octoprint control board. Ⅶ. Connect the Octoprint accessories as shown in the figure, insert the TF card into the control board, turn on the 3D printer. The control board indicator and the network interface lights on, and the fan works normally.
- Page 4 Instruction of Octoprint Kit-For Mac OS Ⅷ. Configuration of the board: Turning on the WiFi on your phone, and find the hotspot of the board( name: MyAccessPoint, password: 12345678.) Open the mobile browser, enter 10.0.0.1:8001 in the address bar, click Start, enter the home WiFi name and password on the web page, and click Add to complete the network configuration.
- Page 5 Ⅹ. Open the IP Scanner, it will automatically search the IP addresses around you. After searching finished, find “network camera”and click it. You can see the Local DNS is kywoo3d in the right device info list. Please write down the IP address.
- Page 6 XI. Open the Google Chrome, input the IP address into the address bar, then it will enter the Octoprint login page. Input the account and the password: kywoo3d, and click Log in, then it will enter to the home page of the Octoprint.
-
Page 7: Home Page Introduction
Instruction of Octoprint Kit-For Mac OS 4. Home page introduction Ⅰ. Temperature page ⅰ. Check and control the connection ⅱ. Check and control the printing ⅲ. Check and edit the print files ⅳ. Switch the control page (Temperature\Control\GCode Viewer\Terminal\Timelapse). ⅴ. Check the real-time temperature curve, control the temperature of the nozzle and hot bed. - Page 8 Instruction of Octoprint Kit-For Mac OS Ⅲ. G-Code Viewer interface ⅰ. View the real-time movement path and section status. You can manually select to view the previous layer or the next layer. Ⅳ. Terminal page ⅰ. View X\Y\Z real-time coordinates.
- Page 9 Instruction of Octoprint Kit-For Mac OS Ⅴ. Timelapse page ⅰ. You can set the camera to take pictures at intervals.
