ROLA-CASE Rola-Shelf RSCSBRPM118136159 Installation Manual

ATTENTION: PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLING/INSTALLING THIS PRODUCT
RSCSBRPM118136159
Please note: Deep
setbacks come in a
pair to suit left and
right sides
PART No. RSCSBRPM118136159 suits our RSCGBRPM118136159 (sold
separately) partition that fits the following vehicles:
• 2014-2021 RAM PROMASTER 1500 STD & HIGH ROOF, 118",136" & 159" W/B
• 2014-2021 RAM PROMASTER 2500 STD & HIGH ROOF 136" & 159" W/B
• 2014-2021 RAM PROMASTER 3500 STD & HIGH ROOF 136" & 159" W/B
The RolaCase Ram ProMaster Deep Set-Back converts your default partition for an additional 2.5"in of cabin space which allows for a deeper seat recline and more storage
between the seats and the partition.
These deep setbacks are designed to complement the Rolacase Partition/Bulkhead for the Ram ProMaster (kit part#: RSCGBRPM118136159 - sold separately ) below you can
see a composition for the Deep Setbacks and Partition (sold separately)

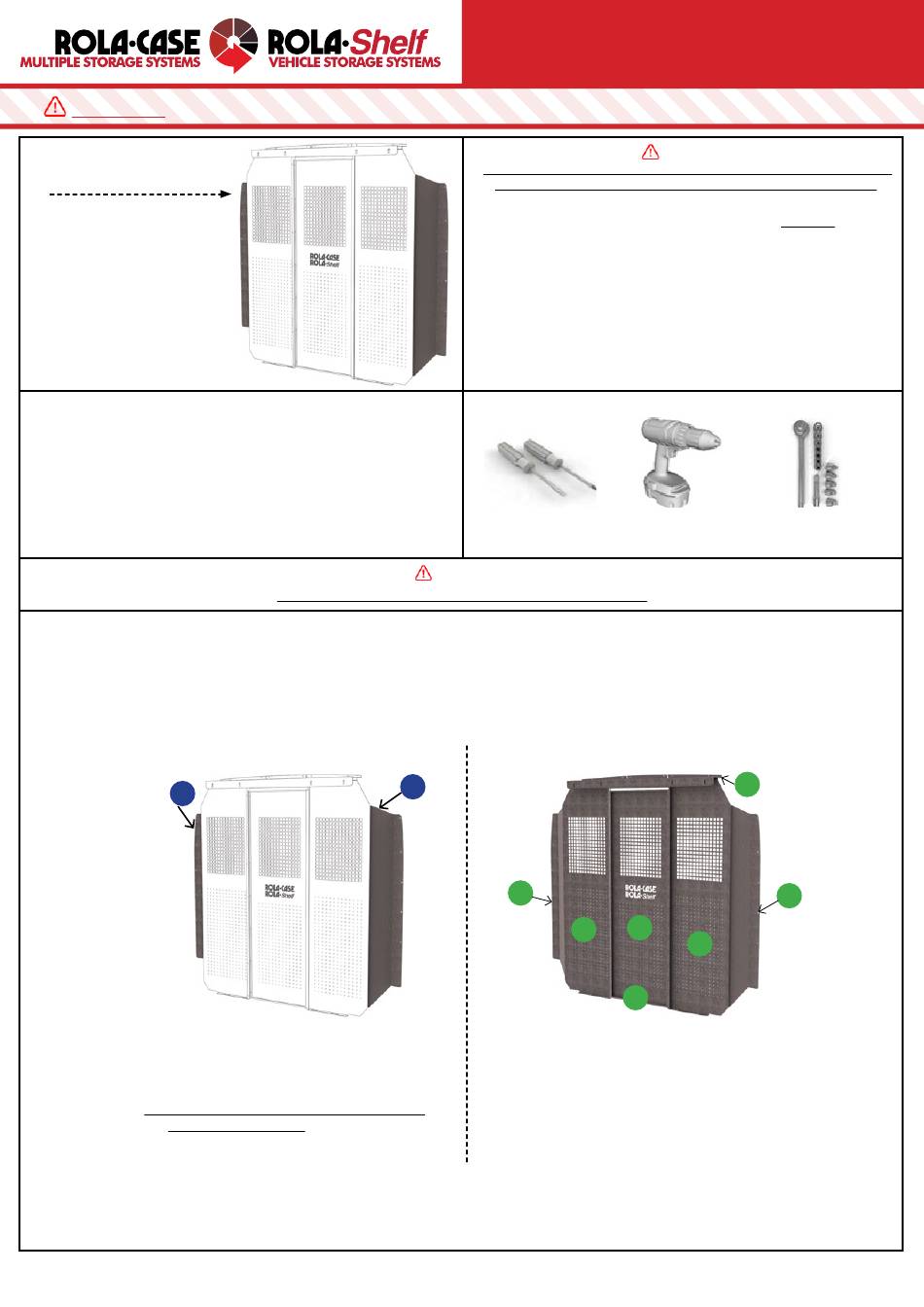

B
A. R/H Standard Deep Setback
B. L/H Standard Deep Setback
USE HARDWARE PROVIDED WITH PARTITION
RSCGBRPM118136159 SOLD SEPARATELY
Part #6 and #7 is simply substituted for this High Roof component using the same hardware and instructions provided in that kit. A recap of the original partition instructions
can be found on the next section.
ALL DESIGN CONCEPTS ARE INTELLECTUAL PROPERTY OF ROLACASE AND ARE NOT TO BE COPIED, DISTRIBUTED OR COMMUNICATED TO UNAUTHORISED PARTIES
IMAGES USED IN THIS GUIDE MAY VARY SLIGHTLY DEPENDING ON YOUR MODEL

DEEP SETBACKS PARTS

FOR TECHNICAL SUPPORT CALL: 1 (857) 334 0300 /
INSTALLATION MANUAL
(RolaCase Ram ProMaster Deep Setbacks)
ANY ALTERATIONS, UNINTENDED OR UNAPPROVED WORK/USE OF THIS PRODUCT COULD CREATE A
HAZARDOUS CONDITION THAT CAN CAUSE DEATH, PERSONAL INJURY OR PROPERTY DAMAGE.

BEFORE YOU BEGIN:

• THE AVERAGE EXPECTED INSTALL TIME FOR THIS PRODUCT IS 15 MINUTES
• READ ALL THE INSTRUCTIONS BEFORE ASSEMBLY & INSTALLATION
• ENSURE YOU HAVE SOME ASSISTANCE FROM A SECOND PERSON TO AVOID VEHICLE
DAMAGE OR ANY PERSONAL INJURY
• BE AWARE ON THE LOCATION OF VEHICLE WIRING, GAS TANKS, GAS LINES, BRAKE
LINES, & ANY OTHER IMPORTANT ITEMS
• ENSURE IT IS SAFE BEFORE DRILLING OR CUTTING ANYWHERE ON THE VEHICLE &
INSTALLING ANY OF OUR PRODUCTS
• CONFIRM YOU HAVE ALL THE NECESSARY PARTS, TOOLS, EQUIPMENT, & TIME
REQUIRED BEFORE COMMENCING

TOOLS REQUIRED:

Screw Drivers
ATTENTION

PARTITION PARTS - SOLD SEPARATELY

A
7
5
NOT VISIBLE can be
seen from cabin side
1. Upper Cross Mount Beam
2. Upper Mid Roof Header Panel
3. Centre Panel
4. R/H side Panel
5. L/H side Panel
E-MAIL: support@usrolacase.com
RSCSBRPM118136159
WARNING
Cordless Drill with
Torque settings
1
3
4
8
6. R/H standard shallow Setback
7. L/H standard shallow Setback
8. Lower Brace
/ WEB: www.rolacase.com
Rachet, sockets,
and/or spanners
6
