ROLA-CASE RSPEP Installation Manual

ATTENTION: PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLING/INSTALLING THIS PRODUCT
INCLUSIONS:
2 RSPEP-TOP HAT
2 PAN PHIL BOLTS
2 SELF TAPPING SCREWS
2 NYLOC NUTS
12 SCREWS
PART No. RSPEP/ - comes in 2 options:

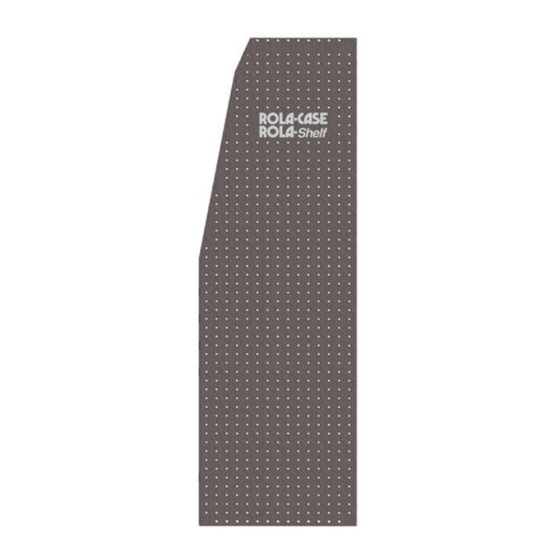

• RSPEP/MDRF/R - Right Mid End Panel
• RSPEP/MDRF/L - Left Mid End Panel
All RolaCase/RolaShelf shelving products are to be used exclusively and in conjunc-
tion with RolaCase and RolaShelf shelving bays only. Failure to do so will cause the
shelving/products to perform in a nonfunctional manner and will void your warranty
The RolaCase Mid Roof End Panel comes in 2 different options:
RSPEP/MDRF/L (MID-LEFT END PANEL)
18.1"
Ideal for Driver's side Rear
ALL DESIGN CONCEPTS ARE INTELLECTUAL PROPERTY OF ROLACASE AND ARE NOT TO BE COPIED, DISTRIBUTED OR COMMUNICATED TO UNAUTHORISED PARTIES
1 RSPEP/MDRF/
Please note:
end panels come
in either a left or
right option
*Ideal for Mid/High Roof Vans
ATTENTION
IMAGES USED IN THIS GUIDE MAY VARY SLIGHTLY DEPENDING ON YOUR MODEL
RSPEP/MDRF/R (MID-RIGHT END PANEL)
56.85"
18.1"
Ideal for Passenger's side Rear
FOR TECHNICAL SUPPORT CALL: 1 (857) 334 0300 /
INSTALLATION MANUAL
RSPEP/MDRF/ (Mid Roof End Panel)
ANY ALTERATIONS, UNINTENDED OR UNAPPROVED WORK/USE OF THIS PRODUCT COULD CREATE A
HAZARDOUS CONDITION THAT CAN CAUSE DEATH, PERSONAL INJURY OR PROPERTY DAMAGE.
BEFORE YOU BEGIN:
• THE AVERAGE EXPECTED INSTALL TIME FOR THIS PRODUCT IS 10 MINUTES
• READ ALL THE INSTRUCTIONS BEFORE ASSEMBLY & INSTALLATION
• ALWAYS WEAR APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT, ESPECIALLY
EYEWEAR WHEN INSTALLING OUR PRODUCTS
• CONFIRM YOU HAVE ALL THE NECESSARY PARTS, TOOLS, EQUIPMENT, & TIME
REQUIRED BEFORE COMMENCING
TOOLS REQUIRED:
Screw Drivers
ATTENTION
REFER TO NEXT PAGE FOR FURTHER
Left and Right
Mid Roof
End Panels
on a Ford Transit
E-MAIL: support@usrolacase.com / WEB: www.rolacase.com
WARNING
Cordless Drill with
Torque settings
INSTRUCTIONS
