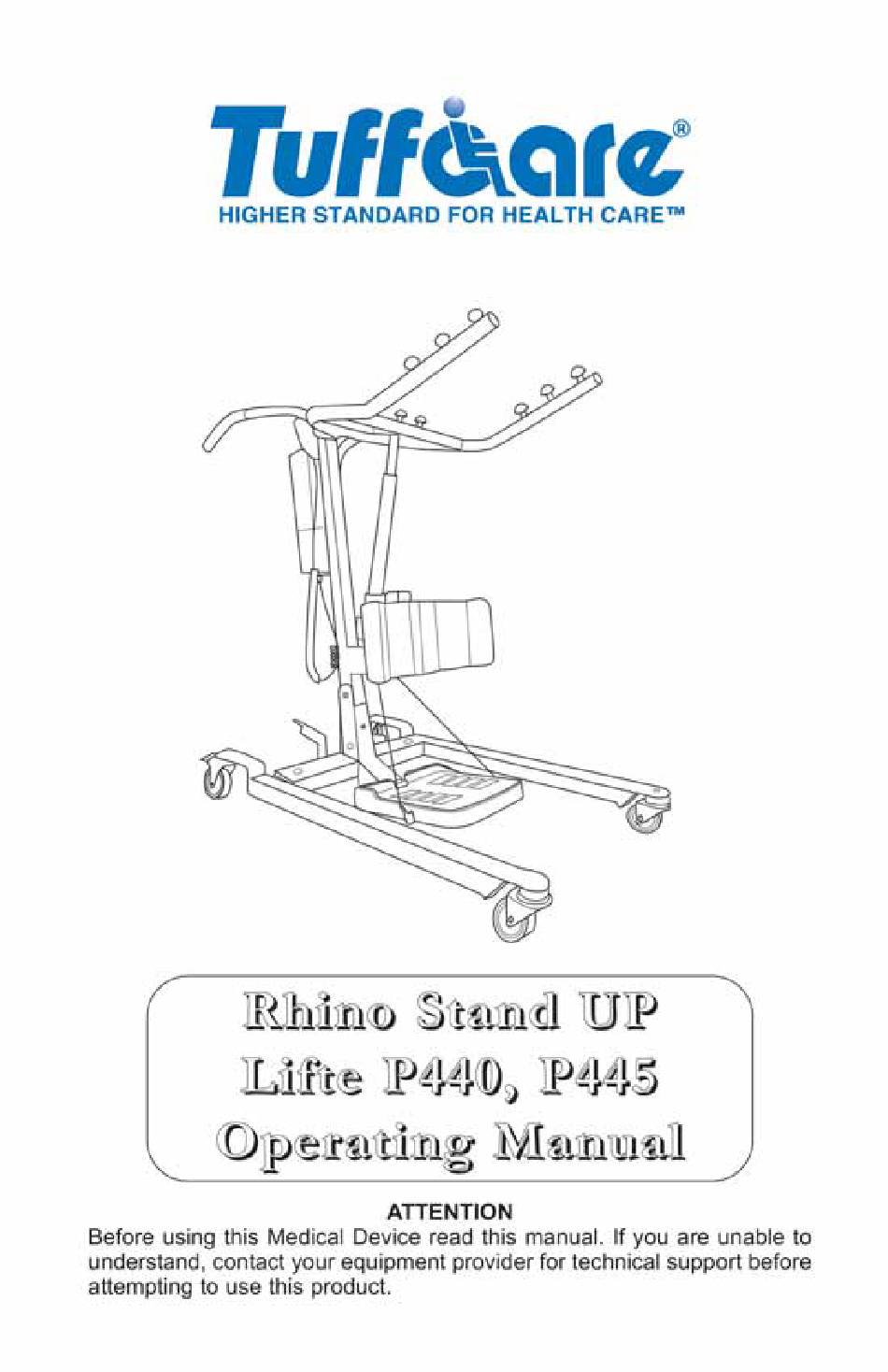

Tuffcare Rhino P440 Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rhino P440 and is the answer not in the manual?

Questions and answers

Related Manuals for Tuffcare Rhino P440

Summary of Contents for Tuffcare Rhino P440

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PRODUCT SPECIFICATION P440/445 RHINO STAND UP PATIENT LIFTER Product Specifications Product Diagram SECTION 1 - General Guidelines Height at Sling Hook-up - MAX.: 70 inches General Guidelines Height at Sling Hook-up - MIN.: 37 inches SECTION 2 - Assembly Base Width OPEN: 32 inches Assembling the Mast Assembly to the Base Base Width CLOSED: 21 inches...

  • Page 3: Product Diagram

    PRODUCT DIAGRAM DANGER! RISK OF ELECTRICAL AND FIRE HAZARD. MAY P440 – SEMI HI-LOW / P445 – FULL HI-LOW WITH LEG RESULT IN DEATH, SERIOUS INJURY, SHOCK OR BURNS. This charger, like all electrical products. MUST be treated with respect. Follow these instructions to reduce electrical hazard risk. TO HELP REDUCE THIS RISK: PROPER GROUNDING OF AC POWER CORD Charger MUST be grounded to reduce risk of electric shock...

  • Page 4: General Guidelines

    Be sure that sling is properly attached on sling holders before the patient is removed from a bed, chair or any objects. The TUFFCARE patient lifter is NOT a transport If the patient is in a wheelchair, secure the wheel locks in place device.

  • Page 5: Section 2 - Assembly

    Doing so could WARNING cause the Use only Tuffcare parts to complete this stand up patient lifter. lifter to tip over and endanger the patient and assistants. TRANSFERRING THE PATIENT ASSEMBLING THE MAST ASSEMBLY Before transferring, check that the lifter’s weight capacity...

  • Page 6: Assembling The Foot Step To The Mast

    ASSEMBLING THE FOOT STEP ADJUSTING THE HEIGHT OF KNEE PAD TO THE MAST Set foot step on the floor. Lifting up connecting cables. Use pin and lock to secure the cables on the bracket on the mast. Check and tighten all hardware BEFORE use. Use both hands, pull both adjustment pins outward at the same time.

  • Page 7: Attaching The Control Unit On Mounting Bracket

    ATTACHING THE BATTERY CASE ON CONTROL UNIT WARNING Make sure there is an audible click when plugging battery case on control unit. Otherwise, injury or damage may occur. Move the lift arm to align the holes in the hi-low Lift up on the handle on the back of HANDLE actuator with the holes in battery case.

  • Page 8: Prepare The Patient Lifter For Use

    PREPARE THE PATIENT LIFT FOR USE SECTION 3 OPERATION Plug the hand control, leg actuator (For P445 Full Electronic Stand-up Lifter Only) and hi-low actuator into the connections on the bottom of the control unit. WARNING attempt to transfer, the user must be DO NOT Check and tighten all hardware BEFORE use.

  • Page 9: Closing/Opening The Legs

    CLOSING/OPENING THE LEGS USING THE EMERGENCY STOP To Open and Close the Legs on P445 RED emergency Press the open and close button on button on Control Unit the hand control. Push the RED emergency button in to stop the lift arms from raising or lowering.

  • Page 10: Charging The Battery

    CHARGING THE BATTERY NOTE: It is suggested to recharge the battery daily to prolong its life cycle. 1. Place the battery on the control unit to charge battery. Push the top of the battery against the mounting bracket until there is an audible click, See more details on pages (15-16) for Attaching the Battery Pack onto the Control Unit.

  • Page 11: Section 4 - Lifting The Patient

    POSITIONING THE STAND UP LIFTER SECTION 4 LIFTING THE PATIENT WARNING The legs of the stand-up lifter be in the MUST maximum open position for stability and safety. WARNING DO NOT exceed the maximum weight limit of 350 lbs. 1 Obtain stability. P445 DO NOT attempt to transfer, the user must be Press the “FOOT”...
  • Page 12 LIFTING THE PATIENT 2 Position the stand up lifter using the handle on the mast. WARNING Handle DO NOT exceed the maximum weight limit of 350 lbs. DO NOT attempt to transfer, the user must be assessed by a qualified professional. Thoroughly read and fully understand the instructions in this Owner’s Manual.
  • Page 13 NOTE: The patient MUST be in a seated position first. Use the Lift arms head section of the bed to get the patient upright then move legs over the side of the bed. Instruct the patient to hold onto Lower Arms for Attachment the lift arms on both sides of the stand up lifter.

  • Page 14: Section 5 - Transferring The Patient

    DO NOT place the patient in the wheelchair if the specifically for use with TUFFCARE stand up lifter. locks are not engaged. The wheelchair wheel locks Otherwise, injury or damage may occur. The legs of MUST be in a locked position before lowering the the stand up lifter MUST be in the maximum open patient into the wheelchair for transport.

  • Page 15: Transferring To A Bed

    Unhook the sling from all WARNING attachment holders on the TUFFCARE recommends locking the rear casters lifter. ONLY when positioning or removing the sling from around the patient. Instruct patient to lift their feet off the footplate. Assist the patient if necessary.

  • Page 16: Section 6 - Maintenance

    If within such warranty period any such product proven to Tuffcare® satisfaction to be defective, such product will be repaired or replaced at Tuffcare® option. Replace any defective parts immediately and •...

This manual is also suitable for:

Rhino p445
