Summary of Contents for ThingsMatrix TMX09
- Page 1 ThingsMatrix: TMX-200225 TMX09 USER MANUAL 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved.
-
Page 2: Table Of Contents
3.4 Periodic Mode ........................10 3.4.1 Introduction ......................10 3.4.2 Configuration Example ..................10 3.5 Storage Mode ........................11 3.5.1 Introduction ......................11 3.5.2 Configuration Example ..................11 3.6 Motion Mode ......................... 11 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! - Page 3 5.4 No optical sensor alert ...................... 15 6 Installation Instructions ........................ 16 6.1 Get Started ..........................16 6.2 SIM Card Installation ......................17 6.3 Device Power Up ......................... 18 6.4 Device Installation ......................18 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right!
-
Page 4: Tmx09 User Manual

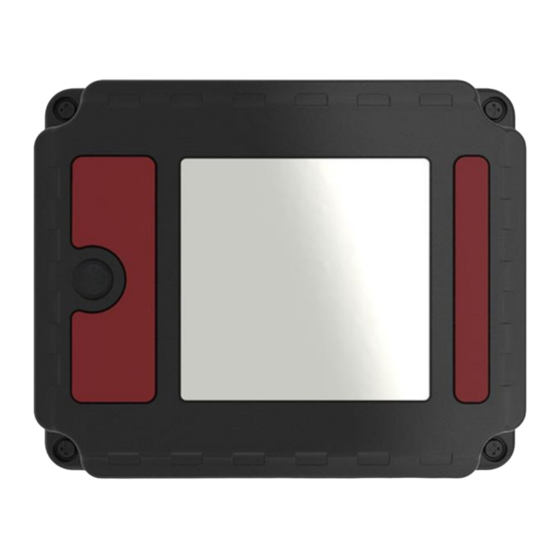

TMX09 device. In this manual, Platform means ThingsMatrix Service Platform. 2. Introduction 2.1 Overview TMX09 is a ruggedized remote monitoring and tracking device that supports 2G (GSM/GPRS/EDGE) connectivity and positioning features. It is waterproof (IP67 rating) with ultra-low power consumption for long battery life. It also has built-in sensors including optical, temperature, and an accelerometer (a magnetic sensor is also available as an option). -
Page 5: Specifications
Humidity 95%RH GPS Antenna Internal Antenna/SIM Cellular Antenna Internal SIM Form Factor SIM (2FF) Pending Certification Pending PTCRB Pending Data Monitoring Supported Device Management Device Configuration Supported Firmware Upgrade Supported 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 6: Main Features And Use Cases
4 wake-up time points, which is used for more accurate positioning and for better connection to the server. Please refer to Chapter 3.7.1 Introduction for more details • The wake-up feature must be set and enabled from the Platform. 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 7: Position Monitor
TMX-200225 2.3.3 Position Monitor The Position Monitor feature is enabled by default, which means the TMX09 will report the location information every 24 hours. The information includes: Position fix technology (LBS/GPS), longitude and latitude, Cellular Signal Strength, number of GPS satellites, battery voltage, Cell ID, etc. All the device information reported is displayed on the Platform. -
Page 8: Optical Sensor
Platform User Guide. 2.3.8 Optical Sensor The TMX09 has a built-in optical sensor. When the device is removed after installation and the sensor is exposed to light, it will be activated immediately and the TMX09 will send a “DEVICE_REMOVED” alarm message to the Platform, together with the current location data. -
Page 9: Working Modes
Table 3 - TMX09 Usage Working Mode Use Case Storage Mode is used when the TMX09 is ready for shipment. It can be stored (like in a Storage warehouse) for long periods of time while saving power. Motion Mode is mostly used for fixed location assets (usually kept static). The report interval Motion needs to be set according to the Motion/Static Mode. -
Page 10: Periodic Mode
In Periodic Mode the device can only report data in fixed intervals. It can be used if there are no specific requirements. 3.4.2 Configuration Example If the device is required to wake up every 10 minutes, Periodic Mode can be configured as follows: 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 11: Storage Mode
Motion Mode is off by default. If it is on, the report interval is configurable from 5 minutes to 43200 minutes (720 hours). When the device wakes up in Motion/Static Mode, it will report the data according to the preset reporting interval. 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 12: Configuration Example
3.7 Schedule Mode 3.7.1 Introduction Schedule Mode can be used when the user requires the device to wake up and report data at one or more preset wake-up times (up to 4). 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 13: Configuration Example
If the device is required to report data at 08:00, 12:30, 16:00 and 20:30 respectively, the user can set the device to Clock Mode (for this example, the device is in the time zone of UTC +08:00). The parameters can be configured as follows: 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 14: Device Data Fields
JSON-formatted data payload. The user can view the data fields in the device's Status and Statistics tabs on the Platform or via the API. The data fields supported by the device are listed in the table below. Table 5 - TMX09 Data Field Definitions Field Definition... -
Page 15: The Device Is Offline
Power switch is in the OFF position – Battery is depleted • Solution – Slide the power switch to the ON position – Replace the battery 5.4 No optical sensor alert • Problem 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 16: Installation Instructions
Please review the following diagram for the different LED combinations. Terminology: Fast blinking: The indicator light flashes 2-3 times in 1s. Slow blinking: The indicator light flashes one times in 5s. 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 17: Sim Card Installation
Close the SIM card cover. Please take note of the ICCID on the SIM card and make sure that the SIM card has an active subscription for the required cellular network. 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right! -
Page 18: Device Power Up
If the device is removed, the optical sensor will be activated immediately. The Platform will display a “DEVICE_REMOVED” alarm along with the current location data. 2021 ThingsMatrix Inc. Confidential Information. All Rights Reserved. Just Right!
