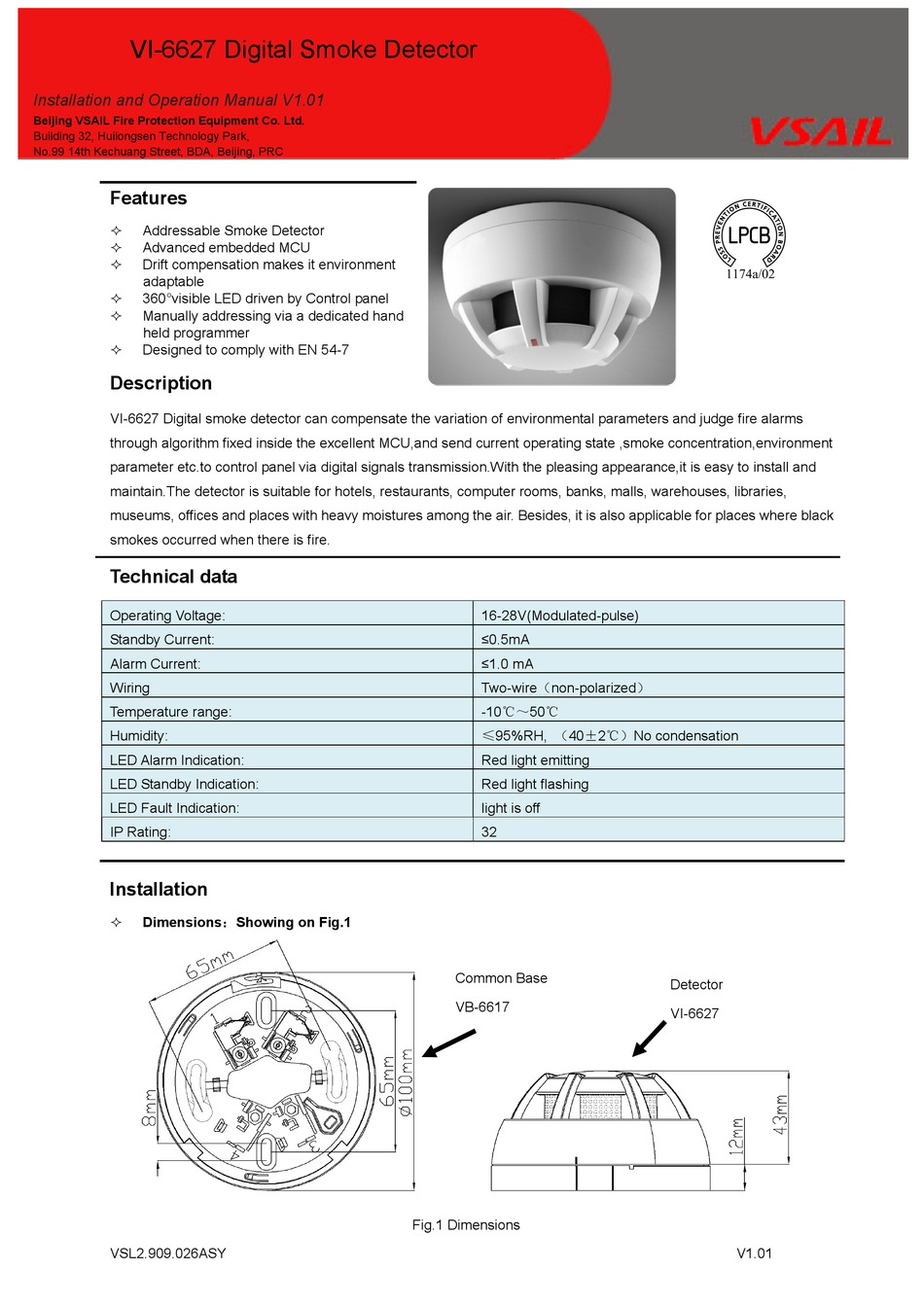

VI-6627 Digital Smoke Detector
Installation and Operation Manual V1.01
Beijing VSAIL Fire Protection Equipment Co. Ltd.
Building 32, Huilongsen Technology Park,
No.99 14th Kechuang Street, BDA, Beijing, PRC
Features
Addressable Smoke Detector
Advanced embedded MCU
Drift compensation makes it environment
adaptable
360°visible LED driven by Control panel
Manually addressing via a dedicated hand
held programmer
Designed to comply with EN 54-7
Description
VI-6627 Digital smoke detector can compensate the variation of environmental parameters and judge fire alarms
through algorithm fixed inside the excellent MCU,and send current operating state ,smoke concentration,environment
parameter etc.to control panel via digital signals transmission.With the pleasing appearance,it is easy to install and
maintain.The detector is suitable for hotels, restaurants, computer rooms, banks, malls, warehouses, libraries,
museums, offices and places with heavy moistures among the air. Besides, it is also applicable for places where black
smokes occurred when there is fire.
Technical data
Operating Voltage:
Standby Current:
Alarm Current:
Wiring
Temperature range:
Humidity:
LED Alarm Indication:
LED Standby Indication:
LED Fault Indication:
IP Rating:
Installation
Dimensions：Showing on Fig.1
VSL2.909.026ASY
16-28V(Modulated-pulse)
≤0.5mA
≤1.0 mA
Two-wire（non-polarized）
-10℃～50℃
≤95%RH, （40±2℃）No condensation
Red light emitting
Red light flashing
light is off
32
Common Base
VB-6617
Fig.1 Dimensions
Detector
VI-6627
V1.01
