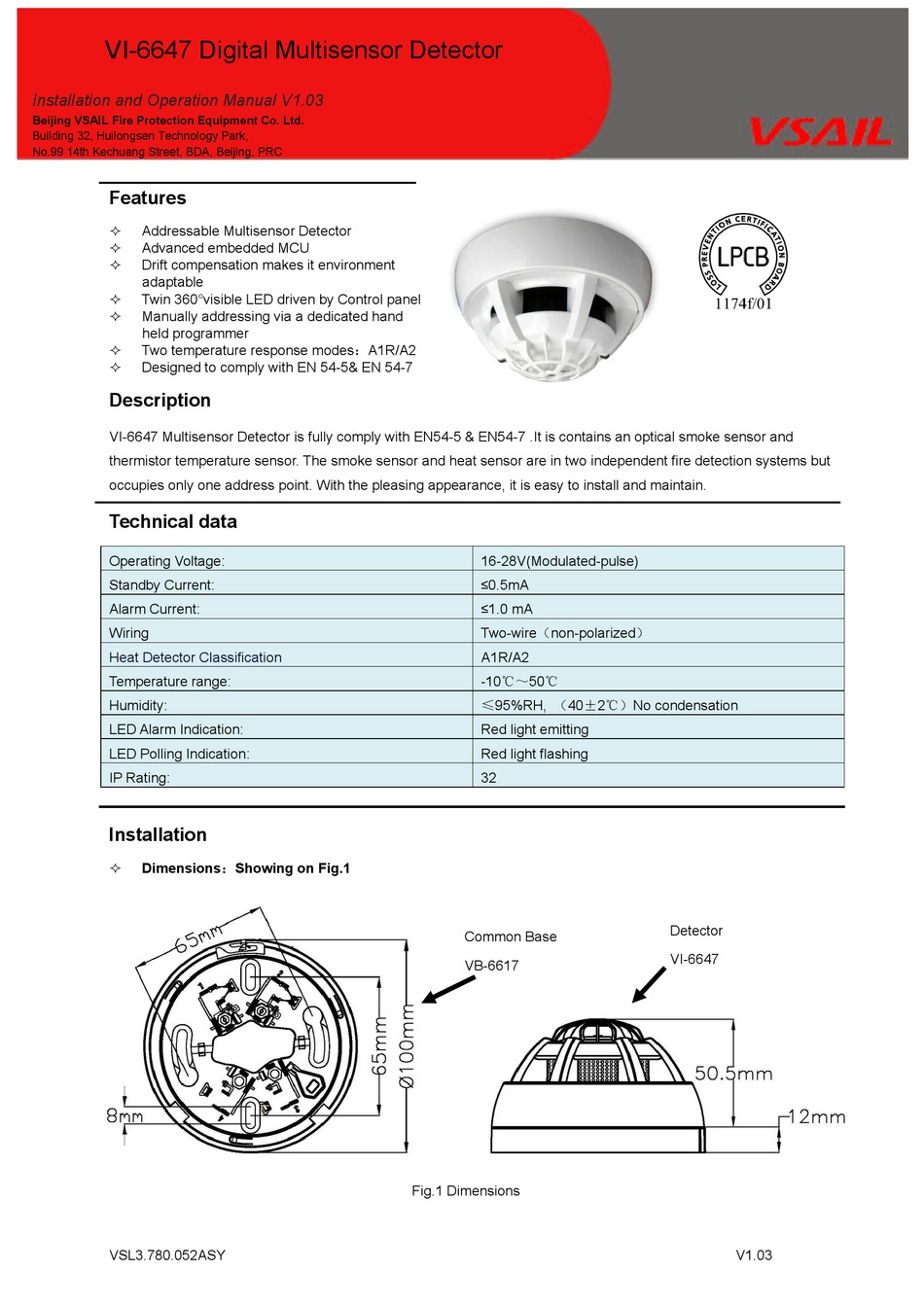

VI-6647 Digital Multisensor Detector
Installation and Operation Manual V1.03
Beijing VSAIL Fire Protection Equipment Co. Ltd.
Building 32, Huilongsen Technology Park,
No.99 14th Kechuang Street, BDA, Beijing, PRC

Features

Addressable Multisensor Detector
Advanced embedded MCU
Drift compensation makes it environment
adaptable
Twin 360°visible LED driven by Control panel
Manually addressing via a dedicated hand
held programmer
Two temperature response modes : A1R/A2
Designed to comply with EN 54-5& EN 54-7

Description

VI-6647 Multisensor Detector is fully comply with EN54-5 & EN54-7 .It is contains an optical smoke sensor and
thermistor temperature sensor. The smoke sensor and heat sensor are in two independent fire detection systems but
occupies only one address point. With the pleasing appearance, it is easy to install and maintain.

Technical data

Operating Voltage:
Standby Current:
Alarm Current:
Wiring
Heat Detector Classification
Temperature range:
Humidity:
LED Alarm Indication:
LED Polling Indication:
IP Rating:

Installation

Dimensions : Showing on Fig.1
VSL3.780.052ASY
16-28V(Modulated-pulse)
≤0.5mA
≤1.0 mA
Two-wire ( non-polarized )
A1R/A2
-10 ℃~ 50 ℃
≤ 95%RH, ( 40 ± 2 ℃) No condensation
Red light emitting
Red light flashing
32
Common Base
VB-6617
Fig.1 Dimensions
Detector
VI-6647
V1.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VI-6647 and is the answer not in the manual?

Questions and answers

Summary of Contents for VSAIL VI-6647

  • Page 1 Designed to comply with EN 54-5& EN 54-7 Description VI-6647 Multisensor Detector is fully comply with EN54-5 & EN54-7 .It is contains an optical smoke sensor and thermistor temperature sensor. The smoke sensor and heat sensor are in two independent fire detection systems but occupies only one address point.
  • Page 2  Mounting: Warning: Please disconnect the loop power in order to avoid control panel broken by short circuit when mounting Common Base. Detector Head Mounting showing in Fig.2 Back Box Locking Mark Alignment Mark Mounting Mark Fig.2 Mounting  Mounting Step 1.
  • Page 3  The VI-6647 heat response mode can be set by Control Panel, please refer to the corresponding manual for details. Testing Warning :...
