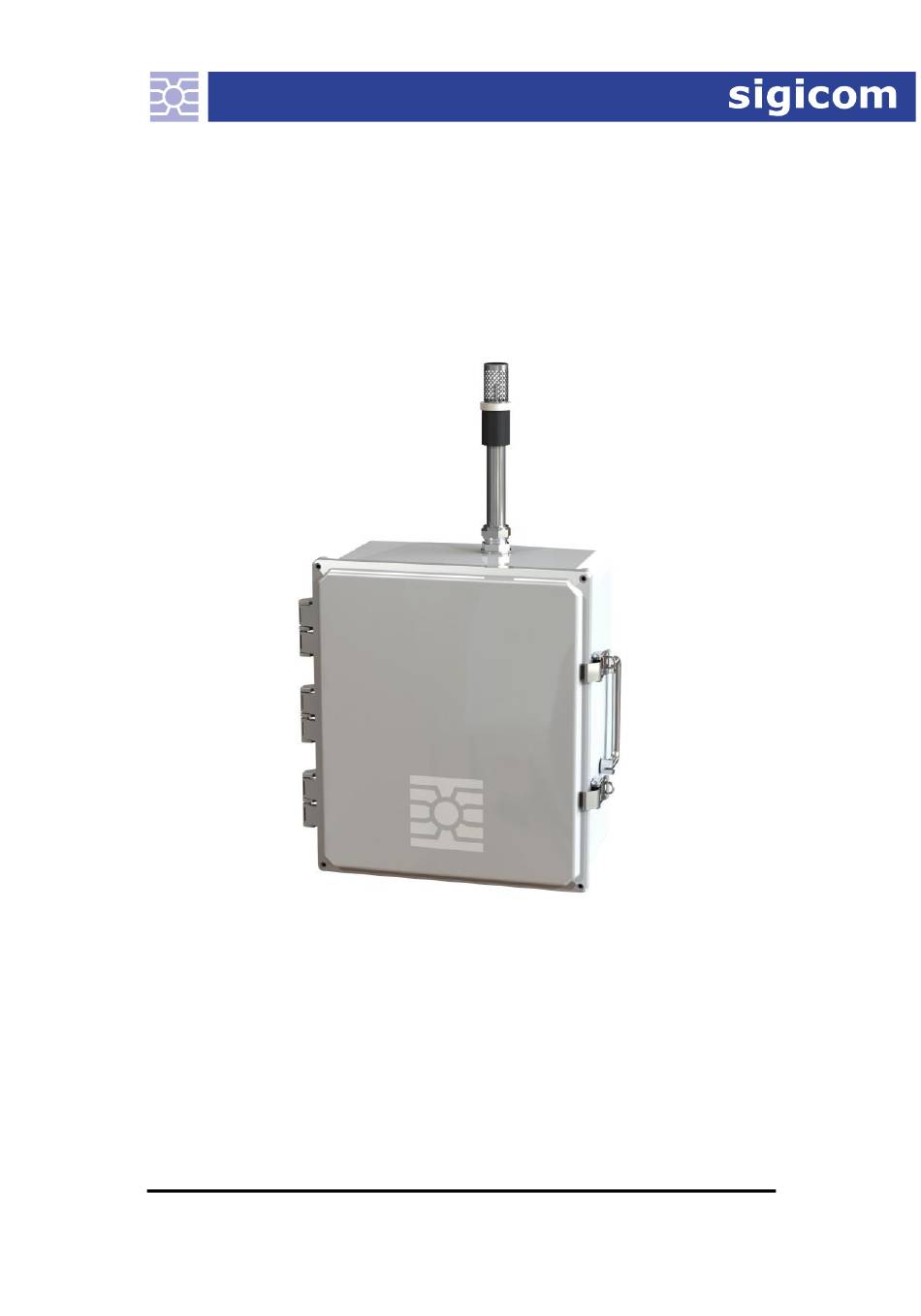

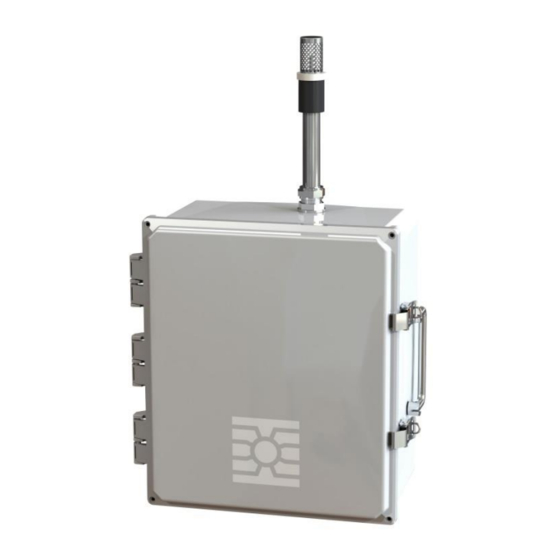

- Page 1 INFRA X20DM2 Dust Monitor Art no. 080-02550-0 Manual ver. D Valid for firmware version 1.1.0 Manual Copyright ©Sigicom AB 2003-2015 Art.no ML089B02550-0En...
- Page 3 Scrapped equipment should be sent back to the manufacturer of the equipment (Sigicom) for proper handling according to the WEEE directive. Sigicom’s partner for recycling of scrapped equipment is Hans Andersson Recycling Stockholm AB, with transport certificate no. 562-1372-2012 (Länsstyrelsen i Stockholms län).
-
Page 4: Table Of Contents
A.2 Range, resolution and accuracy ..........18 A.3 Mechanical data ..............18 A.4 Air flow ................. 19 Appendix B Error handling ............20 Appendix C Example of a Dust concentration monitoring .... 21 Appendix D Product Conformity Certificate ......... 22 Copyright ©Sigicom AB 2003-2015... -
Page 5: Introduction
1 Introduction Welcome to INFRA X20DM2 Dust monitor, which is an integration into Sigicom’s INFRA Field of the Osiris Environmental Monitor Monitoring System. For details regarding Osiris, for example its technology, please read the manual from Turnkey Instruments Ltd. X20DM2 Dust monitor is intended to be used as a unit in your INFRA Field Monitoring System. -
Page 6: Unpacking And Parts Identification
Calibration certificate (Turnkey Instruments Ltd.) Maintenance book (Turnkey Instruments Ltd.) Please report any damage or shortage immediately to Sigicom. Record the instrument’s serial number. You will be asked to give this number in any X20DM2 related communication you may have with Sigicom. -
Page 7: Assembly The External Power Supply
Remove one of the white plastic cylinders, and cut a slit in the bushing on its side towards the hole (from the cylinder). Put the low voltage side of the external power cable in the slit such that its seal fills out the hole. Copyright ©Sigicom AB 2003-2015... - Page 8 Put back the bushing, see the picture above. Connect the plugs inside the cabinet, see the picture below. Copyright ©Sigicom AB 2003-2015...
-
Page 9: General Description
vibration (geophone) in one direction vibration (geophone) in three directions sound level air blast weather (wind, rain, humidity, temperature) etc. The main unit in the INFRA Field Monitoring System Copyright ©Sigicom AB 2003-2015... -
Page 10: Configuration And Operation
Channel 2. PM2.5 Concentration. Channel 3. PM1 Concentration. Channel 4. TSP Concentration (Total Suspended Particle). Each of these channels is the average value measured over the selected Interval time. The unit of each channel is µg/m Copyright ©Sigicom AB 2003-2015... - Page 11 SMS on any of the other channels. 3.1.4 Customer string The customer string consists of four characters, and can be selected by the user. The default string is “DUST“. stored in interval files. Copyright ©Sigicom AB 2003-2015...
-
Page 12: Mounting
Remote Control in the PC-application INFRA Net Manager, or directly by using the Master display and buttons. Note! Each standard has its own parameters (Interval time, Upper threshold level, and Customer string). Activate REG ON, and the measurement will be initiated. Copyright ©Sigicom AB 2003-2015... -
Page 13: Error Checking
Check that the display of Osiris doesn't show anything. Otherwise redo the previous task. Wait at least 5 seconds Put back external power to your X20DM2. Check that the Osiris display wakes up. Otherwise redo the previous task. Start registration (Reg On). Copyright ©Sigicom AB 2003-2015... -
Page 14: Calibration And Maintenance
4 Calibration and Maintenance 4.1 Calibration Recommended calibration interval is 12 months. Please send the X20DM2 cabinet to Sigicom AB for calibration and adjustment. See contact information in section 6. 4.2 Minor maintenance 4.2.1 Flow and filter check The Osiris dust monitor requires a flow and filter check every 3 months. - Page 15 20. Hold the flow meter vertical. Adjust the flow by pressing or until flow meter shows 600 ml/min. 21. When flow rate is correct, press ENTER, and record the change in your log. 22. Remove flow meter and press RESET. Copyright ©Sigicom AB 2003-2015...
- Page 16 Replace the filter holder. Make sure the small O-ring is aligned with the exhaust tube in the base before refitting the filter cap. To do this, the small O-ring should be to the rear when the filter cap is refitted. Note! Do not overtighten. Copyright ©Sigicom AB 2003-2015...
-
Page 17: Repair
4.3 Repair If sent to repair (to Sigicom), please carefully write down the description of the problem. Here it is important to keep the cabinet as it is, and send it in as one unit. It is also recommended to contact Sigicom before sending the unit. -
Page 18: Accessories
Sensor cable 15m (49 ft), art.no 080-01115-0 Sensor cable 40m (131ft), art.no 080-01140-0 Sensor cables in other lengths on special order, please contact Sigicom AB. Self-vulcanizing tape, art.no 080-01892-0 Cable winder (max. 50m), art.no 080-01200-0 ... -
Page 19: Contact And Support
6 Contact and support Address Sigicom AB Alfred Nobels Allé 214 SE-146 48 Tullinge Phone +46 8 44 99 770 Internet www.sigicom.com E-mail support@sigicom.se Copyright ©Sigicom AB 2003-2015... -
Page 20: Appendix A Product Data
Technical data may be subject to change without notice. A.3 Mechanical data Size 61 x 32 x 19 cm (24 x 13 x 7.5 in) Housing protection class IP 67 Total weight (incl. hardware for mounting) 10 kg (22 lbs) Copyright ©Sigicom AB 2003-2015... -
Page 21: Air Flow
A.4 Air flow Flow rate 600 cm /min Copyright ©Sigicom AB 2003-2015... -
Page 22: Appendix B Error Handling
The dust monitor has stopped its sampling Low battery error in the dust monitor To recover from a “Node lost”-error, try to make a “Forced reboot” of the Datalogger (can be made from INFRA Net Manager). Copyright ©Sigicom AB 2003-2015... -
Page 23: Appendix C Example Of A Dust Concentration Monitoring
Appendix C Example of a Dust concentration monitoring The figure below shows monitored dust concentrations taken just outside Sigicom’s office in Tullinge, Sweden. Copyright ©Sigicom AB 2003-2015... -
Page 24: Appendix D Product Conformity Certificate
MCERTS Performance Standards for Indicative Ambient Particulate Monitors, Version 2, dated July 2012 Certification Range: 0 to 100 µg/m Project No: 674/0356A Certificate No: Sira MC090 157/04 Copyright ©Sigicom AB 2003-2015...
