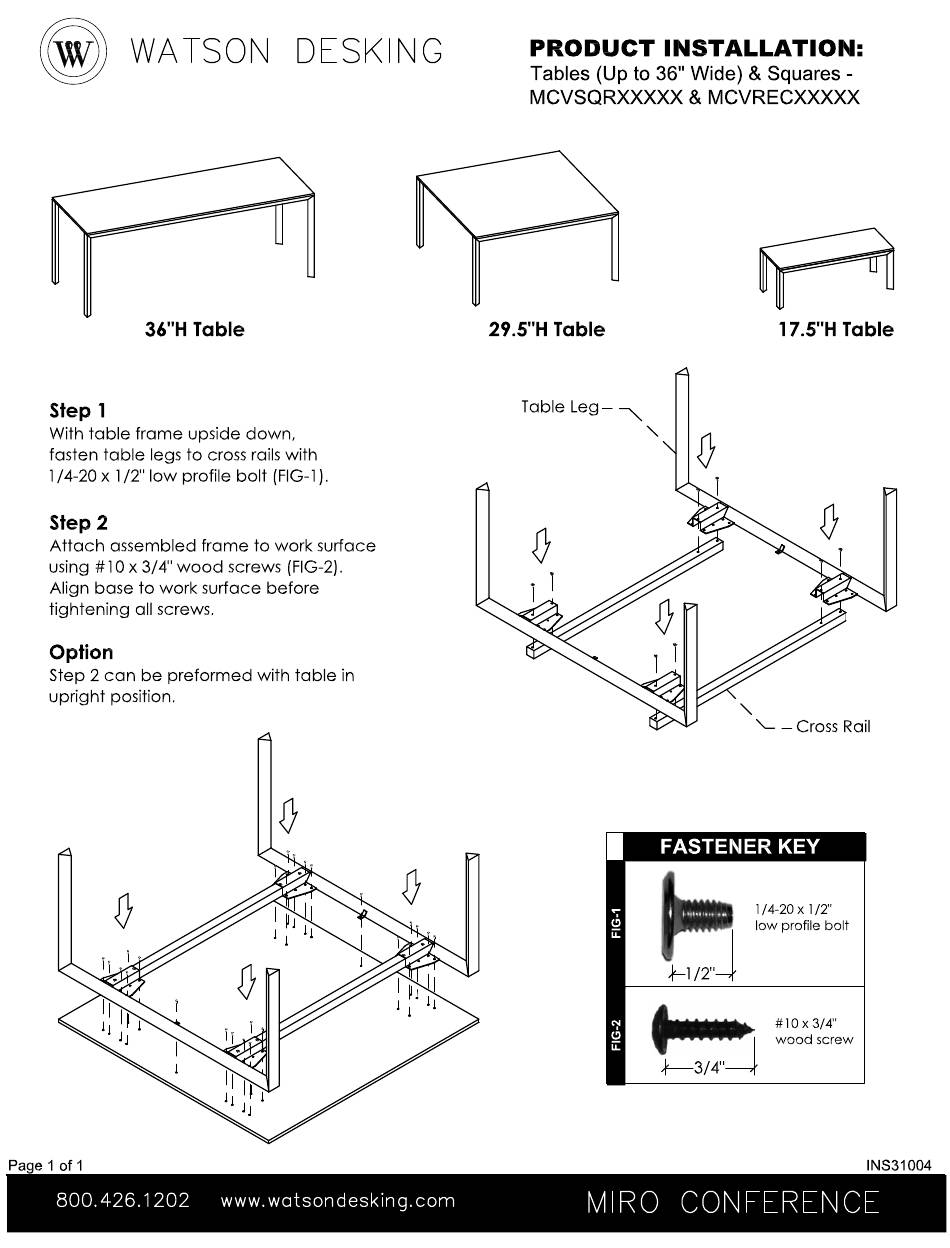

- Page 2 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX Step 1 - For 10' and 12' tables Assemble 2 Viga legs by sliding triangular Viga spanner tube and square support tube into Viga corner legs. Step 2...
- Page 3 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX Step 3 - for all tables On one Viga leg, insert both cross rails into brackets. Viga leg Viga leg cross rail 1/4-20 x 1/2" low profile bolt Step 4 Fasten using 1/4-20 x 1/2"...
- Page 4 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX cross rail bracket Step 5 With a partner, flip partially assembled frame over and insert cross rails into brackets on opposing Viga leg. Viga leg partially assembled...
- Page 5 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX support tubes cross rail bracket Step 7 Insert support tubes into cross rail brackets. 1/4-20 x 1/2" low profile bolt Step 8 Fasten support tubes to cross rail brackets using 1/4-20 x 1/2"...
- Page 6 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX Step 9 - for seamed tables Place one half of table top on table surface to assembled frame. assembled frame Step 10 Align table top with assembled...
- Page 7 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX Step 12 - for seamed tables Place other half of table top on to frame and mate to first half. Step 13 - for seamed tables Lock table top halves together with flip bolts (FIG-3).
- Page 8 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX Step 14 Align entire table top to frame making sure all top to leg relationships are the same. Visually align table top to assembled frame Step 15 Fasten table top to assembled frame using #10 x 3/4"...
- Page 9 PRODUCT INSTALLATION: WATSON DESKING 48"W & 60"W Conference Tables - MCVREC48XX, MCVREC60XX, MCVREPXXXXX Step 16 - for 10' and 12' tables Tilt and slide center leg into place. A partner may be used to slightly lift one end of table to aid in installation of center leg.
