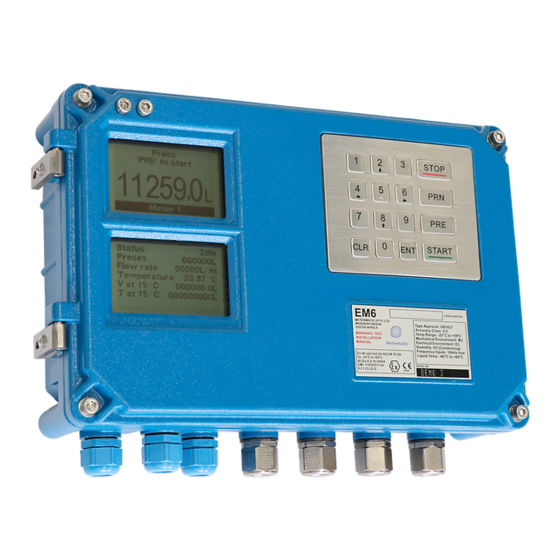

Metermatic EM6 Configuration Manual

Electronic calculator
Hide thumbs Also See for EM6:
Table of Contents

Advertisement

Quick Links

Download this manual
EM6 Electronic
Calculator
Configuration Manual
EM6-STG01-0101-00-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM6 and is the answer not in the manual?

Questions and answers

Related Manuals for Metermatic EM6

Summary of Contents for Metermatic EM6

  • Page 1 EM6 Electronic Calculator Configuration Manual EM6-STG01-0101-00-E...

  • Page 2: Table Of Contents

    EM6 Configuration Manual Table of Contents Glossary ------------------------------------------------------------------------------------- 7 How to use this manual ------------------------------------------------------------------- 8 Metrological Parameters ------------------------------------------------------------------ 9 Navigating through the setup menu ---------------------------------------------------- 11 How to use an error table ---------------------------------------------------------------- 12 Tables --------------------------------------------------------------------------------------- 13 6.1. Table 1: System Data-Error ------------------------------------------------------- 13 6.2.
  • Page 3 EM6 Configuration Manual 10.1.5.1 Date ----------------------------------------------------------------------- 28 10.1.5.2 Time ---------------------------------------------------------------------- 28 10.2. Volume Accuracy Directory ------------------------------------------------------ 29 10.2.1 Decimal Points ---------------------------------------------------------------- 29 10.2.2 Volume Units------------------------------------------------------------------ 29 10.2.3 Minimum volume ------------------------------------------------------------- 29 10.2.4 Maximum volume ------------------------------------------------------------ 29 10.3. Preset directory ---------------------------------------------------------------------- 30 10.3.1...
  • Page 4 EM6 Configuration Manual 10.5.8.1.1.5 Server IP --------------------------------------------------------- 43 10.5.8.1.1.6 Server port ------------------------------------------------------- 43 10.5.8.2 SMS setup --------------------------------------------------------------- 44 10.5.8.2.1 Profile 1- 5 ------------------------------------------------------------ 44 10.5.8.2.1.1 Mobile number -------------------------------------------------- 44 10.5.8.2.1.2 SMS printout ---------------------------------------------------- 44 10.5.8.3 Email setup -------------------------------------------------------------- 45 10.5.8.3.1.1 Enable ------------------------------------------------------------ 45 10.5.8.3.1.2 Profile 1- 5 ------------------------------------------------------- 45...
  • Page 5 Software checksum ----------------------------------------------------------- 57 10.8.3 W & M checksum ------------------------------------------------------------ 57 10.8.4 W & M events ----------------------------------------------------------------- 57 10.8.5 EM6 pin outs ------------------------------------------------------------------ 58 10.8.6 EM6 test points --------------------------------------------------------------- 58 10.8.7 EM6 fuses ---------------------------------------------------------------------- 58 10.8.8 View setup --------------------------------------------------------------------- 58 Meter Setup Directory ---------------------------------------------------------------- 59 11.1.
  • Page 6 EM6 Configuration Manual 11.4.1.4 Offset --------------------------------------------------------------------- 70 11.4.1.5 Expansion coefficient -------------------------------------------------- 70 11.5. Products ------------------------------------------------------------------------------ 71 11.5.1 Number of Products ---------------------------------------------------------- 71 11.5.2 Pulse rate ----------------------------------------------------------------------- 71 11.5.3 Product ------------------------------------------------------------------------- 71 11.5.3.1 Select product ----------------------------------------------------------- 71 11.5.3.2 Product Name ----------------------------------------------------------- 72 11.5.3.3...

  • Page 7: Glossary

    EM6 Configuration Manual 1. Glossary Uncompensated Volume: Gross volume Compensated Volume: Gross volume at standard temperature Human Interface Controller: The controller that monitors and controls the product controllers as well as interface to the operator via the keypad and display. The load information is also stored in the human- interface-controller.

  • Page 8: How To Use This Manual

    EM6 Configuration Manual 2. How to use this Manual Each field that is described in this manual has three mandatory descriptions: a) Access: Level-w b) Hidden: Reason for the menu item to be hidden c) Default: x units yyy – zzz...

  • Page 9: Metrological Parameters

    EM6 Configuration Manual 3. Metrological Parameters The metrological parameters are altered via the menu using access level-2 (see ‘ Page | 9 Revision 1.0 Author: R.Tandy July 18...
  • Page 10 EM6 Configuration Manual How to use this Manual’). To change these parameters, the seal must be broken and the CF-button must be pressed. The menu state will change from view to edit. The menu state can be viewed in the bottom right corner of the display.

  • Page 11: Navigating Through The Setup Menu

    EM6 Configuration Manual 4. Navigating through the Setup Menu ‘Enter’ / ‘→’: Selects the item. (Moves up one level in the menu-tree) ‘CLR’ / ‘← : Exit the current menu. (Move down one level in the menu-tree) ‘↑’ : Move cursor up ‘↓’...

  • Page 12: How To Use An Error Table

    EM6 Configuration Manual 5. How to use an Error Table Decimal Hexadecimal Error Code Code Description Error code 1 Error code 2 Error code 3 Error code 4 Error code 5 Error code 6 Error code 7 Error code 8 There may be multiple errors, in which case, the error code may be a combination of the codes above.

  • Page 13: Tables

    EM6 Configuration Manual 6. Tables See Section on ‘How to use an Error Table’ 6.1. Table 1: System Data-Error This table indicates where a data corruption error has occurred on the human- interface-controller. Decimal Hexadecimal Error Error Code Error Code...
  • Page 14 EM6 Configuration Manual Depot Configuration 6.4. Figure 5: Two stage and Digital control valve Page | 14 Revision 1.0 Author: R.Tandy July 18...

  • Page 15: No Flow (16)

    EM6 Configuration Manual Error Codes and Description’ Decimal Hexadecimal Error Error Code Error Code Description 000001 Power failure 000002 Reset 000004 000008 Pulsar count discrepancy 000010 No flow 000020 Minimum flow 000040 Meter direction 000080 Stop button 000100 Communication error...
  • Page 16 EM6 Configuration Manual 6.5. Table 4: Load Errors This table indicates the errors / events that have occurred on the load. Decimal Hexadecimal Error Error Code Error Code Description Power Failure Reset Reset to factory defaults Permissive 1 error Permissive 2 error...
  • Page 17 EM6 Configuration Manual 6.6. Table 6: Valve Outputs For Product Controller 1 Connector-J2 Connector-J2 Connector-J2 Pin – 4 Pin - 3 Pin - 5 Upstream Downstream Pump solenoid (N.O) solenoid (N.C) For Product Controller 2 Connector-J2 Connector-J2 Connector-J2 Pin - 7...
  • Page 18 EM6 Configuration Manual 6.8. Table 7: Temperature Errors This table indicates the errors that may be displayed in the temperature, pressure and density field when certain conditions arise. (The table is just a guide) Displayed Error Error Description Description Unstabl...

  • Page 19: Figures

    EM6 Configuration Manual 7. Figures Depot Configuration 7.1. Figure 5: Two stage and Digital control valve Page | 19 Revision 1.0 Author: R.Tandy July 18...

  • Page 20: Error Codes And Description

    EM6 Configuration Manual 8. Error Codes and Description The error codes of the tickets / product-controller are included in this manual because most (not all!) errors are as a result of the configuration. Please see ‘Table 3: Ticket / Product Controller Errors’ for the error codes.
  • Page 21 EM6 Configuration Manual Minimum Time’ If the flow rate is too low during the transaction, this error will occur and the transaction will terminate. Page | 21 Revision 1.0 Author: R.Tandy July 18...

  • Page 22: Meter Direction (64)

    EM6 Configuration Manual 8.6. Meter Direction (64) Time that error can occur : During delivery 8.7. Stop Button (128) Time that error can occur : During delivery During a delivery, if the emergency stop button is pressed or the human- interface controller stops the product controller’s flow, this error will occur...
  • Page 23 EM6 Configuration Manual Pulse Delay’ If unauthorized flow occurs, this error will occur. Page | 23 Revision 1.0 Author: R.Tandy July 18...

  • Page 24: Permissive Error (16384)

    EM6 Configuration Manual 8.12. Permissive Error (16384) Time that error can occur : During delivery Configuration setting(s) : ‘Error! Reference source not found.’ If an input is set as a general permissive and the permissive is dropped during a delivery, this error will occur and the transaction will terminate.

  • Page 25: Compensated Totalizer Has Been Manually Changed (4194304)

    EM6 Configuration Manual 8.17. Compensated Totalizer has been manually changed (4194304) Time that error can occur : Meter in setup mode If the compensated totalizer is altered, a ticket with this error will be created. 8.18. Eprom write error (16777216) During the saving of the transaction data an error occurred.

  • Page 26: Using The Editor

    EM6 Configuration Manual 9. Using the Editor The editor has 4 modes of operation depending on the information to be edited. In all modes of operation the following applies: Pressing ‘CLR’ once will clear the last digit entered. Pressing ‘CLR’ twice will clear the whole line.

  • Page 27: System Directory

    EM6 Configuration Manual 10. System Directory The system directory includes the parameters that are independent of the product controllers. 10.1. General Purpose Directory Access: Level-1 10.1.1 Input Timeout Access: Level-2 Hidden: None Default: 60 seconds 2 – 999 Range: Enter the editor timeout.

  • Page 28: Technical Pin

    EM6 Configuration Manual 10.1.4 Technical PIN Access: Level-2 Hidden: None Default: 9999 0 – 9999 Range: Enter the Technical PIN number. This PIN number is a higher security access code that allows modification to level 2 menus. The PIN number cannot be viewed when the operator has entered the menu with a level-1 access PIN number.

  • Page 29: Volume Accuracy Directory

    EM6 Configuration Manual 10.2. Volume Accuracy Directory Access: Level-2 10.2.1 Decimal Points Access: Level-2 Hidden: None Default: 0 decimal points 0 – 2 Range: Enter the number of decimal points that the uncompensated and compensated volumes display. The decimal points are shown in all printouts and view screens.

  • Page 30: Preset Directory

    Default: Disable Options: Enable Disable Enable or disable pre-set delivery to compensated volume. When compensated mode delivery is enabled, the EM6 will deliver according to the compensated volume and not the uncompensated volume. 10.3.2 Preset Operation Access: Level-2 Hidden: None...

  • Page 31: Temperature And Density Directory

    EM6 Configuration Manual 10.4. Temperature and Density Directory Access: Level-2 10.4.1 Show Compensated Access: Level-2 Hidden: None Default: Disable Options: Enable Disable Enable or disable display of compensated volumes. Enable to allow the operator to view the compensated volume on the display.

  • Page 32: Print Compensated

    EM6 Configuration Manual Table 7: Temperature Errors’). Disable to prevent the operator the view the compensated volume on the display. 10.4.2 Print Compensated Access: Level-2 Hidden: None Default: Disable Options: Enable Disable Enable or disable Print-compensated volume. Enable to allow the operator to view the compensated volume on the printouts.
  • Page 33 EM6 Configuration Manual Table 7: Temperature Errors’). Disable to prevent the operator the view the compensated volume on the printouts. Page | 33 Revision 1.0 Author: R.Tandy July 18...

  • Page 34: Communication Directory

    Hidden: None Default: 1 Range: 1 - 255 Communication node address of EM6 to identify it on a data communication network. Node address is to be configured to correspond to the SSAM or TMS node number 10.5.3 Depot Number Access: Level-2 Hidden: None Default: ‘-------‘...

  • Page 35: Prompts

    This field provides additional information for the load, i.e. driver number, load number etc. If the EM6 is configured to use Driver PIN numbers this prompt will be used to capture the Driver number. 10.5.4.1.2...

  • Page 36: Hide Prompt Input

    Range: 18 characters Enter general prompt 2. See general prompt 1 for description. If the EM6 is configured to use Driver PIN numbers this prompt will be used to capture the PIN code. 10.5.4.3 General Prompt 3 Access: Level-2 Hidden: None Default: ‘’...

  • Page 37: General Prompt

    EM6 Configuration Manual 10.5.4.5 General Prompt 5 Access: Level-2 Hidden: None Default: ‘’ Range: 18 characters Enter Prompt 5. See general prompt 1 for description. 10.5.4.6 Meter Prompt 1 Access: Level-2 Hidden: None Default: ‘’ Range: 18 characters Enter meter prompt 1.

  • Page 38: Printer Setup

    EM6 Configuration Manual 10.5.5 Printer Setup Access: Level-2 10.5.5.1 Printer Type Access: Level-2 Hidden: None Default: None Options: None Epson TM-220 Epson TM-U295 Blaster Select the printer type. 10.5.5.2 Auto Print Access: Level-2 Hidden: If ‘Printer Type’ is set to none...

  • Page 39: Line Delay

    0 sec to 1.0 sec Printer waits the line delay time after each line printed. This can be used if the printer connected to the EM6 has a small internal buffer and feedback is not available from the printer. 10.5.6 Port 1 Setup Access: Level-2 10.5.6.1 Protocol...

  • Page 40: Parity

    EM6 Configuration Manual 10.5.6.3 Parity Access: Level-2 Hidden: None Default: None Options: None Even Enable parity for port 1. 10.5.7 Port 2 Setup Access: Level-2 10.5.7.1 Protocol Access: Level-2 Hidden: None Default: Modbus Options: Modbus SLIP Printer Select the communication protocol for port 2 10.5.7.2 Baud Rate...

  • Page 41: Parity

    EM6 Configuration Manual 10.5.7.3 Parity Access: Level-2 Hidden: None Default: 9600 bps Options: None Even Enable parity for port 2. Page | 41 Revision 1.0 Author: R.Tandy July 18...

  • Page 42: Gsm

    EM6 Configuration Manual 10.5.8 GSM 10.5.8.1 Socket Setup 10.5.8.1.1.1 Enable Access: Level-2 Hidden: None Default: Disable Options: Disable Enable Enable or disable data connection. 10.5.8.1.1.2 APN Name Access: Level-2 Hidden: None Default: Configure APN (Access Point Name) name for data connection.

  • Page 43: Server Ip

    EM6 Configuration Manual 10.5.8.1.1.5 Server IP Access: Level-2 Hidden: None Default: 0 If there is a server to connect to, enter the IP address here. 10.5.8.1.1.6 Server Port Access: Level-2 Hidden: None Default: 0 If there is a server port to connect to, enter it here.

  • Page 44: Sms Setup

    EM6 Configuration Manual 10.5.8.2 SMS setup 10.5.8.2.1 Profile 1- 5 10.5.8.2.1.1 Mobile Number Access: Level-2 Hidden: None Default: Enter the mobile number in the format of +27797073652 for each profile. 10.5.8.2.1.2 SMS Printout Access: Level-2 Hidden: None Default: Disable Options: Disable...

  • Page 45: Email Setup

    EM6 Configuration Manual 10.5.8.3 Email setup 10.5.8.3.1.1 Enable Access: Level-2 Hidden: None Default: Disable Options: Disable Enable Enable or disable ability to send printouts by email. Ensure the socket is enabled and configured correctly to ensure a data connection is available.

  • Page 46: Sender Address

    EM6 Configuration Manual 10.5.8.3.2.1 Sender Address Access: Level-2 Hidden: None Default: Configure the sender email address. 10.5.8.3.2.2 Username Access: Level-2 Hidden: None Default: Configure the email account username. 10.5.8.3.2.3 Password Access: Level-2 Hidden: None Default: Configure the email account password.

  • Page 47: Driver Pin

    EM6 Configuration Manual 10.5.9 Driver PIN Driver number, name and PIN number can be setup to allow the EM6 to operate in standalone mode. When enabled prompt 1 must be configured to 10.5.9.1 Enable Access: Level-2 Hidden: None Default: Disable...

  • Page 48: Driver Name

    EM6 Configuration Manual 10.5.9.2.1.3 Driver Name Access: Level-2 Hidden: Driver PIN disabled Default: Driver X Range: 9 characters Select unique driver name to identify driver. Do not use default driver name of Driver X. X is sequentially assigned from 1 to 50.

  • Page 49: Input And Output

    EM6 Configuration Manual 10.6. Input and Output Access: Level-2 10.6.1 Input 1 - 6 10.6.1.1 Function Hidden: None Default: None Range: None General - permissive 1 General - permissive 2 General - deadman Meter - permissive Meter - remote start Meter - deadman Meter –...

  • Page 50: Name

    EM6 Configuration Manual Meter – flow rate select: when the meter is configured for digital valve control two fast flow rates are available. When the input is present the second flow rate is selected. Meter – pause: Input used to pause the delivery.

  • Page 51: Deadman Make Timeout

    EM6 Configuration Manual 10.6.2.1 Deadman Make \Timeout Hidden: Hidden if input is not set to deadman Default: 2 2 – 250 Range: As per deadman break timeout Page | 51 Revision 1.0 Author: R.Tandy July 18...

  • Page 52: Diagnostics

    EM6 Configuration Manual 10.7. Diagnostics Access: Level-1 10.7.1 Clear Settings, Loads Access: Level-2 Hidden: None Default: Not applicable Range: Not applicable Select ‘Proceed’ to Clear the memory and reset the parameters to default value. 10.7.2 Memory Status Access: Level-1 Hidden: None...

  • Page 53: Can Bus

    Not applicable There are 8 error counters, 1 transmit counter and 1 receive counter per can bus. There are two can buses, one internal to the EM6 and one external bus that can be connected to peripheral devices. When a can bus error occurs, the relevant error counter is incremented by one.

  • Page 54: Dallas Tag Test

    12 digit tag identification number will be displayed 10.7.8 Eprom Test Access: Level-1 Eprom test shows three EEPOM devices utilised by the EM6. Each device will show it’s make and capacity if correctly connected but will show FAIL if incorrectly connected Page | 54 Revision 1.0...

  • Page 55: Inputs

    EM6 Configuration Manual 10.7.9 Inputs 10.7.9.1 Inputs 1 Access: Level-1 Hidden: None Displays “0” if no input is connected and displays “1” if input is connected. 10.7.9.2 Inputs 2 See input 1. 10.7.9.3 Inputs 3 See input 1. 10.7.9.4 Inputs 4 See input 1.

  • Page 56: Gps Status

    EM6 Configuration Manual 10.7.9.2 GPS status Access: Level-1 Hidden: None 10.7.9.3 Status Access: Level-1 Hidden: None Shows connected if the REF-400 GPS sensor is connected and disconnected if the GPS sensor is not connected. 10.7.9.4 Coordinates Access: Level-1 Hidden: Hidden if REF-400 sensor is not connected Shows the GPS coordinates of the REF-400 sensor if fitted.

  • Page 57: Read Only

    Access: Level-1 10.8.1 Version Access: Level-1 Hidden: None Default: Not applicable Range: Not applicable Displays the EM6 software version number 10.8.2 Software Checksum Access: Level-1 Hidden: None Default: Not applicable Range: Not applicable Displays the checksum of the electronic calculator code.

  • Page 58: Em6 Pin Outs

    EM6 Configuration Manual 10.8.5 EM6 Pin Outs Access: Level-1 Hidden: None Default: Not applicable Range: Not applicable The electronic calculators pin descriptions are given for the all the external connections 10.8.6 EM6 Test Points Access: Level-1 Hidden: None Default: Not applicable...

  • Page 59: Meter Setup Directory

    EM6 Configuration Manual 11. Meter Setup Directory The meter setup directory includes the parameters that are independent of the human-interface-controller. If a communication failure occurs while the operator is busy in this directory, the system will close this directory automatically 11.1.

  • Page 60: Error Hold

    EM6 Configuration Manual 11.1.3 Error Hold Access: Level-2 Hidden: None Default: 0 0 – 2147483647 Range: See ‘Table 3: Ticket / Product Controller Errors’ If an error code is set in the error hold register, the error will not be reset until the operator clears the errors in the ‘diagnostics - clear alarms’...

  • Page 61: Pulse Delay

    EM6 Configuration Manual 11.1.5 Pulse Delay Access: Level-2 Hidden: None Default: 10 seconds 1 – 255 Range: Enter the Pulse Delay to determine the minimum speed at which the pulser must count to initiate a meter creep. After a pulse, a timer starts. If the next pulse occurs before the timer reaches Pulse Delay time, the minimum speed criterion is met and the pulse can be counted.

  • Page 62: Flow Control

    EM6 Configuration Manual 11.2. Flow Control Access: Level-2 11.2.1 Valve Type Access: Level-2 Hidden: None Default: 2 stage Options: 2 stage Digital control valve Select the valve operation to match the installed valve operation. 11.2.2 Meter Direction Access: Level-2 Hidden: None...

  • Page 63: Minimum Time

    Set the reverse flow volume If the meter direction is set to clockwise and the meter turns anti-clockwise the EM6 will subtract the reverse flow litres until the Reverse volume parameter is surpassed and then the EM6 will terminate the transaction with a meter direction error.

  • Page 64: Pump Control Options

    EM6 Configuration Manual 11.2.7 Pump Control Options Access: Level-2 Hidden: If the valve type is not set “2 stage (vehicle)” or If the ‘Pump Gravity’ setting is set to gravity only 11.2.8 Valve Setup Access: Level-2 Hidden: If the valve type is set “2 stage (vehicle)”...

  • Page 65: Fast Close

    EM6 Configuration Manual 11.2.8.4 Fast Close Access: Level-2 Hidden: None Default: 150 volume units 0 – 255 Range: Set the amount of volume units after which the gravity fast flow valve will close before the preset amount is reached. 11.2.8.5 Slow Flow...

  • Page 66: Tolerance

    EM6 Configuration Manual 11.2.8.8 Tolerance Access: Level-2 Hidden: If valve type is 2 stage (depot) Default: 10 percent 1 – 100 Range: The tolerance applied to slow and fast flow rate set points during loading operation Page | 66 Revision 1.0 Author: R.Tandy...

  • Page 67: Volume Accuracy

    EM6 Configuration Manual 11.3. Volume Accuracy Access: Level-2 11.3.1 Pulsar Type Access: Level-2 Hidden: None Default: IS pulsar Range: IS pulsar EXD pulsar Select which pulsar interface to use. 11.3.2 Pulses per Volume Access: Level-2 Hidden: None Default: 10.00 pulses 0.01 –...

  • Page 68: Switch Point

    EM6 Configuration Manual 11.3.5 Switch Point 2 Access: Level-2 Hidden: None Default: 300 volume units per minute 0 – 9999 Range: Set the switch point at which the calibration factor switches from calibration factor 2 to calibration factor 3 or vice versa. There is a built...

  • Page 69: Temperature

    EM6 Configuration Manual 11.4. Temperature Access: Level-2 11.4.1 Temperature Access: Level-2 11.4.1.1 Enable Access: Level-2 Hidden: None Default: Disable Options: Enable Disable Enable or disable the temperature circuit. Set the ‘System – Temperature, density – Show compensated and / or ‘System –...

  • Page 70: Table

    EM6 Configuration Manual 11.4.1.3 Table Access: Level-2 Hidden: If ‘Temperature’ is disabled Default: Table 60B (20°C) Options: Table 54A (15°C) Table 54B (15°C) Table 54C (15°C) Table 54D (15°C) Table 60A (20°C) Table 60B (20°C) Table 60C (20°C) Table 60D (20°C)

  • Page 71: Products

    EM6 Configuration Manual 11.5. Products Access: Level-2 11.5.1 Number of Products Access: Level-2 Hidden: None Default: 1 Range: 1-8 (products) Enter the number of products that can be loaded on this product-controller. 11.5.2 Pulse Rate Access: Level-2 Hidden: None Default: 0...

  • Page 72: Product Name

    EM6 Configuration Manual 11.5.3.2 Product Name Access: Level-2 Hidden: None Default: ‘Product x’ (Where x is the Product number) Range: 11 characters Enter an alphanumeric value for the product name. This field used on the load-printouts and the load view screen to identify the product loaded on the product-controller.

  • Page 73: Calibration

    EM6 Configuration Manual 11.5.3.4 Calibration Access: Level-2 Hidden: None 11.5.3.4.1 Calibration Factor 1 Access: Level-2 Hidden: If the ‘Pump Gravity’ is set to gravity only Default: 1 Range: 0 – 9.9999 Enter the Calibration Factor 1 for the product selected in the product menu.

  • Page 74: Price

    EM6 Configuration Manual 11.5.3.5 Price Access: Level-2 11.5.3.5.1 Enable Access: Level-2 Hidden: None Default: Disable Range: Disable Enable Allow operator to use pricing as part of the electronic calculators preset operation 11.5.3.5.2 Units Access: Level-2 Hidden: If price disabled Default: Per 1L...

  • Page 75: Modify Price

    EM6 Configuration Manual 11.5.3.5.4 Modify Price Access: Level-2 Hidden: If price disabled Default: Disable Range: Disable Enable Enabled allows operator to modify price during preset operation. Disabled denies operator ability to modify pricing during preset operation 11.5.3.5.5 Price Access: Level-2 Hidden: If price disabled Default: 1.00...

  • Page 76: Diagnostics

    EM6 Configuration Manual 11.6. Diagnostics Access: Level-1 11.6.1 Clear Parameters, Tickets Access: Level-2 Hidden: None Default: Not applicable Range: Not applicable Select ‘Proceed’ to Clear the memory and reset the parameters to default value. 11.6.2 Clear Tickets Access: Level-2 Hidden: None...

  • Page 77: Data Status

    EM6 Configuration Manual 11.6.4 Data Status Access: Level-1 Hidden: None Default: Not applicable Range: Not applicable If data errors are present this number will be greater than zero. To understand these numbers either press enter on the electronic calculator or see ‘Table 2: Product-Controller Data-Error’...

  • Page 78: Output

    EM6 Configuration Manual 11.6.7 Output Access: Level-2 11.6.7.1 Output 1 Access: Level-2 Hidden: None Default: Not applicable Options: Enable Disable If enabled, the output is switched on. If disabled, the output is switched off. All outputs will be switched off when exiting this menu option.

  • Page 79: Read Only

    EM6 Configuration Manual 11.7. Read Only Access: Level-1 11.7.1 View Tickets Access: Level-1 Hidden: None Default: Not applicable Range: Not applicable View all the tickets on the Product-Controller. See ‘Table 3: Ticket / Product Controller Errors’ for the error codes that...
