Control System - Oaks Smart Access Control System Installation Manual

Metal Access
Installation

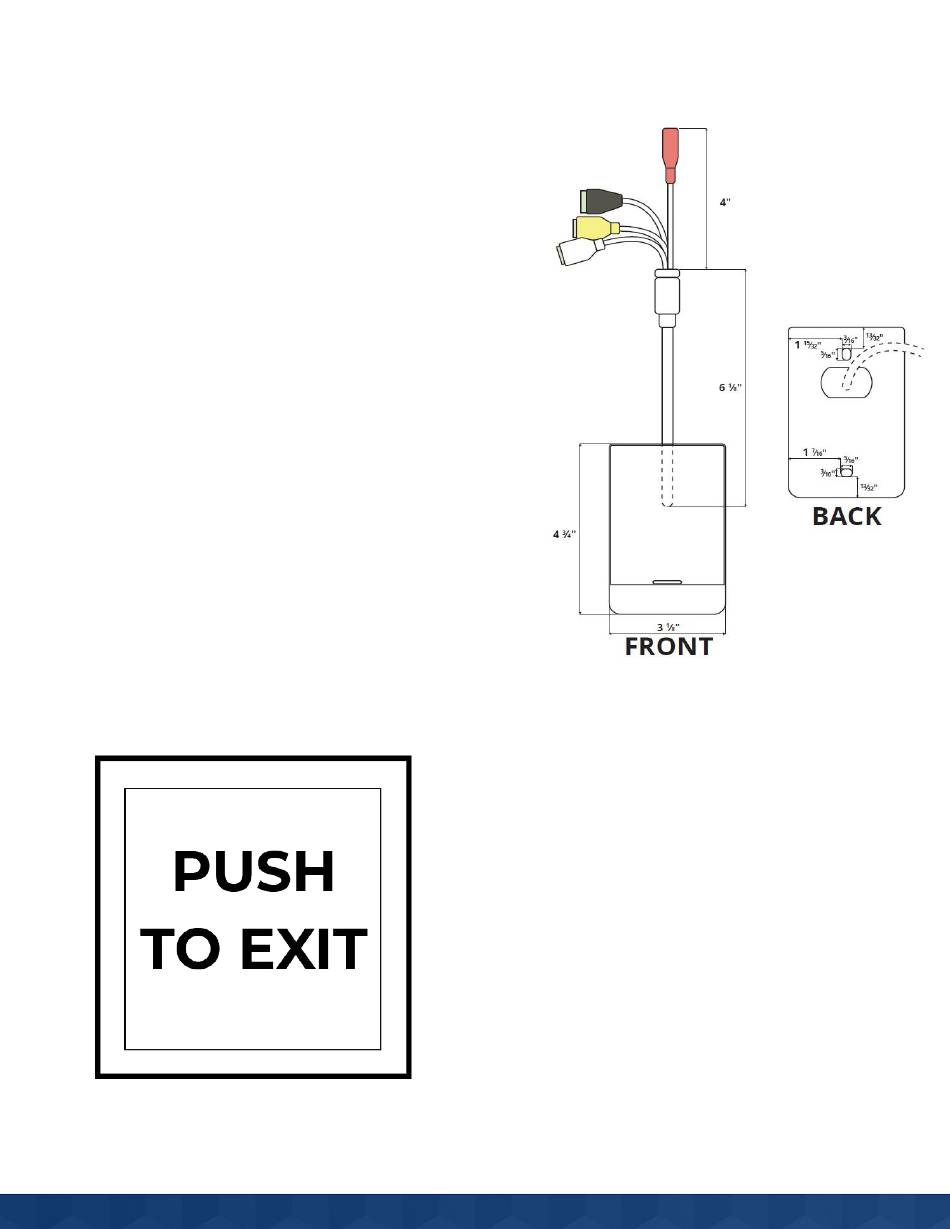

1. Run a power cable to the location where the Metal
Access Control System will be mounted.
2. Remove screw from bottom of Metal Access Control
System with provided torx wrench. Remove the
mounting plate.
3. Thread the cable attached to the Metal Access
Control System through the hole in the mounting
plate.
4. Using the screw holes in the mounting plate, insert
screws until it is flush against the desired surface.
5. Plug in included cable into the red cable that is
attached to the Metal Access Control System.
6. Connect the included cable to power cable.
Exit Button
Specifications

Control System

• Size: 86Lx86xW40.1(mm)
• Mechanical Life: 500000 tested
• Suitable For Door: Hollow Door
• Operating temp: 10~+55°C (14-131F)
• Operating Humidity: 0-95%(relative
humidity)
• Panel Material: 304 stainless steel panel
with wire drawing finish
• Weight: 0.18kg/0.2kg/0.2kg
• Standard Structure: Stainless steel
• Current Rating: 3A@36VDC Max
• Output Contact: NO/NC/COM
Page 4
