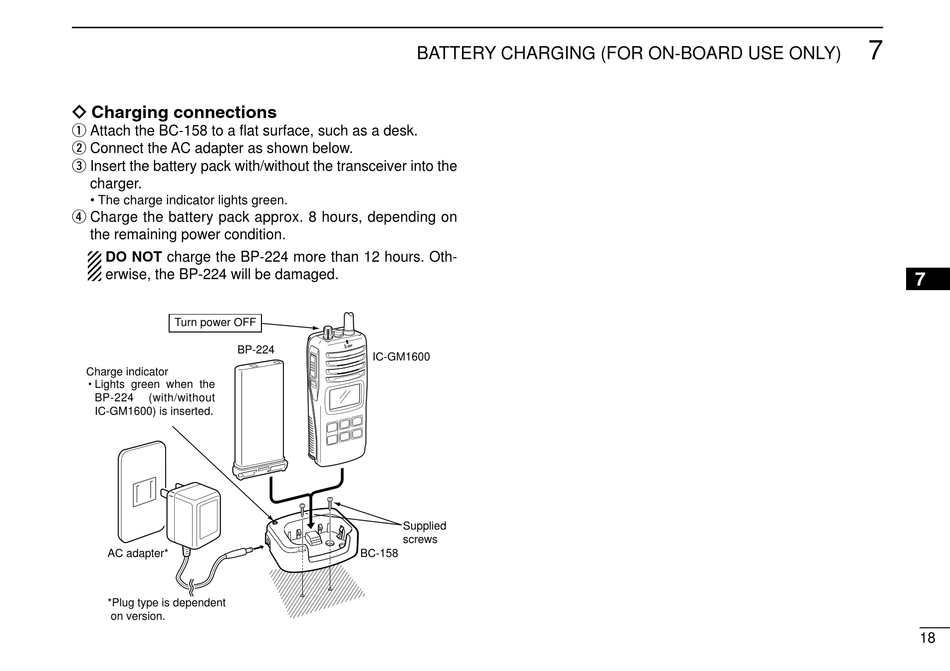

ï Charging connections
q Attach the BC-158 to a flat surface, such as a desk.
w Connect the AC adapter as shown below.
e Insert the battery pack with/without the transceiver into the
charger.
• The charge indicator lights green.
r Charge the battery pack approx. 8 hours, depending on
the remaining power condition.
DO NOT charge the BP-224 more than 12 hours. Oth-
erwise, the BP-224 will be damaged.
Turn power OFF
BP-224
Charge indicator
Lights green when the
BP-224 (with/without
IC-GM1600) is inserted.
AC adapter*
*Plug type is dependent
on version.
BATTERY CHARGING (FOR ON-BOARD USE ONLY)
IC-GM1600
Supplied
screws
BC-158
