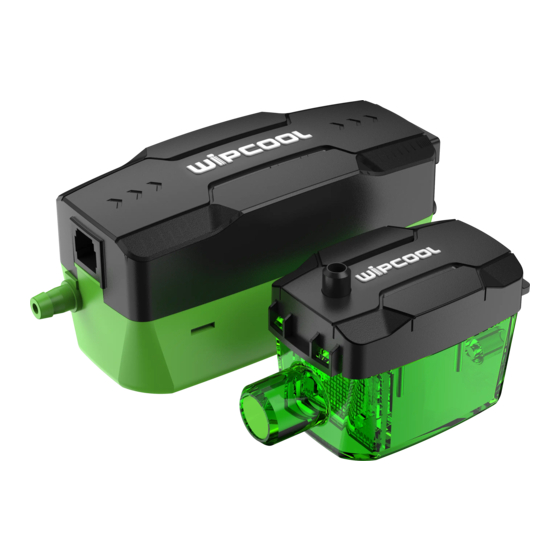

- Page 1 CONDENSATE PUMP P16/P32 OPERATION MANUAL feeling for more WENLINGWIPCOOLREFRIGERATION EQUIPMENTCO.,LTD Reliable And Durable, Website:www.wipcool.com Silence Running...
- Page 2 feeling for more Thanks for buying our products! Please read the manual carefully before use. It will help you greatly in installation and use. Please attach the manual when selling the products so that the end users can refer to the usage and cautions. Safety Instructions 1.
-
Page 3: Explosion Diagram
feeling for more feeling for more 3. Technical Data 1. Explosion Diagram Model Voltage 100V-230V~/50-60Hz Discharge head(Max.) Flow rate(Max.) 16L/h 32L/h Tank capacity 35ml Mini splits up to 30000btu/hr 45000btu/hr Sound level at 1m 21dB(A) 19dB(A) Ambient temp. 0℃~50℃ Part Name Part Name Part Name Condensate pump... -
Page 4: Installation Procedure
feeling for more feeling for more 5. Installation Procedure (4) Place the pump in the position beyond the ceiling. (as shown below) (1) Make sure the probe in the tank is on the right side of the filter net, the filter net and the upper cover are firmly mounted on the tank. - Page 5 feeling for more feeling for more (10) Power supply wiring, in order to avoid leakage of condensate pump, please (7) Connect the water tank and pump with 6x9 silicone tube and fasten it with tie, make connect the alarm signal line and the "Normally Closed" and "Normally Open" signal sure the length of the water pipe is less than 2m ( as shown below ) terminals according to the requirements of different working conditions (as shown below).
-
Page 6: Troubleshooting
feeling for more WARNING Please pay attention to distinguish the power cord from the signal line, incorrect wiring will cause damage to the condensate pump. Ensure the voltage is consistent with pump. (11) Pour some water into the evaporator tray to check whether the tray leaks and the condensate pump works normally.
