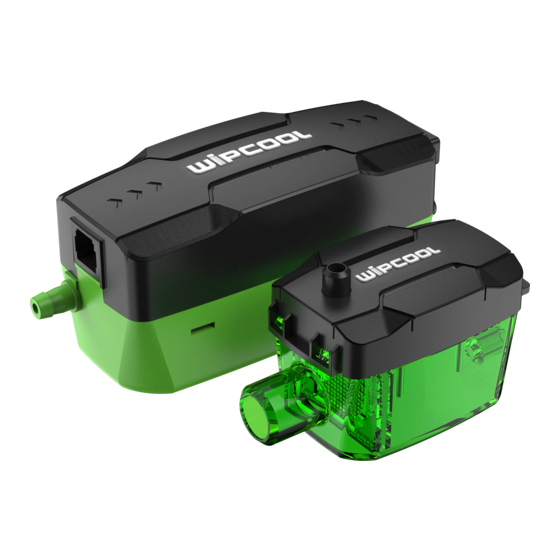

- Page 1 CONDENSATE PUMP P16/P32 OPERATION MANUAL Reliable And Durable, Silence Running...
- Page 2 feeling for more feeling for more 3. Technical Data 1. Explosion Diagram Model Voltage 100V-230V~/50-60Hz Discharge head(Max.) Flow rate(Max.) 16L/h(4.2GPH) 32L/h(8.5GPH) Tank capacity 35ml Mini splits up to 30000btu/hr 45000btu/hr Sound level at 1m 21dB(A) 19dB(A) Ambient temp. 0℃~50℃ Part Name Part Name Part Name Condensate pump...
- Page 3 feeling for more feeling for more 5. Safety Instructions (3) Connect the vent pipe with the air hole. (as shown below) 1. Place the tank horizontal when installing, do not tilt the pump. Check whether the level drop is centered; if there is tilt, adjust the water level before using it. 2.
- Page 4 feeling for more feeling for more WARNING (8) Connect the 6x9 water pipe to the water outlet, tie the water pipe, make sure that the discharge head is less than 8m and the length of the water pipe is less than Please pay attention to distinguish the power cord from the signal line, 25m.
