Summary of Contents for WIPCOOL P12

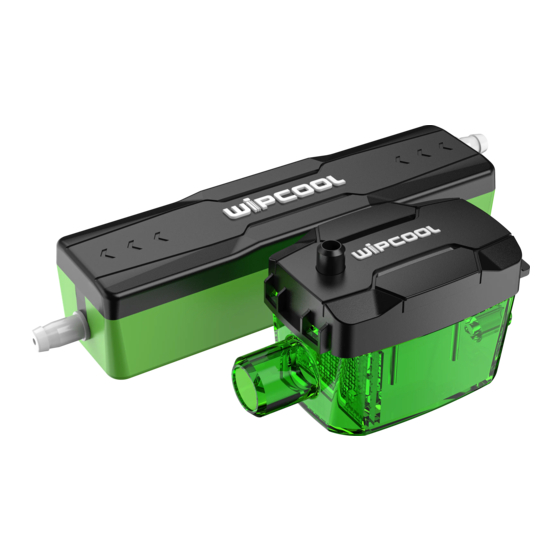

- Page 1 CONDENSATE PUMP P12/P12c OPERATION MANUAL Compact and Flexible, Silence and Durable...
- Page 2 1.2 P12C 1. Explosion Diagram 1.1 P12 Part Name Part Name Part Name Part Name Part Name Part Name Condensate pump Water inlet pipe Upper cover plate Outlet port Sealing ring Four-core power cord...
- Page 3 2. Dimension 3. Technical Data 2.1 P12 Model P12C Voltage 100V-230V~/50-60Hz 11.5 Discharge Head(max.) 7m(23ft) Flow Rate(max.) 12L/h(3.2GPH) Tank Capacity 35ml 45ml Mini Splits up to 30,000btu/hr Sound Level at 1m 19dB(A) Ambient Temp.
- Page 4 3. Non - professional personnel should not install it to avoid danger. (3) P12 Connect the vent pipe with the air hole. P12C don't need to connect 4. The condensate pump is not waterproof. Do not place it in the open air, outdoors or in a place prone to flooding.
- Page 5 feeling for more feeling for more (8) Connect the 6x9 water pipe to the water outlet, tie the water pipe, make sure that (5) The use of shockproof materials, ensure the water tank and condensate pump the discharge head is less than 6m and the length of the water pipe is less than stuck firmly, low vibration to avoid noise.
- Page 6 feeling for more feeling for more 7. Troubleshooting (11) Power supply wiring, in order to avoid leakage of condensate pump, please connect the alarm signal line and the "Normally Closed" signal terminals according to the requirements of different working conditions Problem Cause Action...
