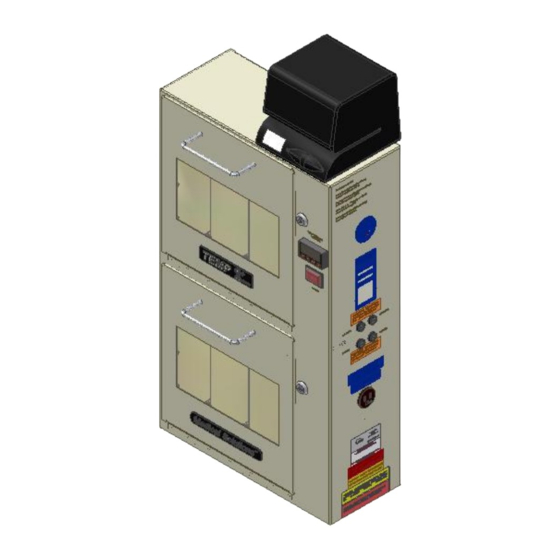

- Page 1 TEMP 1 FLUID WARMER OPERATORS MANUAL MODEL 986S Medical Solutions, Inc. 3901 Centerview Drive, Suite L Chantilly, Virginia 20151 800-435-7600 703-834-0039 (Fax) 4134.A...
- Page 2 FLUID WARMER. Intended Use The TEMP 1 is designed to store, warm and maintains the temperature of I.V. and irrigation fluid bags prior to their use. It is suggested that each facility should contact the fluid manufacturer to obtain the manufacturers specifications for time and temperature for the fluids being warmed.
- Page 3 Specifications Classification Class 1 Size 25" H x 14-1/2" W x 6" D Weight Approximately 29 pounds Loaded Construction Steel, Powder Coat Finish Mounting Bracket for Wall Provided I.V. Pole Mount Bracket (Optional, Part # K-725) Temperature Control Specifications Temperature Setting Range Ambient to 43C Factory Preset Temperature 40°C...
- Page 4 90 lbs. Leave the heads of the mounting bolts 1/16” out from the wall, position the TEMP 1® mounting brackets over the heads of the bolts and slide into place.
- Page 5 TEMP 1 Time/Clock Mounting Bracket Mounting Brackets Mounting Diagram 4134.A...
- Page 6 Push the label sheet towards the arrow until the Documentor is activated. iv) Place a label on each IV bag for documentation and compliance purposes. ® 2) Load the labeled bags of solution into the TEMP 1 through the front pull out doors 4134.A...
- Page 7 4. The shelves will operate independently from each other. When one shelf is not in use decrease the set point for that shelf (below ambient temperature) to reduce operating cost. 5. Reload the TEMP 1 after removing the IV bag. NOTES ...
-
Page 8: To Change The Date
™ Documentor Resetting Instructions TO CHANGE THE DATE: 1. Plug Documentor™ into an electrical outlet. ™ 2. Press and hold blue RESET button located on the bottom of the Documentor • 3. While holding down the RESET button, press and hold the right button on the front panel. - Page 9 Check to see that the unit is plugged in and the power switch is on. b. Check the set point setting so that the controller is calling for the unit to operate. 2. If the unit overheats, call Medical Solutions, Inc. 3. Contact Medical Solutions, Inc. for technical assistance at 800-435-7600. 4134.A...
- Page 10 Electrical Schematic 4134.A...
- Page 11 Fluke Thermometer, the two temperatures should be within one degree Celsius of each other. If the two temperature readings are within one degree Celsius of each other, the temperature controller has been verified. If they are not, please contact Medical Solutions, Inc. at 800-435-7600.
-
Page 12: Limited Warranty
Operator’s service manual. ® IMPORTANT: THIS IS YOUR TEMP 1 WARRANTY REGISTRATION Please register your warranty by filling out this page and send it to Medical Solutions, Inc. within 30 days of purchase. Hospital Name: __________________________________________________________ Mailing Address: _________________________________________________________ City: _______________________...
