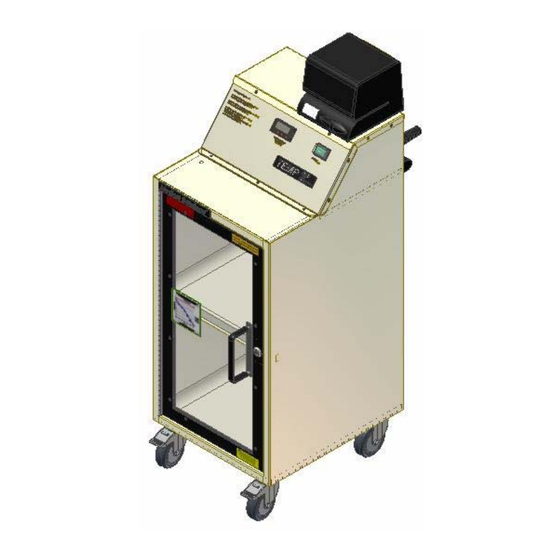

- Page 1 TEMP 2 FLUID WARMER OPERATORS MANUAL 6000 Series Medical Solutions, Inc 3901 Centerview Drive, Suite L Chantilly, VA 20151 800-435-7600 703-834-0039 (Fax) 5640.A...
- Page 2 TEMP 2 Fluid Warmer Read and understand the Operators Manual before using the TEMP 2 FLUID WARMER. Intended Use The TEMP 2 Fluid Warmer is designed to store, warm and maintain the temperature of I.V. and irrigation fluid bags or bottles prior to their use. It is suggested that each facility should contact the fluid manufacturer to obtain the manufacturer’s specifications for time and temperature for the fluids being warmed.
- Page 3 Specifications Classification Class 1 Dimensions 14” (wide) x 19” (deep) x 33 ¾” (tall) Capacity Each Shelf 12 – One Liter Bags, or 6 - Three Liter Bags, or 2 - Five Liter Bags Design Floor model with 2 locking casters 2 non-locking casters Construction Electro Galvanneal Steel...
- Page 4 Set-up Instructions 1. Remove the TEMP 2 from the shipping box; check before operating to ensure that all of the packaging material and manuals are removed from the cabinet. 2. Locate The Documentor and remove it from the shipping box. Attach The Documentor ...
- Page 5 Operating Instructions 1. Turn the unit on by pressing the power switch. The switch will illuminate when energized. The controller will perform a self-test then will display the current temperature of the shelf heater plates. The factory temperature setting is 104 degrees F. To change the temperature setting, follow the instructions below.
-
Page 6: To Change The Date
™ Documentor Resetting Instructions TO CHANGE THE DATE: 1. Plug Documentor™ into an electrical outlet. ™ 2. Press and hold blue RESET button located on the bottom of the Documentor 3. While holding down the RESET button, press and hold the • right button on the front panel. - Page 7 Check the set point setting so that the controller is calling for the unit to operate. 2. If the unit overheats, call Medical Solutions, Inc. 3. Contact Medical Solutions, Inc. for technical assistance at 800-435-7600. Electrical Schematic 5640.A...
- Page 8 Service Panel Location and Removal Remove the top plate to access the electrical compartment. 5640.A...
- Page 9 Fuse removal instructions 5640.A...
- Page 10 Preventive Maintenance Plan The TEMP 2 temperature controller should be verified every five (5) years. Medical Solutions, Inc. requires the use of the following items to accurately measure the bag temperature for verification. Fluke 51II Digital Thermometer 6” Long .093” Diameter Type T Needle Thermocouple...
- Page 11 Solutions, Inc. within 30 days of purchase. Hospital Name: Mailing Address: City: State: Zip Code: Contact Name: Date Purchased: Serial Number: Department Purchased For: COPY THIS PAGE AND MAIL TO: Medical Solutions, Inc. 3901 Centerview Drive, Suite L Chantilly, Virginia 20151 Fax number 703-834-0039 5640.A...
