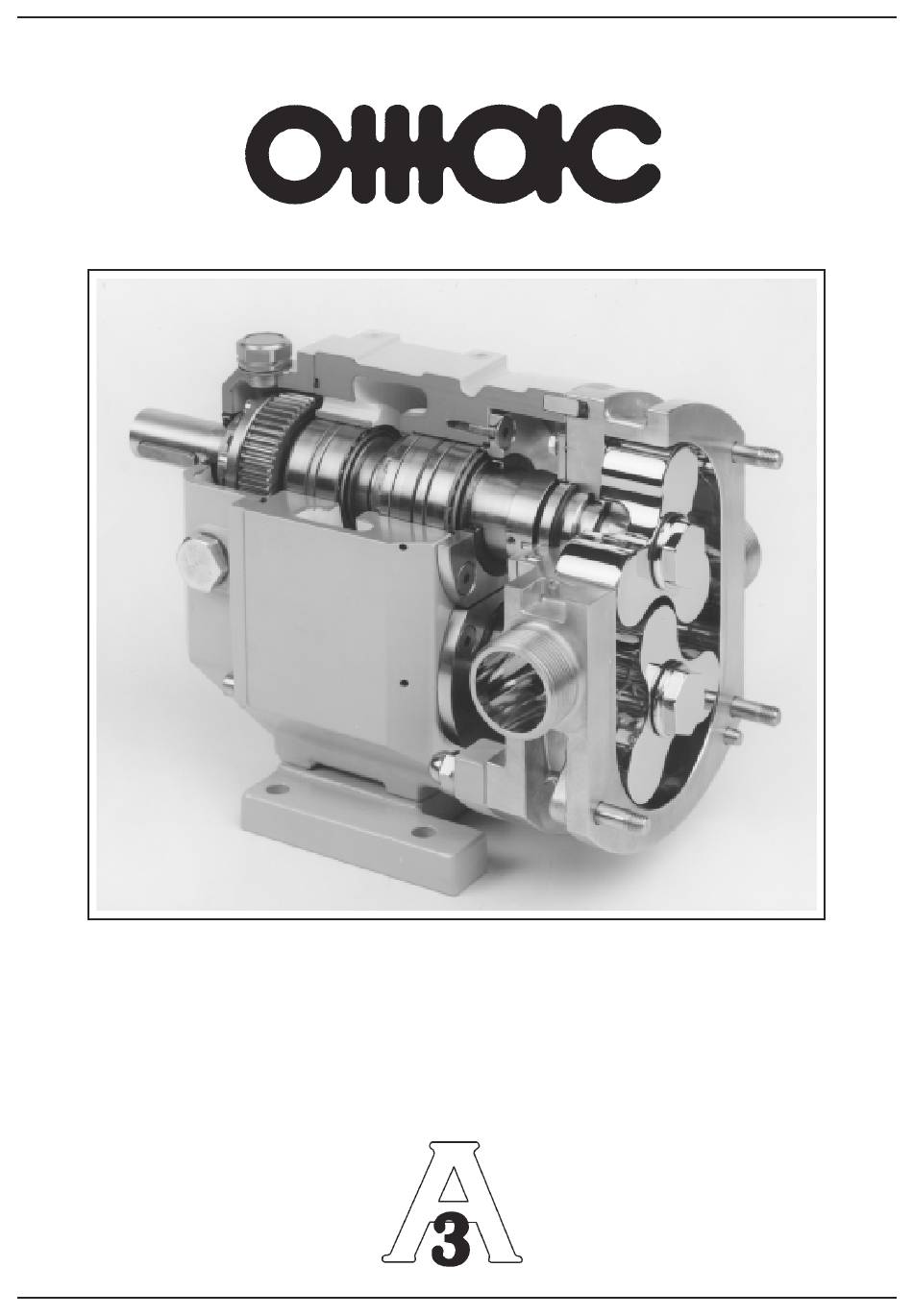

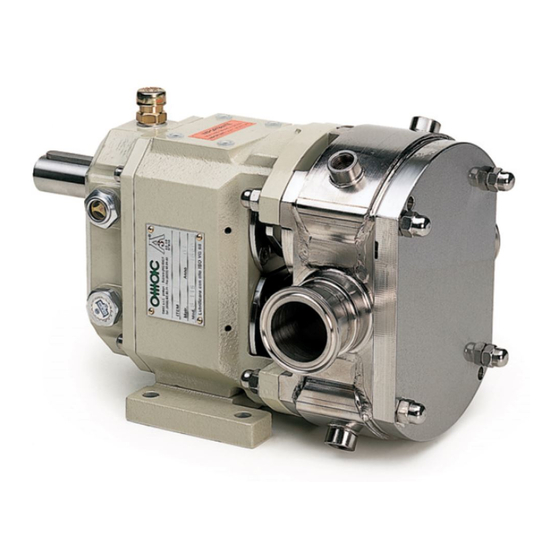

- Page 1 Installation operation maintenance manual AUT. N° 810 EDIZ. 07-01...
-
Page 2: Table Of Contents
C O N T E N T S B Serie lobe pump code page Pump materials " Introduction " Preliminary checks " Installation " Piping system " First starting " General maintenance " Relief Valve and manual By-pass " 11-12 Trouble shooting guide "... -
Page 3: B Serie Lobe Pump Code
B SERIE LOBE PUMP CODE 1 1 0 C R V EXAMPLE: FINISHED PRODUCT CATEGORY LOBE PUMP SERIE PUMP SIZE Type UM (lip seal) Teflon packing rings Teflon packing rings + hydraulic barrier SS/Carbon balanced mech. seal SEAL Tung. Carbide/Carbon balanced mech. seal TYPE Tung. -
Page 4: Pump Materials
P U M P M A T E R I A L S Bearing housing G 25 cast iron Gear cover serie B1 - B2 - B3 - B4 Aluminium serie B5 - B6 G25 cast iron Rotor case and end cover standard AISI 316 stainless steel optional... -
Page 5: Introduction
3.2 - PIPING SYSTEM 1 - OMAC pump suction and discharge are sized to suit passage of even very viscous medium; consequently the piping should not be necessarly proportionate to them. 2 - The suction and discharge piping should be sized according to the calculus in the technical handbook, considering the expected capacity, viscosity and friction losses. -
Page 6: Piping System
4 - The pump should be installed near the source, from which it sucks. 5 - Reduce at min. bends and necks along the whole line. 6 - Use large radius bends, avoiding Tees and needless runs. 7 - Check the perfect inlet connection seal not to reduce the pump suction power. Fig. - Page 7 RIGHT WRONG A = foot valve B = check valve Fig. 6 15 - The horizontal sections of the suction pipe must be a bit inclinated towards to the top in order to avoid the creation of air pockets, which can damage the pump priming. WRONG VACUUM RIGHT...
-
Page 8: First Starting
3.3 - FIRST STARTING 1 - The terminal board connection and the thermic setting, made according to the maximum allowable absorption, ∆). must be carried out by qualified staff and following the instructions of the electric motor plate ( 2 - Wash the piping by means of clean water to remove foreign bodies, drosses and load. IMPORTANT: Don't use a lobe pump for the a.m. -
Page 9: General Maintenance
8 - If the duty speed is very high, it's normal that the bearing housing temperaturs reaches 50-60°C, expecially during the first working hours. 4. GENERAL MAINTENANCE 4.1 - LUBRICATION 1 - OMAC pumps are delivered ready filled with oil of ISO VG 68. Advised lubricants Tab. 9 Oil quantity Tab. 10 DUTY TEMPERATURE... - Page 10 1 - If the product is subjet to easy drying, crystallization or decantation, it's necessary to wash pump and piping system at the end of each work or at the beginning of a long plant pause. 2 - The reversibility of the rotation direction, peculiarity of all OMAC pumps, allows the product return, emptying discharge piping.
-
Page 11: Relief Valve And Manual By-Pass
4 - Check the corrosion of the bearing housing; if necessary arrange its repainting by means of a paint, suitable to protect it from a quick wear. The OMAC standard pumps are painted with: BRIGHT EPOXID ENAMEL RAL 7032. If you carry out these checks sistematically, the pump will keep its initial performaces for many years. - Page 12 5.3 - MANUAL BY-PASS VALVE 1 - The relief valve can be used even as manual by-pass to adjust the capacity. 2 - Loosening the register screw (59), release the pressure on the spring so that to remove the piston (57) from the pumping chamber, letting part of the pumped liquid go back into the sucking chamber.
-
Page 13: Trouble Shooting Guide
6. - TROUBLE SHOOTING GUIDE INCONVENIENCES R E M E D I E S CAUSES • Wrong rotation direction 1. Invert it 2. Fill pumping chamber and feeding piping with liquid, expelling • Unprimed pump 3. Increase flushing height, enlarge suction piping diam, reduce suction piping lenght and bends, reduce pump speed and medium •... -
Page 14: Reference Tables - Rotor Clearances - Tightening Torque
Tab. 13 - ROTOR CLEARANCES Rotors in AISI 316 Rotors in AISI 316 Rotors in S.S. Shaft ST version SM version anti-seizure alloy B100 0,12 0,12 0,15 0,20 0,15 0,15 0,20 0,20 0,07 0,08 0,12 0,15 0,12 B105 - B110 0,14 0,14 0,15... -
Page 15: Heating Jacket And Seal Flushing Connections
Tab. 15 - Heating jacket and seal flushing connections B100 B470 - 490 – 1/8" 1/8" 1/8" 1/8" 1/8" 1/8" 1/4" – 1/4" 1/4" 1/4" 1/2" 3/4” 3/4” 3/4" 1/8” 1/4" 1/4" 1/4" 1/2" 3/4” 3/4” 3/4" Cylindrical GAS thread UNI 228 - Dimensions in mm B100 B470-490 29,1... -
Page 16: Bearings
, of TIMKEN company, is carefully carried out by our staff in order to grant an ideal rolling without clearances. Therefore these bearings must be directly requested to OMAC, that supply them already pre-assembled for the right pre-loading. 2 -The bearings for pump type B5 - B6 are according ISO norms of straight roller type and double ball crown type, everywhere available. -
Page 17: Instructions For Assembly And Disassembly - Pump Type B1-B2-B3-B4-B550
8. - INSTRUCTIONS FOR ASSEMBLY AND DISASSEMBLY. PUMP TYPE B1 - B2 - B3 - B4 - B550 Fig. 14 - Cross section type B105 - B110 - B115 Fig. 15 - Cross section type B215 - B220 - B325 - B330 - B430 - B440 - B550... - Page 18 ROTOR CASE DISASSEMBLY - PUMP TYPE B1 - B2 - B3 - B4 - B550 1. Remove the front nuts and exert laverage in the 2. Unscrew anticlockwise the rotor nuts, interposing a provided slots on cover. non metal element between the rotors, making them stop rolling.
- Page 19 7. Untighten the socket head screws on mechanical 8. Extract the rotating part of the mechanical seal from seal. the shaft. ROTOR CASE ASSEMBLY Mod. B1 - B2 - B3 - B4 - B550 9. IMPORTANT! 10. Clean carefully the shafts. Lubricate lightly the O-ring and introduce the rotating During the following operations, take care you don't part of the seal, possibly by means of a conical...
- Page 20 13. Clean carefully the seal slide surfaces and 14. Assemble the rotors, setting them on pitch setting, assemble the rotor case delicately in order not to according to reference marks (1-2). Clamp the rotor damage the seals and be sure it is well set on plugs. nuts (see tab.
- Page 21 19. Extract the gears, exerting leverage between the 20. On mounting and dismounting we suggest you should bearing housing and the gears side, without replace the gears with a spacer in order not to break damaging the toothing outline. down the pre-assembled bearing. 21.
-
Page 22: Instructions For Bearing Housing Assembly - Pump Type B1 - B2 - B3 - B4
BEARING HOUSING ASSEMBLY - PUMP TYPE B1 - B2 - B3 - B4 25. The bearing are pre-assembled with right preloading. Bearing parts can not be replaced with others. You can not invert parts of the same bearing. In order to interchange front bearings, that lock the shaft axially, you should respect the reference mark ( ) that must be put on shaft shoulder. - Page 23 29. Set the spacers for axial shaft adjustment and assemble the shafts with the already fixed bearings. 30. Set the O-ring gasket in its seat and assemble the bearing retainers with oil lip seal already fixed. Assemble the rotor case and rotors as previously described and check the plays as per tab.
- Page 24 33. The gear couple is composed by a fixed gear and 34. Tighten the retainer ring nuts with the corresponding an adjustable one. Assemble the fixed gear, then safety washers and set rightly the suited retainer the adjustable one with untightened screws, taking key.
-
Page 25: Instructions For Assembly And Disassembly - Pump Type B5 - B6
9. INSTRUCTIONS FOR ASSEMBLY AND DISASSEMBLY. PUMP TYPE B6 Fig. 16 Cross section type B660 - B680... - Page 26 9. INSTRUCTIONS FOR ASSEMBLY AND DISASSEMBLY. PUMP TYPE B550 Fig. 16/bis Cross sections type B550...
- Page 27 ROTOR CASE DISASSEMBLY - PUMP TYPE B660 - B680 1. Remove the end cover and untighten the two locking 2. Untighten the back nuts and remove the rotor case. nuts of the rotors. 3. Unscrew anticlockwise the rotor nuts, interposing a 4.
- Page 28 7. Extract the stationary part of the seal from the support 8. Untighten the socket head screws on mechanical fixed on seal flange. seal. ROTOR CASE ASSEMBLY 10. IMPORTANT! During the following operations, take care you don't damage the lapped seal surfaces; don't lay them on the bench and handle them with clean hands.
- Page 29 13. Assemble the stationary part of the seals on supports, 14. Clean carefully the seal slide surface and taking care to aline the slot with the retainer pin. assemble the seal flange delicately in order not to Assemble these supports on seal flange, setting the damage the seals.
- Page 30 19. Stand the pump upright and extract the two bearing supports, making use of the threaded holes for removal. Doing so you will remove the spacers for axial adjustement too, which should be marked and separated for a right re-setting while assembling. 20.
- Page 31 BEARING HOUSING ASSEMBLY 24. Remove the ring and extract the outside ring of the 25. Assemble the outside rings of the roller bearings on roller bearing from the bearing housing. the bearing housing, using a retaining ring to set them axially, because no counterboring is arranged. Assemble the retaining rings without seal rings.
- Page 32 29. Assemble the seal rings (18) on retainers (9). 30. Assemble the rotor case as previuosly described; tighten the retainer ring nut with the corresponding lock washers and set rightly the retainer keys. In order to avoid turning during operation insert a non metal wedge between rotors.
-
Page 33: Instructions For Driving Shaft Inversion - Pump Type B5 - B6
10. DRIVING SHAFT INVERSION - PUMP TYPE B5 - B6 1 - To invert the drive shaft position it's necessary to remove the shafts from bearing housing, as previously described. IMPORTANT! (See fig. 20): Mark the rotors B, the bearing supports (75) and the axial adjustement spacers (11) in order to re-set them rightly on the same shaft while re-assembling. - Page 34 BALANCED ROTARY MECHANICAL SEAL TYPE "U7K" - "KL2A" Code 3 • Stationary part = carbon - O-ring = EPDM (viton) • Rotating part = AISI 316 SS Code 4 • Stationary part = carbon - O-ring = EPDM (viton) • Rotating part = tung.
-
Page 35: Seals For Pump Type B660 - B680
2 - SEALS FOR PUMP TYPE B660 - B680 LIP SEAL Pos. 242 - 245 = N.B.R. (viton) O-ring Pos. 240 = "UM" viton rings = "UM" polymer S1 rings Fig. 32 Code 0 PACKING GLAND Pos. 285 - 282 = N.B.R. (viton) O-ring Pos. -
Page 36: By Pass - Relief Valve
3 - BY-PASS - SAFETY VALVE ON PUMP COVER Fig. 21 Safety valve and hand by-pass... -
Page 37: Aseptic Rotor Case
4 - ASEPTIC VERSION ROTOR CASE 5 - JACKETED END COVER AND ROTOR CASE FOR PUMP HEATING OR COOLING Fig. 36 Jacketed end cover Fig. 37 Jacketed rotor case... -
Page 38: Technical Drawing - Pump Type B105 - 110 - 115
Fig. 18 Pump type B105 - B110 - B115... -
Page 39: Technical Drawing - Pump Type B215-220-325-330-430-440-470-490-550
Fig. 19 Pump type B215 - B220 - B325 - B330 - B430 - B440... -
Page 40: Technical Drawing - Pump Type Mod. B660 - 680
Fig. 20 Pump type B550 - B660 - B680... -
Page 42: Components And Rotor Cases Codes
COMPONENTS CODE 2 3 4 6 7 8 1 = Pumps 2 = Spare parts - components PART 3 = Pre-assembling CODE 4 = Commercial parts 5 = Semi-finished parts 6 = Raw materials - meltings 001 Bearing supports and other details PRODUCT Rotor cases CATEGORIES... -
Page 46: Technical Drawing - Pump Type B100
Fig. 40 Cross section type B100... - Page 47 Fig. 41 Pump type B100...
-
Page 48: Seals For Pump Type B100
SEALS FOR PUMP TYPE LIP SEAL Pos. 242 = N.B.R. (Viton) O-ring Pos. 240 = “UM” Viton rings Fig. 42 Codice 0 S1 LIP SEAL Pos. 242 = N.B.R. (viton) O-ring Pos. 240 = “UM” polymer S1 rings Fig. 43 Codice 0 BALANCED ROTARY MECHANICAL SEAL “U7K”... -
Page 49: Parts List - Spare Parts Code
B100 PART LIST - SPARE PARTS CODE Key No. D e s c r i p t i o n Materials No. REQ. PART No. Bearing Housing G25 Cast Iron 2001G007 Gear cover Aluminium 2001L037 Standard driving shaft Aisi 316 L S.S. 2004B061 Standard driven shaft Aisi 316 L S.S. - Page 52 OMAC S.r.l. POMPE Via G. Falcone, 8 - 42048 RUBIERA (RE) - ITALY TEL. 0522 629371-629923 - FAX 0522 628980 www.omacpompe.com - E-mail:commerciale@omacpompe.com...
