Vsound pedal controls

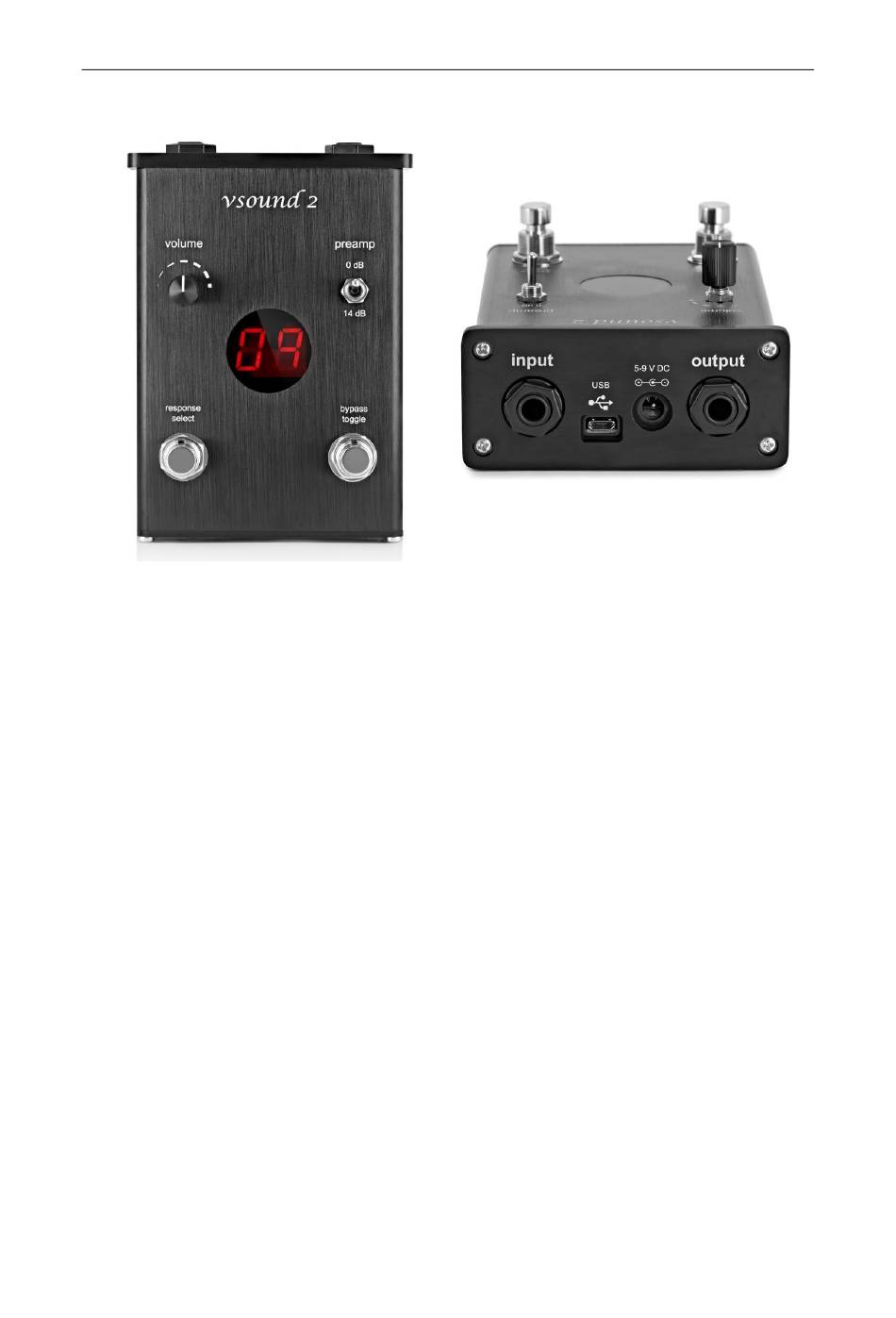

Top panel
• Volume. This rotary control adjusts volume of the output.
• Preamp. This sets the gain of the input preamplifier, allowing a gain of either 0 dB or 14 dB.
• Response select. This footswitch is used to select the IR. The pedal can hold 10 IRs in its memory,
and the footswitch cycles round from 0 (bypass) to 10.
• Bypass toggle. This footswitch toggles between bypass and the presently selected IR.
Front panel
• Input. Uses a standard ¼ mono jack plug.
• USB. This is a micro USB socket, used to connect the vsound pedal to your Mac.
• Power input. This is standard 9 V, centre negative socket, for 5.5 x 2.1 mm plugs
• Output. Uses a standard ¼ mono jack plug.
