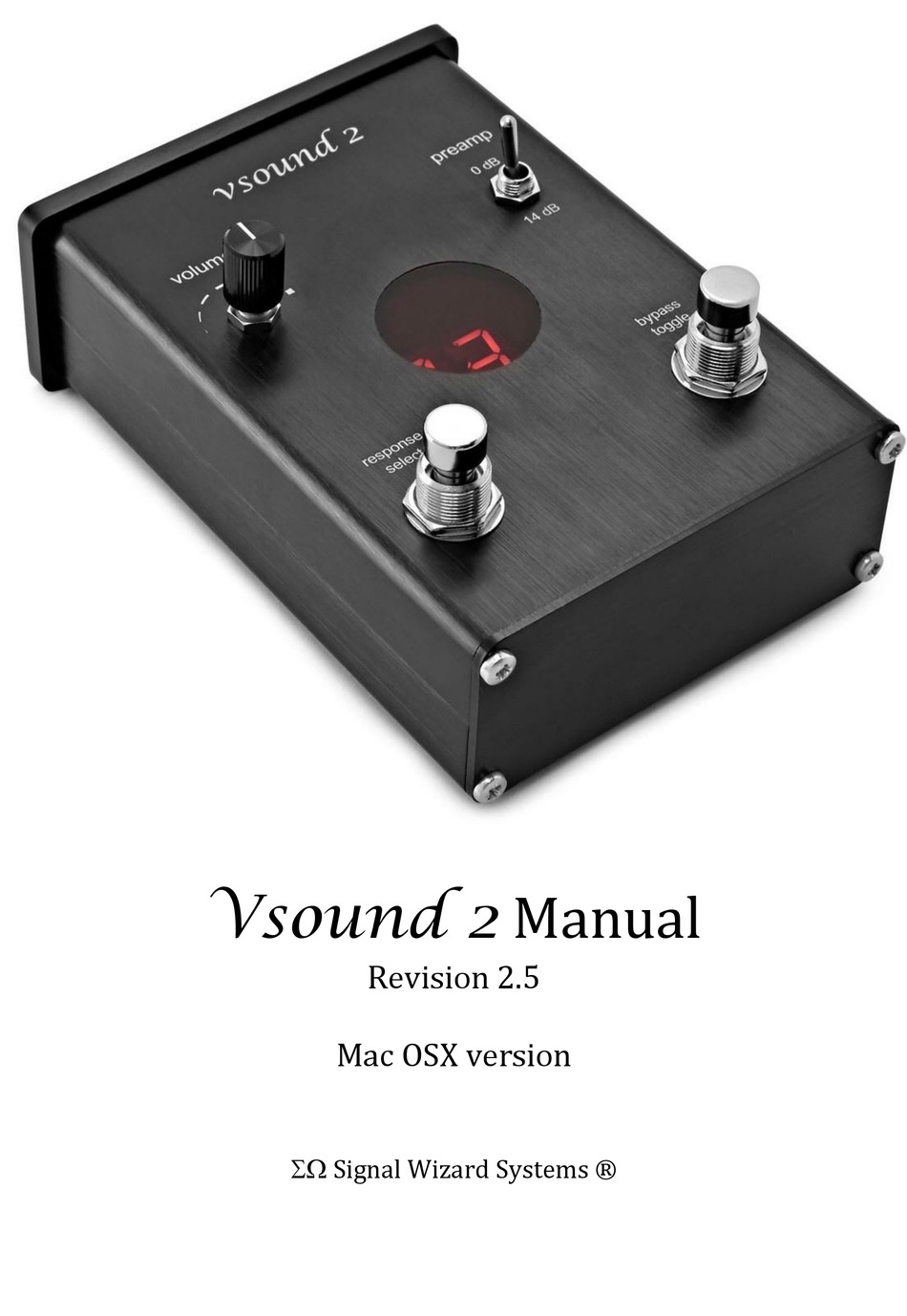

- Page 1 Vsound 2 Manual Revision 2.5 Mac OSX version Signal Wizard Systems ®...
-
Page 2: Table Of Contents
Table of contents Section Page Introduction Vsound pedal controls Quick start tutorial Notifications and System Response control Spectrum EQ Changing default axes Selecting an impulse response from the software Batch file utility Updating the operating system and factory defaults About impulse responses Hardware specifications Software specifications Contact us... -
Page 3: Introduction
You can also download your own responses or contact us to provide you with new or modified responses. Here at Signal Wizard Systems Ltd we are really excited about vsound and we hope you get many hours of enjoyment using this system. -
Page 4: Vsound Pedal Controls

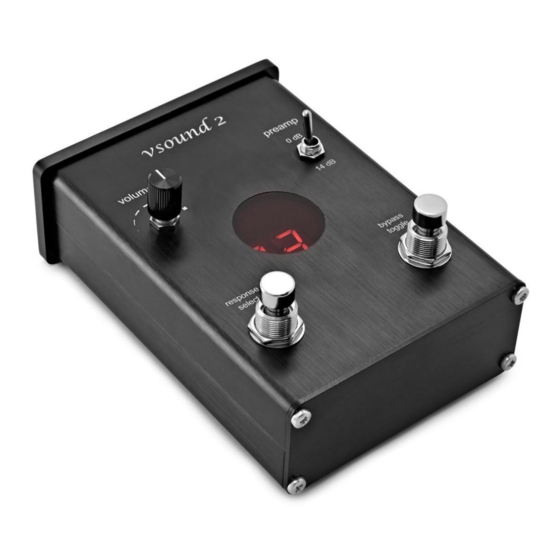

Vsound pedal controls Top panel • Volume. This rotary control adjusts volume of the output. • Preamp. This sets the gain of the input preamplifier, allowing a gain of either 0 dB or 14 dB. • Response select. This footswitch is used to select the IR. The pedal can hold 10 IRs in its memory, and the footswitch cycles round from 0 (bypass) to 10. -
Page 5: Quick Start Tutorial
Quick start tutorial Ensure your computer or laptop has internet access. If you are reading this then you will have already downloaded and installed the vsound software from the website, and the vsound software is open. Now follow these steps: Connect the supplied power adaptor to vsound and switch on (do not use any other adaptor). -
Page 6: Notifications And System
• Pre-amp (dcello) – alters the pre-amp gain between 0 dB and 14 dB. Note – this feature is only supported by the dcello board, not the vsound 2 unit, which ignores this command. The pre-amp gain for the vsound 2 unit is selected by the physical switch on the unit. -
Page 7: Response Control
Response control The Response Control window is the section of the software that allows the user to open an impulse response and download it to the hardware, as well as EQ the response using the versatile EQ tool. The impulse response and its spectrum are shown in the plot areas when loaded from disc. -
Page 8: Spectrum Eq
Spectrum EQ The equalizer is a new and very powerful feature introduced in vsound version 2.5. It allows the frequency response to be modified with exceptional precision using an interactive tool, instantly generating a new impulse response that can then be saved or downloaded to the pedal in the usual manner. - Page 9 • Precision control - this has two settings, standard (default) or high. With the standard setting, the equalizer will change the gain of the selected region of the frequency response exactly as specified. However, with a large gain change, the modified impulse response can have ripples in the tail end, which may be undesirable.
-
Page 10: Changing Default Axes
Changing default axes From the main menu, select Tools > Axes. A new window opens, which you can use to change the vertical axis range of the impulse response and frequency response plots. For the frequency response plot, two ranges are provided, depending on whether the vertical axis is in dB (default) or linear scaling. -
Page 11: Selecting An Impulse Response From The Software
Selecting an impulse response from the software Use this dialog box to select different violin responses using the integrated software. The controls are as follows: • Select buttons - these work like the left footswitch, except that any response can be selected at random. -
Page 12: Batch File Utility
Batch file utility The batch file window allows you to open multiple IRs, add them to a list, and download them all to the unit as a batch. You can also save your list as a batch file, for easy recall later. The buttons are: •... -
Page 13: Updating The Operating System And Factory Defaults
10. Updating the operating system and factory defaults Using this dialog box, you can download new versions of the real-time firmware operating system (OS) from the Signal Wizard Systems website as they become available. You can also use it to restore your vsound to its original factory default settings. -
Page 14: About Impulse Responses
Signal Wizard Systems offers a violin characterization service to provide our customers with impulse responses of their favourite acoustic violins. For more details, please contact us through our website: www.signalwizardsystems.com. -
Page 15: Hardware Specifications
12. Hardware specifications Hardware • Stomp-box design • Large 2-digit 7-segment LED display • Foot switches: violin select and bypass/toggle • Standard quarter inch mono phono sockets • Output to amplifier or headphones • Rotary volume control • 9V DC input, centre negative •... -
Page 16: Software Specifications
13. Software specifications • Seamless communication with hardware unit • Download and control of impulse responses • Auto loudness correction • Autosave all settings • Gain adjustment and full digital gain • Blender control (wet/dry balance) • Detailed impulse and frequency response display with zoom •... -
Page 17: Contact Us
Web: www.signalwizardsystems.com Facebook: www.facebook.com/VsoundSWS Tel: +44 161 306 4906 Company details Copyright 2019 © Signal Wizard Systems Ltd. All rights reserved SWS Ltd VAT number GB290639382 Company registration number 09689576 Signal Wizard Systems is a registered trade mark UK00002575413 (2011) -
Page 18: Terms And Conditions
15. Terms and conditions Signalwizardsystems.com is operated by Signal Wizard Systems Ltd, a company registered in England (Company registration number 09689576, VAT number GB290639382). By law, all customers have the right to cancel their orders. This legislation is specific to the Distance Selling Regulations which give consumers extra protection when buying online.
