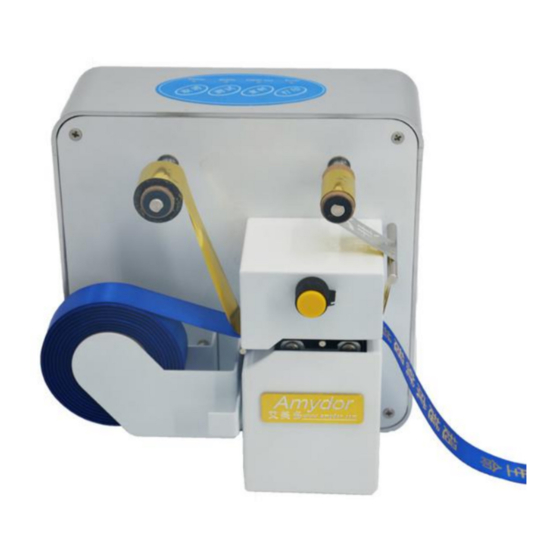

I. Appearance
II. Technical Parameters
Model
Printing Method
Max printing Width
Feeding width
Software Operating Environment
Interface
Power Supply
Max Power Consumption
Packing size
G.W./N.W.
Resolution
Font line
Printing material
Features:
* USB output, performance is stable.
* Support global design software such as CorelDRAW, AI, PhotoShop etc.
* The best print head Japan Rohm -- precision thermal print head, quality assurance.
Digital Foil Printer AMD320
User Manual
AMD320
Direct thermal or heat transfer method
40 mm
6mm - 40mm
Windows XP, Win 7, Win 8, Win 10
USB
AC110~240V, 50/60Hz / as needed
60W
32cm*32cm*32cm
5.5kg /4.5kg
200*400dpi
At least 0.25mm
Must be smooth and flat
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amydor AMD320
Summary of Contents for Amydor AMD320
- Page 1 Digital Foil Printer AMD320 User Manual I. Appearance II. Technical Parameters Model AMD320 Printing Method Direct thermal or heat transfer method Max printing Width 40 mm Feeding width 6mm - 40mm Software Operating Environment Windows XP, Win 7, Win 8, Win 10...
- Page 2 * Store last file for next time offline printing. Key panel description： * Indicator light： Power ( Red ): indicator light, the machine is always on after power is on. Ready ( Blue ): Start Test, Replication Mode Lights Up. Note: Test button is only for testing by manufacturer.
-
Page 3: Driver Installation
III. Operating Guide 1. Prepare work (1) Install the foil and ribbon roll ( Please check video of machine installation ) (2) Switching on power and connect printer with computer by USB cable. (Pls check video) 2. Driver installation （ driver name: Foil Printer） Install printer driver on computer, suitable for Windows XP, Win 7, Win 8, Win 10, close the antivirus software temporarily... - Page 4 3. Design layout in Coreldraw, add “paper size” in printer driver, print out the design. ( Please check video if needed ) （1）Set page size 56mm*120mm Notice: width is default, length must be same of content you want to print. ( width 56mm is to make sure printing centered ) Eg.
- Page 5 （3）Then click Arrange - Align and Distribute - Center to page to finish design layout. paper size in printer driver （4）Add (pls check video) ( driver name Foil printer ) paper size must be same with page size in CorelDraw,56mmx120mm. ①...
- Page 6 ④ Find and click “Printer Settings” , click “Add”, comes out “New Paper”, Paper name can be any name you like, write “AB” or write “paper size”, Width: 56, Height (length): 120 same size to page size in coreldraw. Finish “paper size” adding. Back to design software Coreldraw: (1) Click “print”...
- Page 7 Foil Printer Driver Advanced Settings: Paper size: choose the newly added one mentioned in above. Copy Count: set 1 copy to try first, if no problem, can set more copies like 5. Normally only need to change “Print Concentration” and “Print Speed”. All other settings are no use, just set 0. Printing Concentration: Printing Color Depth.
- Page 8 Notice: If ribbon jammed, first switch off the power, then pull it manually. Printer Driver Settings Instructions： Paper Specification: Paper size must be same with page size in CorelDraw, Printing Concentration: Printing Color Depth. Printing speed: Adjusting different speed according to printing demand. Edge Enhancement: Increase the temperature of print content contour.
- Page 9 If printer is used a lot, clean it once a day. If printer is used less, clean it up every few days. This helps to extend life of printing head. Notice: USB cable Once foil printer and computer is connected by USB cable, do not often plug and unplug the USB cable on the printer side, can unplug cable on computer side.
- Page 10 4. When the errors between the printed position and the software design position are left and right: 1) Content Location in Mobile Computer Layout. 2) Position of ribbon. 3) Paper specification width selected in printer settings is not 56mm. 5. Ineffective printing: 1) Please use the smooth surface ribbon, such as satin ribbon.
-
Page 11: Warranty Instructions
VI. Warranty Instructions 1. The warranty period, the product in normal operation and use failure, without private repair, from the purchase date within one year to enjoy free warranty service ( Print head 3 months warranty count from receipt of goods). 2.
