I. Appearance
II. Technical Parameters
Model
Printing Method
Max printing Width
Max feeding width
Software Operating Environment
Interface
Power Supply
Max Power Consumption
Packing size
G.W./N.W.
Resolution
Font line
Printing material
Features:
* China first digital foil printer realize foil saving function.
* Multi paper sheets feed in automatically at one time.
* USB output, performance is stable.

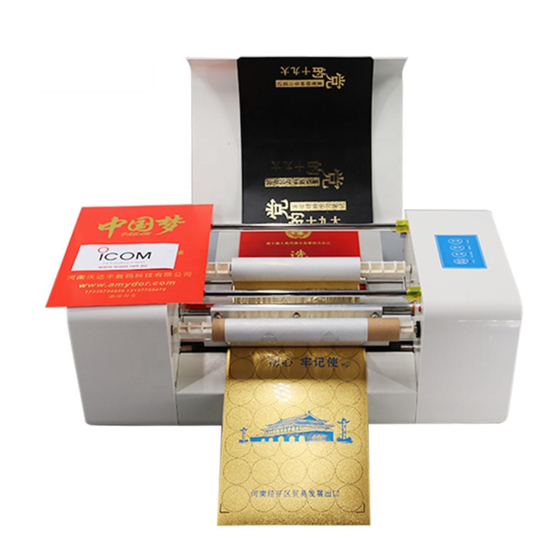

Digital Foil Printer AMD360C
User Manual
AMD360C
Direct thermal or heat transfer method
252 mm
350mm
Windows XP, Win 7, Win 8, Win 10
USB
AC110~240V, 50/60Hz / as needed
400W
74cm*42cm*35cm
22kg /19kg
200*400dpi
At least 0.25mm
Must be smooth and flat
- 1 -
Advertisement
Related Manuals for Amydor AMD360C
Summary of Contents for Amydor AMD360C
- Page 1 Digital Foil Printer AMD360C User Manual I. Appearance II. Technical Parameters Model AMD360C Printing Method Direct thermal or heat transfer method Max printing Width 252 mm Max feeding width 350mm Software Operating Environment Windows XP, Win 7, Win 8, Win 10...
- Page 2 * Support global design software such as CorelDRAW, AI, PhotoShop etc. * The best print head Japan Rohm -- precision thermal print head, quality assurance. * Store last file for next time offline printing. Key panel description： * Indicator light： Power ( Red ): indicator light, the machine is always on after power is on.
- Page 3 III. Operating Guide 1. Prepare work (1) Install the foil roll ( Please check video for foil installation ) (2) Switching on power and connect printer with computer by USB cable. (Pls check video) 2. Driver installation （ driver name: AMD Printer） Install printer driver on computer, suitable for Windows XP, Win 7, Win 8, Win 10, close the antivirus software temporarily...
- Page 4 3. Design layout in Coreldraw, add “paper size” in printer driver, print out the design. ( Please check video if needed ) （1）Set page size 252mm*297mm Notice: width is default, length must be same to length of printing material ( width 252mm is to make sure printing centered ) Eg.
- Page 5 （3）Then click Arrange - Align and Distribute - Center to page to finish design layout. paper size in printer driver （4）Add (pls check video) ( driver name AMD printer ) paper size must be same with page size in CorelDraw, 252mmx297mm. ①...
- Page 6 ④ Find and click “Printer Settings” , click “Add”, comes out “New Paper”, Paper name can be any name you like, write “AB” or write “paper size”, Width: 252, Height (length): 297 same size to page size in coreldraw. Finish “paper size” adding. Back to design software Coreldraw: (1) Click “print”...
- Page 7 AMD Printer Driver Advanced Settings: Paper size: choose the newly added one mentioned in above. Copy Count: set 1 copy to try first, if no problem, can set more copies like 5. Normally only need to change “Print Concentration” and “Print Speed”. All other settings are no use, just set 0. Printing Concentration: Printing Color Depth.
- Page 8 Notice: If paper jammed, pull it out manually after switching off the power. Printer Driver Settings Instructions： Paper Specification: Paper size （Take A4 paper as an example to select "252mmX297mm"; A3 paper as "252mmX420mm"; please refer to the paper specifications and additions and instructions.） Number of copies: Input copies according to demand.
- Page 9 Clean printing head regularly with alcohol by cotton swab or tissue. If printer is used a lot, clean it once a day. If printer is used less, clean it up every few days. This helps to extend life of printing head.
- Page 10 1) Check to see if there is a task error in the Foil printer printer. Resend the task after clearing all the tasks. 2) Check if the data line is validly connected. 3) The printer used is not right, choose Foil printer printer. 3.
-
Page 11: Warranty Instructions
forbidden to clean the printer head without power cut in order to avoid damage to the printer head. 5. Equipment must be effectively connected to ground wires, which need to be grounded separately and not connected to other equipment ground wires. 6.
