Amydor AMD360A User Manual

Digital foil printer
Hide thumbs

Advertisement

Quick Links

Download this manual

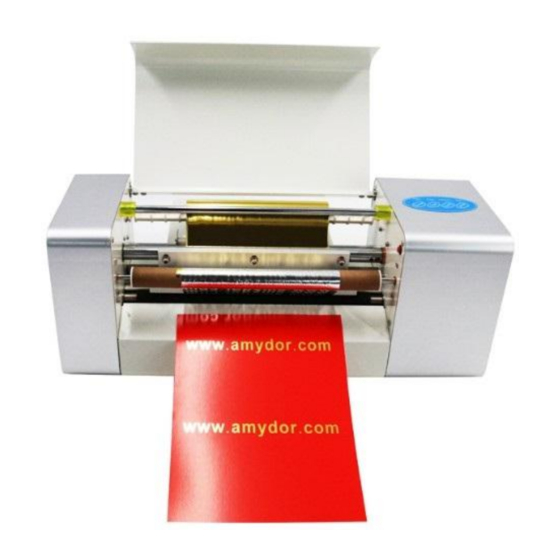

I. Appearance
II. Technical Parameters
Model
Printing Method
Max printing Width
Max feeding width
Software Operating Environment
Interface
Power Supply
Max Power Consumption
Packing size
G.W./N.W.
Resolution
Font line
Printing material
Features:
* Digital plateless printing. No need mould/die.
* Paper is manual feeding.
* USB output, performance is stable.
Digital Foil Printer AMD360A
User Manual
AMD360A
Direct thermal or heat transfer method
252 mm
350mm
Windows XP, Win 7, Win 8, Win 10
USB
AC110~240V, 50/60Hz / as needed
400W
74cm*36cm*35cm
16kg /14kg
200*400dpi
At least 0.25mm
Must be smooth and flat
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMD360A and is the answer not in the manual?

Questions and answers

Related Manuals for Amydor AMD360A

Summary of Contents for Amydor AMD360A

  • Page 1 Digital Foil Printer AMD360A User Manual I. Appearance II. Technical Parameters Model AMD360A Printing Method Direct thermal or heat transfer method Max printing Width 252 mm Max feeding width 350mm Software Operating Environment Windows XP, Win 7, Win 8, Win 10...
  • Page 2 * Support global design software such as CorelDRAW, AI, PhotoShop etc. * The best print head Japan Rohm -- precision thermal print head, quality assurance. Key panel description： * Indicator light： Power ( Red ): indicator light, the machine is always on after power is on.
  • Page 3 III. Operating Guide 1. Prepare work (1) Install the foil roll ( Please check video for foil installation ) (2) Switching on power and connect printer with computer by USB cable. (Pls check video) 2. Driver installation （ driver name: AMD Printer） Install printer driver on computer, suitable for Windows XP, Win 7, Win 8, Win 10, close the antivirus software temporarily...
  • Page 4 3. Design layout in Coreldraw, add “paper size” in printer driver, print out the design. ( Please check video if needed ) （1）Set page size 252mm*297mm Notice: width is default, length must be same to length of printing material ( width 252mm is to make sure printing centered ) Eg.
  • Page 5 （3）Then click Arrange - Align and Distribute - Center to page to finish design layout. paper size in printer driver （4）Add (pls check video) ( driver name AMD printer ) paper size must be same with page size in CorelDraw, 252mmx297mm. ①...
  • Page 6 ④ Find and click “Printer Settings” , click “Add”, comes out “New Paper”, Paper name can be any name you like, write “AB” or write “paper size”, Width: 252, Height (length): 297 same size to page size in coreldraw. Finish “paper size” adding. Back to design software Coreldraw: (1) Click “print”...
  • Page 7 AMD Printer Driver Advanced Settings: Paper size: choose the newly added one mentioned in above. Copy Count: set 1 copy to try first, if no problem, can set more copies like 5. Normally only need to change “Print Concentration” and “Print Speed”. All other settings are no use, just set 0. Printing Concentration: Printing Color Depth.
  • Page 8 Printer Driver Settings Instructions： Paper Specification: Paper size （Take A4 paper as an example to select "252mmX297mm"; A3 paper as "252mmX420mm"; please refer to the paper specifications and additions and instructions.） Number of copies: Input copies according to demand. Printing Concentration: Printing Color Depth.
  • Page 9 Notice: USB cable Once foil printer and computer is connected by USB cable, do not often plug and unplug the USB cable on the printer side, can unplug cable on computer side. USB socket on motherboard may be pulled down, in this case, can only change a new motherboard or ask for a office printer’s repairman to weld a new USB socket.

  • Page 10: Warranty Instructions

    2) Position of Paper in Moving Cardboard. 3) Paper specification width selected in printer settings is not 252mm. 5. Ineffective printing: 1) Please use original genuine gilding paper. 2) Adjusting Printing Concentration and Printing Speed in Printer Settings. 3) Clean printing head with cotton swab and alcohol. 4) Gold-stamped paper with matching materials.
  • Page 11 count from receipt of goods). 2. The company and the vending unit only undertake the warranty and maintenance obligations of the product itself. (Please contact the vending unit to solve the problem of equipment failure in the process of using.) 3.
