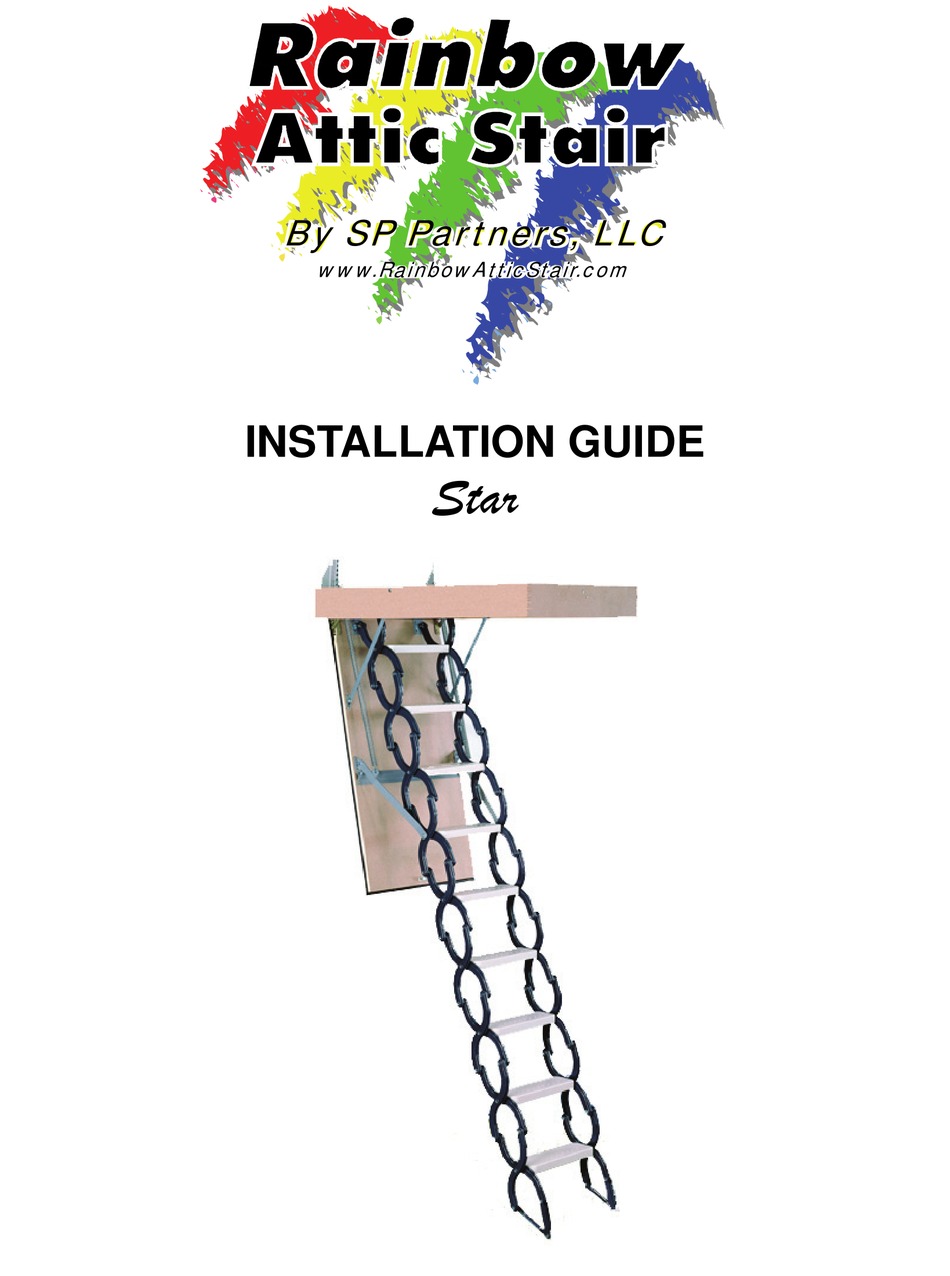

- Page 1 By SP Partners, LLC www.RainbowAtticStair.com INSTALLATION GUIDE Star...
-
Page 2: Important - Read This First
Failure to follow any or all of these guidelines can result in damage to the stair and will void the warranty. If you have any problems or concerns with stair, call SP Partners LLC immediately at 877-369-6996 Page 1 February 2011... -
Page 3: Tools/Materials Required
Tools / Materials Required Drill, tape measure, 1/4” wood drill bit, hammer, crescent wrench, wood shims, ladder, lumber with same dimensions as joists, keyhole saw or utility knife to cut ceiling material. Parts Included (10) 3” Lag Screw (1) Door Hook (1) Wood Pole (2) 1/2”... - Page 4 Read instructions carefully and completely before beginning installation. This stairway is for residential use only. Maximum capacity is 350 lbs. Installer should be experienced in the construction or modification of structural framing supports. Improper installation can result in stair collapse and bodily injury. ...
-
Page 5: Preparing The Opening
Locating the Stair Determine whether the chosen location allows sufficient “projection” and “landing space” for your unit. See Figure 1 and TABLE A. Figure 1 Preparing the Opening Mark out the rough opening size for your unit according to TABLE A. Cut the rough opening through the ceiling material. - Page 6 HEADERS HEADERS JOIST BRACE JOIST BRACE Figure 2 Figure 3 Installing the Stair Be sure that there is adequate light in the attic since the stair will block any light from the room below when raised into place. Make sure door is closed and latch is engaged WARNING 1.
-
Page 7: Final Adjustments
Final Adjustments Before the stair can be climbed on, two critical adjustments must be made as shown in the following steps. Failure to follow these guidelines will result in damage to the stair and void the manufacturer’s warranty. WARNING 1. Insert hook provided into receptacle on door and pull door down until fully open. - Page 8 Final Adjustments - continued Adding Additional Step(s) Determine the correct number of steps required for your floor-to-ceiling height (See Table A on page 3). If no additional steps are needed, skip this section. 1. With stair fully extended to floor, detach bottom step by removing the four bolts, washers and sleeves. Figure 8.
- Page 9 Operating the Stair Refer to pictorial label on inside of door. Congratulations! You are now ready to begin using your Rainbow Attic Stair. As with any product, be sure to follow instructions for safe, efficient and trouble-free operation for years to come. *** Children should never be allowed to operate or climb any attic stair.
- Page 10 LIMITED WARANTY SP Partners, LLC warrants that the unit will be free from any defects in material and workmanship for two years from purchase date provided that the stair is installed in compliance with the preceding instructions and operated and maintained in accordance with these instructions and applicable warnings.
