Summary of Contents for SP PARTNERS Rainbow Attic Stair Galaxy G2755

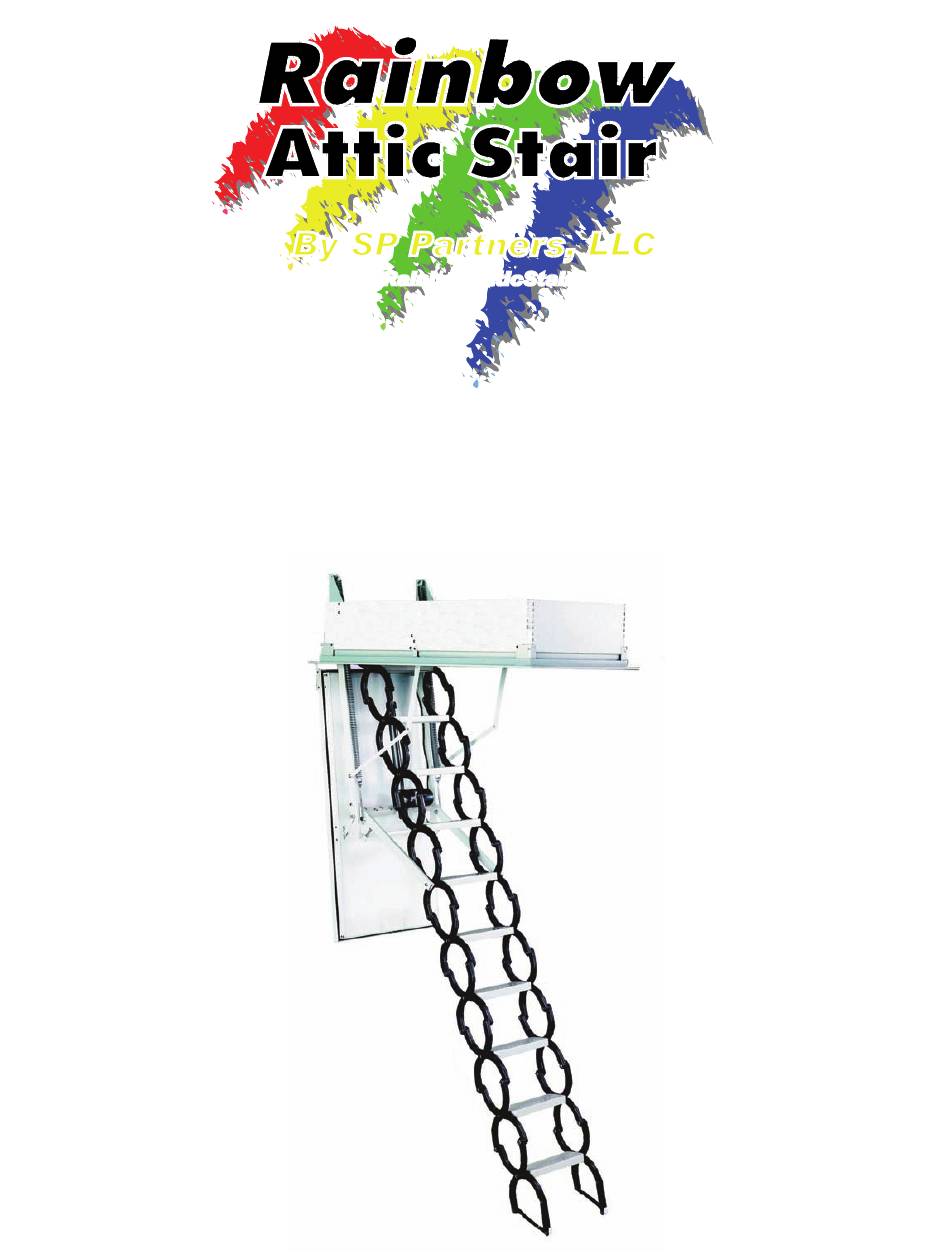

- Page 1 By SP Partners, LLC www.RainbowAtticStair.com INSTALLATION GUIDE Galaxy...
-
Page 2: Important Read This First
Failure to follow any or all of these guidelines can result in damage to the stair and will void the warranty. If you have any problems or concerns with stair, call SP Partners LLC immediately at 877-369-6996 Page 1 July 2014... -
Page 3: Tools/Materials Required
Tools / Materials Required Drill, tape measure, 1/4” wood drill bit, hammer, crescent wrench, wood shims, ladder, lumber with same dimensions as joists, keyhole saw or utility knife to cut ceiling material. Parts Included (4) 3/8” Threaded Rod (4) Joist Hanger (8) 3/8”... - Page 4 This stairway is for residential use only. Maximum capacity is 350 lbs. Installer should be experienced in the construction or modification of structural framing supports. Improper installation can result in stair collapse and bodily injury. Determine location of electrical lines or plumbing before cutting ceiling. WARNING Table A MODEL #...
-
Page 5: Preparing The Opening
Preparing the Opening 1. Mark out the rough opening size for your unit according to TABLE A. Note that the finished metal trim extends about 2” beyond the rough opening when the unit is installed (Figure 2). Allow clearance for this on all four sides. 2. - Page 6 Preparing the Stair Insert hex nuts provided into slot in metal frame corner and insert threaded rod into channel. Thread rod into nut as far as possible. Repeat process for all corners. See Figure 5. Figure 5 Installing the Stair ...
- Page 7 1/2” SLACK HEADERS Figure 7 Figure 6 There are two buttons on the remote. The center button will lower the stair, other button will raise it. See Figure 8. Press here to Press here to You will see a red light at tip when pressed. Lower Stair Raise Stair As a safety feature, the remote control will send a signal...
-
Page 8: Final Adjustments
Figure 9 Figure 10 Final Adjustments 1. Press and hold button to lower stair until halfway down. 2. Lower adjustment screw by turning as far as it will go. Do both sides. Figure 11 3. Lower stair using remote until stair touches floor. If stair should rise slightly from floor, have someone push down and hold while performing next step. - Page 9 If the problem persists, call your dealer or WARNING SP Partners at 877-369-6996. In the event of a power outage, the stair can be operated manually. The long pole with hook (Figure 7) is supplied for this purpose.
- Page 10 Figure 15 Figure 14 Stabilizer Figure 16 Figure 17 Congratulations! You are now ready to begin using your Rainbow Attic Stair. As with any product, be sure to follow instructions for safe, efficient and trouble-free operation for years to come. *** Children should never be allowed to operate or climb any attic stair.
- Page 11 Addendum Programming A Second Remote Step # 3 Step # 2 Step # 1 Press and release black button Press and hold remote control Press black button “A” twice.The “A” (top or bottom light go on) . button “B”. Bottom light in control other light comes on.
- Page 12 Addendum - Continued Fuses - Checking / Replacing There are two fuses located in the control box. They are spring loaded in a barrel housing. To remove, push down and turn counter-clockwise to release. Remove cap to check or re- place fuse.
- Page 13 Addendum - Continued Hard Wiring Instructions The Galaxy stair can be operated by use of the remote control (provided), a hard-wired wall switch (optional) or both. This guide will help you set up your unit for wall switch operation. The switch itself is purchased separately and is available at most hardware / home improvement stores or electrical supply houses.
- Page 14 Addendum - Continued Hard Wiring Instructions Step 3. After removing module, drill small access hole for wiring into con- Drill Hole Here trol box. Drill from the outside so shavings don’t enter. Thread wiring through hole before connecting to module. Step 4.
- Page 15 Addendum - Continued Hard Wiring Instructions The power light at the far right should be on. Test by having someone at the switch press the switch for both Up and Down. Corresponding light should go on when pressed, as shown below. ...
- Page 16 Addendum - Continued Troubleshooting Guide Condition Check - Door will not open or close. - Check remote battery (battery is good if tip lights red when buttons pressed). - Check outlet where control unit is plugged in for power. - Open control box and check if power light is on. See page 14. - Check fuses.
- Page 17 In no event shall SP Partners, LLC be liable for any breach of warranty and/or for any negligence and/or for any strict liability which would exceed in damage amount the cost of the stair unit.
