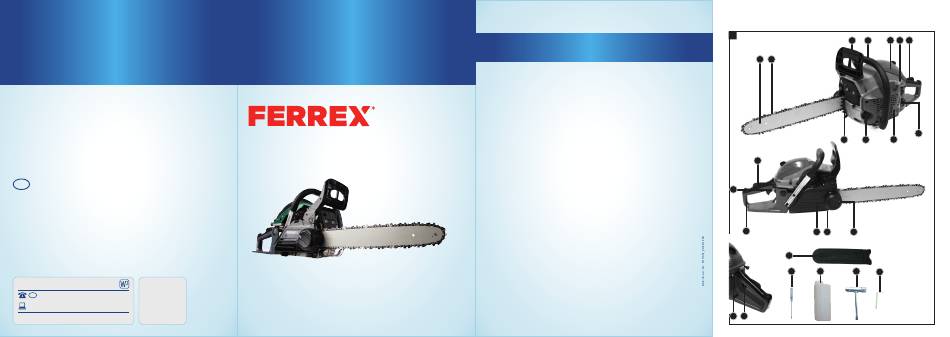

User Manual
46CC PETROL CHAINSAW
Contents
Overview ..................................................................................... 3
Package contents/part list ......................................................... 6
Explanation of Symbols .............................................................. 9
Introduction ...............................................................................12
Layout .........................................................................................13
Scope of delivery ........................................................................14
Intended use ..............................................................................15
Safety regulations ......................................................................16
Set up ......................................................................................... 28
Operation ....................................................................................31
Operating instructions .............................................................. 34
Cleaning .....................................................................................40
Maintenance and servicing ......................................................40
Technical data ...........................................................................48
Storage ...................................................................................... 49
Transport ................................................................................... 50
Disposal and recycling .............................................................. 50
Troubleshooting .........................................................................51
Warranty Details ........................................................................ 53
1
3
4
5
6
7
1
2
9
11
10
16
17
15
14
13
12
20
21
22
23
24
19 18
3
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPCS46 E1 and is the answer not in the manual?

Questions and answers

Carol springer
May 18, 2025

What type of oil do you use

0
1 comments:
Mr. Anderson
May 23, 2025

For the FERREX FPCS46 E1, it is recommended to use standard 2-stroke oil with a proper fuel mixing ratio, but not 2-stroke oil with a 100:1 ratio. Standard chain oil is recommended for lubricating the chain and chain bar.

This answer is automatically generated

0
Andrew Cronshaw
March 24, 2025

Please can you tell me the type of oil for Ferrex WE-PP-750 704812 Chain Saw

0

Related Manuals for FERREX FPCS46 E1

Summary of Contents for FERREX FPCS46 E1

  • Page 1: Table Of Contents

    Troubleshooting .................51 ALDI STORES Warranty Details ................ 53 1 SARGENTS ROAD Repair and Refurbished Goods or Parts Notice ....... 54 MINCHINBURY NSW 2770 www.aldi.com.au AFTER SALES SUPPORT 705551 1300 855 831 support@scheppach.com.au YEAR MODEL: 19 18 WARRANTY FPCS46 E1 04/2021...

  • Page 2: Package Contents/Part List

    Package contents/part list Petrol Chainsaw Chain guard Spark plug wrench Allen key Screwdriver Fuel mixing bottle Warranty card Instruction manual Abschließender Schnitt hier. 5 cm über der Keilmitte. 5 cm Pos.4 Erster Pos.1 Pos.4 Schnitt Pos.1 Pos.1 Fluchtweg Pos.2 Keil Pos.2 5 cm Pos.2...
  • Page 3 Kapitelüberschrift Erster Schnitt auf belasteter Pos.1 Pos.1 Stammseite Pos.1 Pos.2 Oberschnitt Unterschnitt Pos.1 Pos.2 Zweiter Schnitt Pos.2 Pos.2 Zweiter Schnitt Erster Schnitt auf der belasteten Mit Stützbock Stammseite Pos.2 Schnitt Mit Stammseite Pos.2 Pos.2 Schnitt Pos.2 Pos.1 Schnitt Pos.1 Schnitt Pos.1 Pos.1 Pos.1...
  • Page 4 Kapitelüberschrift...

  • Page 5: Explanation Of Symbols

    Explanation of Symbols Kapitelüberschrift Explanation of Symbols The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly un- derstood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.
  • Page 6 Kapitelüberschrift Explanation of Symbols Fuel filler cap Filling hole for chain oil Choke knob Adjustments for carburettor: ( L ) Low Speed ( H ) High Speed ( T ) Idle Speed Setting the chain tension: White arrow: Loosen chain Black arrow: Tighten chain Installation direction of chain Fuel mixing ratio...
  • Page 7 Explanation of Symbols Kapitelüberschrift Service category Do not expose the package to moisture Contents are fragile Always store the package upright Dispose the packaging in an appropriated recydling center...

  • Page 8: Introduction

    Kapitelüberschrift Introduction Introduction Congratulations on choosing to buy a FERREX product. ® All products brought to you by FERREX are manufactured to the highest standards ® of performance and safety, and as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

  • Page 9: Layout

    Kapitelüberschrift Layout Layout (Fig. 1) Chain bar Saw chain Chain brake lever / front hand guard Front handle Air filter cover Starter handle Safety lock Fuel tank cap Fan housing Oil tank cap Spiked bumper Chain tensioning wheel Chain catcher Bar fastening wheel (knob &...

  • Page 10: Scope Of Delivery

    Kapitelüberschrift Scope of delivery Scope of delivery Petrol Chainsaw (1x) Chain guard (1x) Spark plug wrench (1x) Allen key (1x) Screwdriver (1x) Fuel mixing bottle (1x) Warranty card (1x) Instruction manual (1x) Open the packaging and take out the equipment with care. •...

  • Page 11: Intended Use

    Kapitelüberschrift Intended use Intended use The chainsaw is designed exclusively for sawing wood. You may only fell trees if you have received the appropriate training. The manufacturer cannot be held liable for damage caused by improper or incorrect usage. DO NOT operate a chainsaw whilst working in a tree. The machine is to be used only for its prescribed purpose.

  • Page 12: Safety Regulations

    Kapitelüberschrift Safety regulations Safety regulations In this user manual, we have marked sections concerning your safety with this sign: m The user manual also contains other important text marked with the word “CAUTION!” m CAUTION! When using machines, safety measures must be complied with in order to prevent injury and damage.
  • Page 13 Safety regulations Kapitelüberschrift General safety notices m CAUTION!: When working with tools that use fuel, the following basic rules must be followed in order to minimise the risk of physical injury and/or dam- age to the machine. Read these notices before using the saw, and store them safely. 1.
  • Page 14 Kapitelüberschrift Safety regulations Only cut timber. Do not use the chainsaw for work for which it is not suita- ble. Do not use the chainsaw for cutting plastic, masonry or building ma- terials which are not made of wood, for example. 17.
  • Page 15 Safety regulations Kapitelüberschrift 9. Before every cross-cut, firmly position the spike bar and only then saw in- to the wood with the chainsaw running. The saw is then lifted up using the rear grip and guided using the front handle. The spike bar acts as a pivot point.
  • Page 16 Kapitelüberschrift Safety regulations that operating staff, helpers or onlookers may get injured. A chainsaw has been designed for use with both hands. • Wear your Personal Protective Equipment (PPE), consisting of: Cut-resistant and non-slip safety shoes, cut-protection trousers, hi-vis vest or jacket in signal colours, gloves and a helmet with visor and hear- ing protection.
  • Page 17 Safety regulations Kapitelüberschrift m DANGER Never refuel the machine close to an open flame. SPECIAL SAFETY REGULATIONS FOR THE USE OF INTERNAL COMBUSTION MO- TORS m DANGER Internal combustion motors are a particular danger during operation and re- fuelling. Always read and follow the warnings. Non-compliance can lead to severe and even lethal injuries.
  • Page 18 Kapitelüberschrift Safety regulations 11. Never put objects into the venting slots. This also applies when the ma- chine is turned off. Non-compliance can cause injuries or damage to the machine. 12. Keep the tool free from oil, dirt and other contaminants. 13.
  • Page 19 Safety regulations Kapitelüberschrift Warning notices for chainsaws • When the saw is running, keep all body parts away from the saw- chain. Before starting the saw, ensure that nothing touches the saw- chain. When working with a chainsaw, a moment of carelessness can cause clothing or body parts to be caught by the saw-chain.
  • Page 20 Kapitelüberschrift Safety regulations Kickback is the consequence of incorrect or erratic use of the machine. It can be prevented by appropriate safety measures such as described below: • Hold the saw with both hands, ensuring thumbs and fingers clasp the handles of the chainsaw. Position your body and arms in such a way that you can withstand kickback forces.
  • Page 21 Safety regulations Kapitelüberschrift Before storing the chainsaw in a closed room, allow the motor to cool down. • In order to reduce the risk of fire, keep the motor sound absorbers and fuel • storage area free from organic material and excessive lubricant. Long-term storage/packing away for winter If you are storing the machine long-term or for winter, remove all the fuel.
  • Page 22 Kapitelüberschrift Safety regulations Remaining risks m DANGER MECHANICAL HAZARDS created by cutting and impact, related to the saw chain. ELECTRICAL HAZARDS from contact with parts under high voltage (direct contact) or parts which have become high voltage under faulty conditions (indirect contact). THERMAL HAZARDS which can result in burns, scalds and other injuries, created by possible con- tact of persons with objects or materials with high temperature including the...
  • Page 23 Safety regulations Kapitelüberschrift RISK OF INJURY ! Contact with the saw-chain can lead to fatal cutting injuries. Never put your hands into the running saw-chain. RISK OF KICKBACK! Kickback can lead to fatal cutting injuries. RISK OF BURNING! The chain and the guide bar heat up during operation. Behaviour during an emergency Start First Aid measures relevant to the injury and request medical help as quickly as possible.

  • Page 24: Set Up

    Kapitelüberschrift Set up Set up Before starting the equipment This chainsaw is supplied ready-assembled. Check that all moving parts move smoothly before you start using the equipment. Check that all screws are securely fastened and also check all the safety devices. Before adding fuel and starting the chainsaw, you must check the tension of the chain in case some of the fixings have come loose in transit.
  • Page 25 Kapitelüberschrift Set up Then slacken the chain tension by slowly turning the chain tensioning wheel (Fig. 2/pos. 12) in a ANTI-CLOCKWISE DIRECTION and then pull the chain back and forth on the bar (Fig. 4). Continue until the chain can be moved smoothly but is still closely seated (Fig.
  • Page 26 Kapitelüberschrift Set up m WARNING The brake lever should snap into both positions. If strong resistance is felt, or the lever does not move into either position, do not use your saw. Take it immediately to a professional Service Centre for repair. 5.

  • Page 27: Operation

    Kapitelüberschrift Set up/Operation 6. FUEL MIXING TABLE Mixing Procedure: 40 parts petrol to 1 part 2-stroke oil. Petrol 2-stroke oil 1 litre 25 ml 5 litres 125 ml m CAUTION Never start or operate the saw unless the bar, chain and chain brake lever / front hand guard are properly installed.
  • Page 28 Kapitelüberschrift Operation Starting the engine when cold Make sure, that the fuel tank is filled with the relevant mixture of petrol and also top up the chain oil. Activate the chain brake before starting (Fig. 6/pos 3). Switch the stop switch to ‘0’ (OFF) (Fig. 8 / pos 19). Pull the choke (16) fully out until it locks (Fig.
  • Page 29 Kapitelüberschrift Operation Starting the engine when warm (The equipment has been idle for less than 15-20min) Fill up the fuel tank with the relevant mixture of petrol and oil (Fig. 7), and also top up the chain oil (Fig. 7). See the section ‘Fuel and oil’. Activate the chain brake before starting (Fig.

  • Page 30: Operating Instructions

    Kapitelüberschrift Operating Instructions Operating Instructions m WARNING Beware of the following: • Rotary recoil (Fig. 12) A = Recoil distance / B = Recoil reaction zone • Impact/Jamming recoil and pulling reactions (Fig. 13) A = Pull / B = Solid objects / C = Push •...
  • Page 31 Operating Instructions Kapitelüberschrift Felling trees - only with relevant training m CAUTION Watch out for broken or dead branches which may fall down during sawing and which could cause severe injuries. Do not saw close to buildings or power lines if you do not know in which direction the felled tree will fall.
  • Page 32 Kapitelüberschrift Operating Instructions m NOTICE If the tree has large prop/buttress roots, these should be removed before the wedge is cut. If the saw is used for removing the prop/buttress roots, the saw-chain should not touch the ground so the chain does not become blunt. Undercut and felling the tree (Fig.
  • Page 33 Operating Instructions Kapitelüberschrift m CAUTION Do not stand on the log you are currently cutting. The log could roll away and you may lose your footing and control of the device. Do not carry out sawing work on sloping ground. Important notices Only ever saw one log or branch.
  • Page 34 Kapitelüberschrift Operating Instructions Log division without supports (Fig. 19) Using topping (Pos. 1), saw 1/3 of the way into the tree. • Turn the log around and make a second top cut (Pos. 2). • When sawing on the compression side, make sure the saw does not get jammed. •...
  • Page 35 Operation Instructions Kapitelüberschrift Trimming Do not start trimming the tree before it has been felled. Only then can you carry • out the trimming safely and properly. Leave larger branches underneath the felled tree and use them as a support •...

  • Page 36: Cleaning

    Kapitelüberschrift Cleaning/Maintenance and servicing Cleaning m CAUTION Set the stop switch (Fig. 8/pos. 19) ‘0’ stop before doing any cleaning and main- tenance work! Carrying out any cleaning work The equipment should be cleaned thoroughly every time after it has been used. This applies particularly to the chain and bar.
  • Page 37 Maintenance and servicing Kapitelüberschrift Squeeze the throttle lever (Fig. 1/pos. 18), then immediately activate the chain brake lever (Fig. 6/pos. 3). m CAUTION Activate the chain brake slowly and deliberately. Keep the chain from touching any- thing, don’t let the saw tip forward. Chain should stop abruptly.
  • Page 38 Kapitelüberschrift Maintenance and servicing Fuel Filter m NOTICE Never use the saw without a fuel filter. After 100 hours in operation the fuel filter should be cleaned or, in case of damage, replaced. Be sure to empty the fuel tank before changing the filter.
  • Page 39 Maintenance and servicing Kapitelüberschrift NOT USE ANY OTHER TOOLS. Clean the spark plug with a copper wire brush and refit it, or fit a new spark plug. Carburettor and idling speed settings m NOTICE Settings on the carburettor may only be made by authorised customer service per- sonnel.
  • Page 40 Kapitelüberschrift Maintenance and servicing the chain bar. Lubrication is possible during work, with the engine switched off. m CAUTION Wear heavy duty work gloves when handling the bar and chain. Most guide bar problems can be prevented merely by keeping the chainsaw well maintained.
  • Page 41 Maintenance and servicing Kapitelüberschrift Cutting links with different width and length can cause a kickback. m NOTICE A sharp chain produces well-defined chips. When your chain starts to produce sawdust, it is time to sharpen. After the blades have been sharpened 3-4 times, check the height of the depth limiter and if necessary lower it with a flat file and then round off the front corner.
  • Page 42 Kapitelüberschrift Maintenance and servicing CHAIN MAINTENANCE (CONTINUED) Chain tension Check the chain tension frequently and adjust as often as necessary to keep the chain snug on the bar, but loose enough to be pulled around by hand. Breaking in a new saw chain A new chain and bar will need chain readjustment after as few as 5 cuts.
  • Page 43 Maintenance and servicing Kapitelüberschrift To install the saw chain Spread the chain out in a loop with the cutting edges (Fig. 29) pointing CLOCK- WISE around the loop. Slip the chain around the sprocket behind the clutch as shown in figure 29. Make sure the links fit between the sprocket teeth.

  • Page 44: Technical Data

    Kapitelüberschrift Maintenance and servicing/Technical data To check the chain lubrication, hold the chainsaw, with the chain, over a piece of paper and run it at full speed for a few seconds. You will be able to judge the set amount of oil from the paper. If it requires adjusting, take the saw to your nearest authorised after-sales service outlet.

  • Page 45: Storage

    Technical data/Storage Kapitelüberschrift Keep the noise emissions and vibrations to a minimum. • Only use appliances which are in perfect working order. • Service and clean the appliance regularly. • Adapt your working style to suit the appliance. • Do not overload the appliance. •...

  • Page 46: Transport

    Kapitelüberschrift Storage/Transport/Disposal and recycling Leave the engine to cool (approx. 5 minutes). Remove the spark plug. You will need the supplied combined spark plug span- ner/screwdriver. Add one teaspoon of 2-stroke engine oil into the combustion chamber. Slowly pull the starter cord several times to apply a layer of oil to all internal parts.

  • Page 47: Troubleshooting

    Kapitelüberschrift Troubleshooting Troubleshooting The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.
  • Page 48 Kapitelüberschrift Troubleshooting Poor performance Blunt chain. Sharpen or replace the chain. when operated Loose chain. Tension the chain. Empty petrol tank. Fill up the petrol tank. Fuel filter in the Completely fill the petrol tank or Engine dies wrong position in the re-position the fuel filter in the petrol tank.

  • Page 49: Warranty Details

    46CC PETROL CHAINSAW Warranty Details TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion.

  • Page 50: Repair And Refurbished Goods Or Parts Notice

    46CC PETROL CHAINSAW Repair and Refurbished Goods or Parts Notice TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. ...
