EdingCNC CPU5A4E Manual page 9

Advertisement

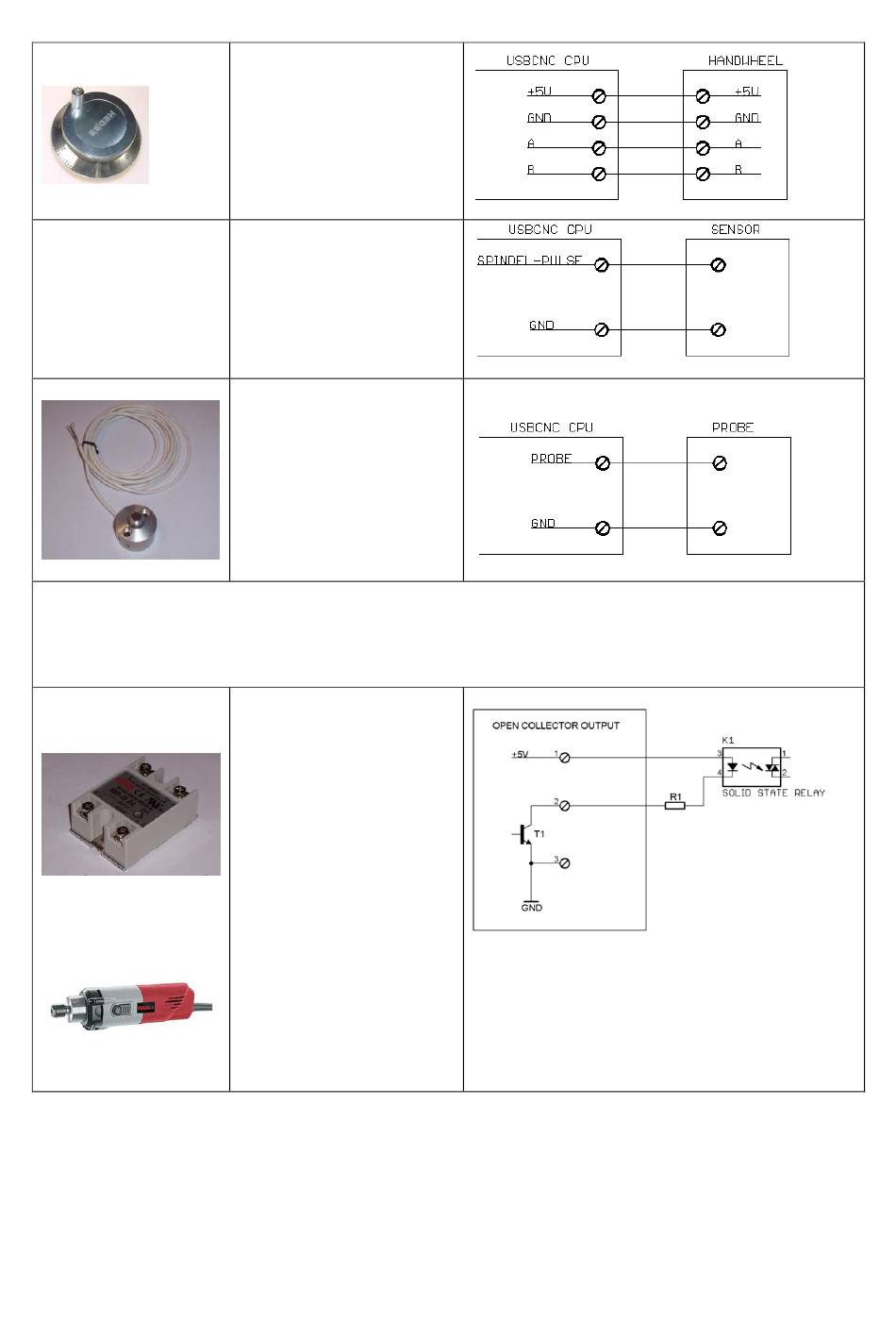

Handwheel
Spindle sensor
This is required for
Lathe Thread cutting
Probe
TOOL (Kress) - VFD - FLOOD - MIST -AUX1
TOOL FLOOD MIST AUX
SOLID STATE RELAY
+5 Volt handwheel
Ask your dealer
A probe can be a normally
open or normally closed
switch.
Connection of the outputs
This is the way I recommend,
Use a solid state relay.
A solid state relay causes no
sparks, very little EMV noise.
