So the first selected axis in the setup is connected to STEP1/DIR1 the next to STEP2/DIR2 etc.

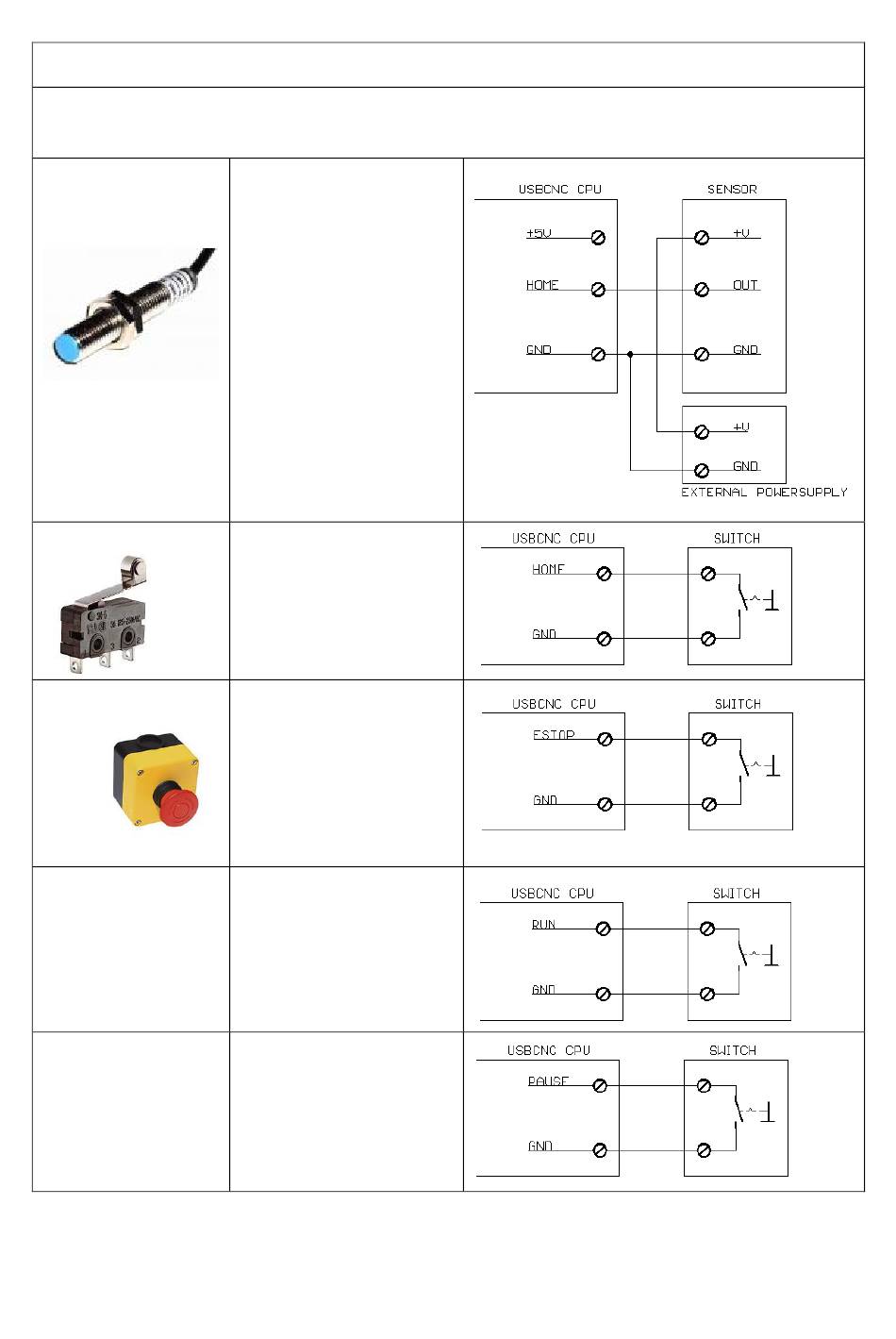

HOME - ESTOP - PAUSE - RUN - HANDWHEEL - SPINDLE-SENSOR
INDUCTIVE HOME
SENSORS
SIMPLE HOME SWITCH
ESTOP
SWITCH
RUN SWITCH
Any push button switch
PAUSE SWITCH
Any push button switch
Connection of the inputs
NPN Type
Normally Open Type
HomeInputSenseLevel = 0
Normally Closed Type
HomeInputSenseLevel = 1
Normally Open
EStopInputSenseLevel = 0
Normally Closed
EStopInputSenseLevel = 1
Auto detect
Normally closed
