User's Manual

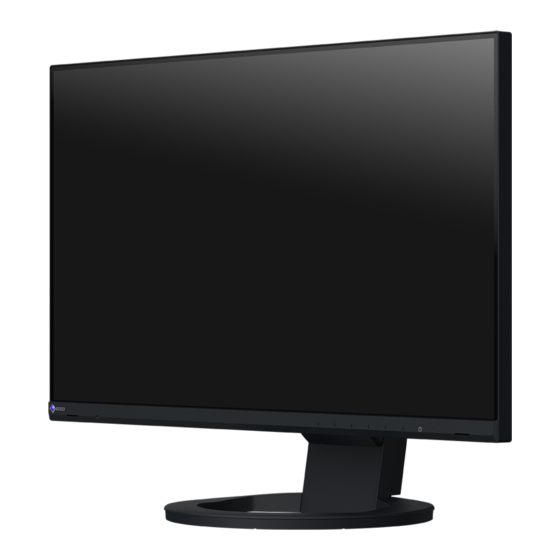

Color LCD Monitor
Important
Please read this "User's Manual", and "PRECAUTIONS" (separate
volume) carefully to familiarize yourself with safe and effective
usage.
• Refer to the "Setup Guide" for information on the installation /
connection of the monitor.
• For the latest product information including the "User's Manual",
refer to our web site :
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo FlexScan EV2490
Summary of Contents for Eizo FlexScan EV2490
- Page 1 User’s Manual Color LCD Monitor Important Please read this “User’s Manual”, and “PRECAUTIONS” (separate volume) carefully to familiarize yourself with safe and effective usage. • Refer to the “Setup Guide” for information on the installation / connection of the monitor. •...
- Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO product specifications are subject to change without notice.
-
Page 3: Notice For This Product
When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not press on the LCD panel or edge of the frame strongly, as this may result in display malfunctions, such as interference patterns, etc. -
Page 4: Cleaning
About the Installation If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use. When the product is cold and brought into a room or the room temperature goes up quickly, dew condensation may occur on the interior and exterior surfaces of the product. -
Page 5: Table Of Contents
CONTENTS Chapter 5 Troubleshooting ......28 Notice for this product ......... 3 5-1. No Picture ............ 28 Cleaning ..............4 5-2. Imaging Problems ........30 To use the monitor comfortably ......4 5-3. Problems Related to Daisy Chain CONTENTS ............. 5 Connection ...........31 Chapter 1 Introduction ........ -
Page 6: Chapter 1 Introduction
Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features ● Docking Station Function This product is equipped with a LAN port and USB hub so that it can be used as a docking station. -
Page 7: Daisy Chain Connection
● Daisy Chain Connection The monitor comes equipped with a USB-C output terminal ( ). When the PC and the monitor are connected by USB-C or DisplayPort, the USB-C output terminal of the monitor can be used to connect a maximum of 4 monitors in a daisy chain. Note •... -
Page 8: Reduction Of Power Consumption
● Reduction of Power Consumption This product provides a function that automatically adjusts the screen brightness to reduce power consumption . Power Reduction, CO Reduction, and Eco Performance Level can be checked on the "EcoView Settings" menu. (page • Auto EcoView The ambient light sensor on the front of the monitor detects the ambient brightness to automatically adjust the screen brightness to a comfortable level. -
Page 9: Controls And Functions
1-2. Controls and Functions ● Front 1. Speakers Outputs audio. 2. Ambient light sensor Detects ambient brightness. If you use Auto EcoView, the screen brightness is automatically adjusted according to the ambient brightness (page 14). 3. Operation switches Displays menus. Operate the switches according to the operation guide (page 16). -
Page 10: Rear
● Rear 6. Handle This handle is used for transportation. 7. Security lock slot Complies with Kensington’s MicroSaver security system. 8. Lock button Use this button to remove the monitor from the stand. 9. Headphone jack Connects to headphones. 10. USB-A connector Connects to a peripheral USB device (page 36). -
Page 11: Supported Resolutions
1-3. Supported Resolutions The monitor supports the following resolutions. Vertical scan Resolution DisplayPort HDMI USB-C frequency (Hz) 640 × 480 59.940 √ √ √ 640 × 480 60.000 √ √ √ 720 × 400 70.087 √ √ √ 720 × 480 59.940 √... -
Page 12: Chapter 2 Basic Adjustment / Setting
Chapter 2 Basic Adjustment / Setting This product enables users to change the brightness according to personal preference or to suit the usage environment, and to reduce power consumption to conserve energy. This chapter describes the basic functions that can be adjusted and set using the switches on the front of the monitor. -
Page 13: Switching Input Signals
2-2. Switching Input Signals When a monitor has multiple signal inputs, the signal to display on-screen can be changed. Note • "Screen InStyle" allows you to switch input signals using the shortcut keys on the keyboard. 2-3. Switching Display Modes (Color Modes) This product is preinstalled with color modes for various display purposes. -
Page 14: Conserving Energy
2-4. Conserving Energy This monitor is equipped with EcoView functions to enable users to conserve energy. If you use Auto EcoView, which is one of the EcoView functions, the screen brightness is automatically adjusted according to the ambient brightness. Setting Function Description Value... -
Page 15: Adjusting Brightness
2-5. Adjusting Brightness The brightness of the screen can be adjusted to suit the installation environment or personal preference. The screen brightness is adjusted by changing the brightness of the backlight (light source from the LCD back panel). Setting Value 0 to 100 2-6. -
Page 16: Chapter 3 Advanced Adjustment / Setting
Chapter 3 Advanced Adjustment / Setting This chapter describes the advanced monitor adjustment and setting procedures using the Setting menu. For basic functions, see “Chapter 2 Basic Adjustment / Setting” (page 12). 3-1. Basic Operation of the Setting Menu Menu display 1. -
Page 17: Setting Menu Functions
3-2. Setting Menu Functions ● Color Adjustment The color mode settings can be adjusted according to personal preference. The adjusted settings are saved for each color mode. Functions that can be adjusted differ depending on the color mode. √: Adjustable -: Not adjustable Color Mode Function User1... - Page 18 Setting Function Description Value Color Mode User1 Select the desired mode according to the monitor application. User2 The color mode settings can also be adjusted according to personal sRGB preference. Select the mode for adjustment and perform adjustment Paper using the relevant functions. Movie Note DICOM...
- Page 19 Setting Function Description Value Advanced Overdrive Enhanced This function allows you to set the overdrive intensity based on the Settings Standard use of the monitor. Image lag can be reduced by using the “Enhanced” setting when displaying moving images. Note •...
-
Page 20: Signal Settings
● Signal Settings Set the details regarding input signal, such as the screen display size and color format. Function Setting Value Description Picture Expansion Auto The screen size of the monitor display can be changed. Full Screen • “Auto” Aspect Ratio The monitor automatically changes the screen size Dot by Dot according to the aspect ratio and resolution information... - Page 21 Function Setting Value Description Input Color Format Auto The color format of the input signal can be specified. YUV 4:2:2 Try changing this setting if colors are not displayed correctly. YUV 4:4:4 Input Range Auto Depending on the video reproduction device, there may be a Full restriction on black and white video signal levels output to the Limited...
-
Page 22: Preference Settings
● Preference Settings The monitor’s settings can be configured to suit the usage environment or personal preference. Setting Function Description Value Daisy Chain When connecting a daisy chain, set to “On”. Note • When set to “On”, the communication speed for USB is restricted to USB 2.0. -
Page 23: Language
● Language The display language for menus and messages can be selected. Setting Value English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese Attention • The display language of the “Administrator Settings” menu cannot be changed. ● Information You can check the monitor information (model name, serial number (S/N), firmware version, usage time) and the input signal information. -
Page 24: Chapter 4 Administrator Settings
Chapter 4 Administrator Settings This chapter describes how to configure monitor operation using the “Administrator Settings” menu. 4-1. Basic Operation of the “Administrator Settings” Menu Menu display 1. Touch to turn off the monitor. 2. While touching the leftmost switch, touch for more than 2 seconds to turn on the monitor. -
Page 25: Functions Of The "Administrator Settings" Menu
4-2. Functions of the “Administrator Settings” Menu Function Setting Value Description Auto Input Detection On This function automatically recognizes the connector through which PC signals are input, and displays images on the screen accordingly. • “On” When the monitor is connected to multiple PCs, if a specific PC enters power saving mode or no signals are input to the monitor, the connector is automatically changed to another one to which signals are input. - Page 26 Function Setting Value Description You can switch between enabling and disabling of the USB port of the monitor. • "On" Enables the USB port. If you are using the following functions, set this function to "On". - Display of video signals using USB-C - Daisy chain function - Docking station function - USB Power Delivery...
- Page 27 Setting Value Description On-Screen Logo When the monitor is turned on, the EIZO logo and certification standard logos appear on the screen. When this function is set to “Off”, the logos do not appear. In order to prevent changes to settings, the operation switches on...
-
Page 28: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting 5-1. No Picture Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • Power indicator does not light up. • Turn on the main power switch on the rear side of the monitor. •... - Page 29 Problem Possible cause and remedy • This message appears when the • Check whether “USB” in the “Administrator Settings” menu is set to USB port of the monitor is disabled. “On” (see “USB” (page 26)). Example: Chapter 5 Troubleshooting...
-
Page 30: Imaging Problems
17)). (The LCD monitor backlight has a limited life span. If the screen becomes dark or begins to flicker, contact your local EIZO representative.) • If the screen is too bright, try changing the Auto EcoView setting to “On”. The monitor detects the ambient brightness to adjust the screen brightness automatically (see “Auto EcoView”... -
Page 31: Problems Related To Daisy Chain Connection
5-3. Problems Related to Daisy Chain Connection Problem Possible cause and remedy 1. The screen is not displayed. • For each monitor connected in the daisy chain connection, confirm the following. - Check whether “USB-C” or “DisplayPort” is selected for the input signal. -
Page 32: Other Problems
13)). • If the peripheral devices work correctly when they are directly connected to the PC, contact your local EIZO representative. • Check the PC’s BIOS setting for USB when using Windows. (Refer to the manual of the PC for details.) 5. -
Page 33: Chapter 6 Attaching/Removing The Stand
Chapter 6 Attaching/Removing the Stand 6-1. Removing the Stand The stand section of this product can be removed. Attention • Do not move the stand up and down after removing it. If you move the stand up and down while it is not attached to the monitor, this may cause damage or injury. -
Page 34: Attaching The Optional Arm
Not using an edge support when installed in these positions may lead to the front panel of the monitor coming off. If you require an edge support, please contact the EIZO group company or distributor in your country or territory. -
Page 35: Attaching The Original Stand
6-3. Attaching the original stand Lay the LCD monitor on a soft cloth spread over a stable and flat surface with the LCD panel surface facing down. Remove the fixing screws on the optional arm (or optional stand), and detach the optional arm (or optional stand). -
Page 36: Chapter 7 Reference
Chapter 7 Reference 7-1. Using the Docking Station Function This product is equipped with a LAN port and USB hub so that it can be used as a docking station. By connecting with USB, you can create a stable network environment even on notebook PCs or tablet devices that are not equipped with LAN ports. -
Page 37: Connecting Multiple Pcs
Attention • When the OS of the PC you are using is Windows 8.1, it is necessary to install the driver to use the LAN port. The driver is stored in the monitor. If you connect the PC and the monitor with a USB cable, the installation screen appears. - Page 38 When two PCs are connected to one monitor, you can link the input signals with the USB ports to use a USB device connected to the monitor from both PCs by switching between them. For details, refer to “KVM” (page 26) USB-A Downstream USB-C...
-
Page 39: Specifications
7-3. Specifications LCD Panel Type IPS (Anti-Glare) Backlight Size 23.8” (60.5 cm) Resolution 1920 dots × 1080 lines Display Size (H × V) 527.0 mm × 296.5 mm Pixel Pitch 0.275 mm × 0.275 mm Display Colors 8-bit colors: 16.77 million colors Viewing Angle 178˚... -
Page 40: Accessories
Network Port RJ-45 (USB LAN Adapter) Supported OS Microsoft Windows 10 (32-bit/64-bit) Microsoft Windows 8.1 (32-bit/64-bit) macOS Sierra (10.12) or later Wired LAN IEEE802.3ab (1000BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3 (10BASE-T) Power Input 100 - 240 VAC ±10 %, 50 / 60 Hz 1.60 A - 0.70 A Maximum Power 155 W or less Consumption... -
Page 41: Appendix
United States and other countries. EIZO, the EIZO Logo, ColorEdge, CuratOR, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorEdge Tablet Controller, ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO Monitor Configurator, EIZO ScreenSlicer, G-Ignition, i•Sound, Quick Color Match, RadiLight, Re/Vue, SafeGuard, Screen... - Page 42 03V29035B1 UM-EV2490 Copyright © 2021 - 2022 EIZO Corporation. All rights reserved. 2nd Edition - January, 2022...
