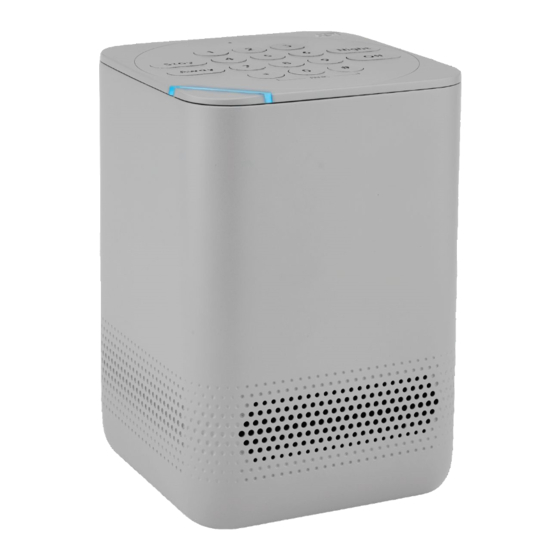

Blue smart home hub
Hide thumbs Also See for S40LR0-01:
Table of Contents

Advertisement

Quick Links

Blue by ADT security system setup guide
Blue Smart Home Hub
Part number: MAN4000
Revision: 1.1
1
8/7/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S40LR0-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Blue by ADT S40LR0-01

Summary of Contents for Blue by ADT S40LR0-01

  • Page 1 Blue by ADT security system setup guide Blue Smart Home Hub Part number: MAN4000 Revision: 1.1 8/7/2020...

  • Page 2: Table Of Contents

    Blue by ADT Motion Sensor SSM1R0-29 ................30 4.6. Adding the SSS1R0-29 Blue by ADT Smoke Detector ............32 4.7. Adding the SSW1R0-29 Blue by ADT Flood & Temperature Sensor........35 Settings ............................37 5.1. False alarm prevention and SIA CP-01 settings ..............39 Exiting Your Home ........................

  • Page 3: Important Information

    Important information 5017801 ETL Listed Household Residential Fire and Burglar Alarm Control System. Conforms to UL STD 985 and 1023. Test weekly to ensure proper operation of this system. WARNING: Do not connect any components to a receptacle controlled by a switch. This system should be checked by a qualified technician at least every 3 years.

  • Page 4: Recommendations For Protecting Your Home

    Additional locations. While not required by NFPA, it is recommended that smoke detectors be installed at each end of a hallway that is more than 40 feet long, and in the room where your Blue by ADT equipment is set up. A fire in the room with your Blue by ADT system could prevent the system from reporting the fire or an intrusion.

  • Page 5: Security Detection

    This includes near a washing machine, hot water heater, under sinks, and near toilets. Blue by ADT systems support two forms of communication, internet and cellular. It is recommended that you enable both forms of communications for redundancy. No network provider or Blue by ADT can always guarantee 100% availability of any network connection, therefore backup provides additional means for communications in the event of a fire.

  • Page 6: Component List

    Setting up your system All Blue by ADT products work together as a system to protect your home. They must be set up in a specific order to work properly. The Blue Smart Home Hub is set up first, followed by the auxiliary sensors and devices.
  • Page 7 Manufacturer’s published range should be used for comparative purposes only. The smart home hub must communicate to Blue by ADT using Wi-Fi or LTE cellular service (or a combination). The smart home hub must have a good Wi-Fi signal to your router. Please see the notes below on Wi-Fi signal coverage in a home.
  • Page 8 Power up the Blue Smart Home Hub Once you have placed the Blue Smart Home Hub, you can connect AC power. Use only the power supply model F18L10 supplied with your smart home hub. Do not use any other adapters. Insert the power adapter plug fully into the jack on the bottom of the smart home hub.
  • Page 9 Red button on bottom of unit. A momentary press of this button will cause the smart home hub to reboot. This is not a common need and it is recommended that you do not press this button unless a Blue by ADT customer service representative has instructed you to press the button.
  • Page 10 Your local municipality and police department will treat this as a false alarm. Users Blue by ADT allows for multiple User Codes, which will enable you to keep track of who arms and disarms your system. •...
  • Page 11 Blue Smart Home Hub settings • To manage settings of your smart home hub, launch your Blue by ADT app or log in to the web portal. From the app/web portal, you can manage the LED light settings as well as audio settings for turning on or off various chimes and tones. If you do not want to have the panic button enabled, you can also disable the panic button feature if desired.

  • Page 12: Z-Wave™ Statement

    4.1.1. Z-Wave™ statement The Blue Smart Home Hub is a Z-Wave Plus™ Product supporting the S2 Security Protocol with numerous capabilities described below. This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
  • Page 13 Sensors: The system does not currently support Z-Wave sensors. It is recommended that you use DECT/ULE sensors that can be purchased in the Blue by ADT store instead. Association Group information: This product supports Association Group 1 (Lifeline) with the maximum of 5 nodes. This product will send CC DEVICE_RESET_LOCALLY to the lifeline before performing default factory reset.
  • Page 14 Z-Wave network configuration, and the network devices will appear on the Blue by ADT iOS, Android, and web applications. When the smart home hub is included in another Z-Wave network, it will ignore Basic Z-Wave commands that are sent to it.
  • Page 15 network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. In order to factory reset your Z-Wave network, go to Settings > Devices > Choose your smart home hub > Open Advanced Settings and then select Z-Wave Reset Controller.
  • Page 16 DESCRIPTION OF CONTROLLED COMMANDS AND FUNCTIONS Controlled Command Classes Functions Include devices that support this CC. During configuring and interviewing, this device will COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION To establish Lifeline configuration during Inclusion attempt to configure/query association information using this CC. Add a sleeping device. When the sleeping device checks in, this product will send Wake up COMMAND_CLASS_WAKE_UP To set wake up interval and send wake up no more no more to the device.

  • Page 17: Smart Home Hub Led Light Guide

    4.1.2. Smart home hub LED light guide Your smart home hub has an LED light on the top of the unit. This quick reference guide will help you understand your system’s status on a day-to-day basis. Normal LED smart home hub light patterns •...

  • Page 18: False Alarm Prevention

    Note: 30 seconds is the default setting time. You may change the abort window time in your system settings. • Fire alarm verification: If your Blue by ADT Smoke Detector senses smoke, your smart home hub will wait 60 seconds to ensure that the smoke detector is still alarming before dispatching a signal to get help.
  • Page 19 The S40LRBR0-01 battery typically has a chemical life of at least 5 years. If this battery requires replacement, use only Blue by ADT Rechargeable Battery supplied with your Blue Smart Home Hub. Replacement batteries are also available through Blue by ADT Customer Support at 877-464-7437 or online at www.BluebyADT.com/support.

  • Page 20: Wireless Blue By Adt Keypad Skp3R0

    Pairing To pair your Blue by ADT Keypad with the smart home hub, launch your Blue by ADT app. Once logged in, select Menu > Devices > (+) Add Security Device > Blue Keypad, and follow the in-app setup help to pair to your system.
  • Page 21 Mounting: Note: The Blue by ADT Keypad should be located by an entrance in your home, like your front door or garage door. The keypad can either be mounted onto the wall or placed on a tabletop. The keypad should be within earshot of the smart home hub.
  • Page 22 Arming your system: You have a variety of options for arming and disarming your system with Blue by ADT. Depending on your needs, you may choose one of three different arming modes on the keypad: User Code STAY: Press the stay button and then enter your to arm in stay mode.
  • Page 23 Keypad settings To manage settings of your keypad at any time, launch your Blue by ADT app or log in to the web portal. From the app/web portal, you can control audio settings for turning on or off various chimes and tones.

  • Page 24: Blue By Adt Door & Window Sensor

    The Blue by ADT Smart Home Hub is the controlling hub that your sensors communicate with. To pair your sensors with the Blue Smart Home Hub, just launch your Blue by ADT app. Once logged in, select Menu > Devices > (+) Add Device >Sensors > Door & Window Sensor, and follow the in-app setup help to pair your sensor.
  • Page 25 5. Release the tamper switch while the LED is illuminated (it will be lit for 4 seconds). The sensor should then reset to factory default settings and begin searching for the Blue by ADT Smart Home Hub. If you need to reboot the device, remove the battery, depress and release the tamper switch one time, and then reinsert the battery.

  • Page 26: Wireless Blue By Adt Keychain Remote Skf3R0-29

    Keep away from small children. If batteries are swallowed, immediately see a doctor. California only: The Perchlorate warning only applies to Manganese Dioxide Lithium batteries sold or distributed in ONLY in California, USA. Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. 4.4. Wireless Blue by ADT Keychain Remote SKF3R0-29 8/7/2020...
  • Page 27 NOTE: As a child safety precaution, always keep the keychain remote out of reach of children The LED indicator blinks for 90 seconds while attempting to pair with the Blue by ADT Smart Home Hub. Upon completion of installation, verify that the keypad is working properly.
  • Page 28 This will again take 2 to 5 seconds, and then the LED will update to the new status. To arm your Blue by ADT system using the keychain remote, press and hold one of Away or Stay for 2 seconds.
  • Page 29 The * button is for future features and has no present function when pressed alone. Verify the keychain remote is working properly after initial setup. LED status The status LED will only operate while in use (i.e. while pressing keys and for 5 seconds thereafter). LED color ENGLISH Solid green...

  • Page 30: Blue By Adt Motion Sensor Ssm1R0-29

    To enable a new sensor: When the battery is inserted into the Blue by ADT Motion Sensor, the blue LED will blink for 90 seconds, which indicates the pairing process is occurring. If pairing is successful, the blue LED will be solid on for 3 seconds. If pairing fails, the red LED will be solid on for 3 seconds.
  • Page 31 Move away from the area that is in direct line of sight of the motion sensor (move to an adjacent room). Wait 3 minutes. Using the Blue by ADT mobile app go to Settings > System Tests > System Tests and enable sensor tests.

  • Page 32: Adding The Sss1R0-29 Blue By Adt Smoke Detector

    Note: Sensors and devices in a Blue by ADT system are preconfigured so they will be pre-paired to your system and can be added by simply inserting the battery, as shown in the following steps.
  • Page 33 Blue by ADT app. To continue with setting up a preconfigured smoke detector, launch your Blue by ADT app and follow the in-app setup help. Just follow these steps: •...
  • Page 34 Alarm: The red LED flashes continuously, and the buzzer sounds repetitively with 3 beeps, a pause, and 3 beeps. • Pairing: When the device is joining the Blue by ADT system, it flashes once per second for 90 seconds. •...

  • Page 35: Adding The Ssw1R0-29 Blue By Adt Flood & Temperature Sensor

    4.7. Adding the SSW1R0-29 Blue by ADT Flood & Temperature Sensor Before you get started You will need: • Blue by ADT Smart Home Hub • Blue by ADT app on the latest iOS or Android OS 8/7/2020...
  • Page 36 The Blue by ADT Smart Home Hub is the controlling hub that your sensors communicate with. To pair your sensors with the Blue Smart Home Hub, just launch your Blue by ADT app. Once logged in, select Menu > Devices > (+) Add Device > Sensors > Flood & Temperature Sensor, and follow the in-app setup help to pair your sensor.

  • Page 37: Settings

    Note: Replace the battery with a CR123A battery only. Settings The Blue by ADT application presents a menu for accessing the Settings of the system. Swipe to reach Settings icon, enter the Master Code, and select the device you wish to edit. The available settings are presented below for each type of device.
  • Page 38 Entry Delay 0 | 30 sec | 45 sec | 60 sec | 90 sec | 2 min | 4 min Chime Enabled Yes | No Blue Flood & Temperature Sensor Name (16-character limit) Alphanumeric Device Type Flood & temperature sensor (display only) Trigger Water &...

  • Page 39: False Alarm Prevention And Sia Cp-01 Settings

    If you have motion sensors, for example, set to Away but not to Stay, the motions sensors will therefore not be monitored. The default setting of this option is ON, but may be changed in Blue by ADT app | Settings | Security System | Settings.

  • Page 40: Remote Arming Using The Blue Keychain Remote

    In order to activate Panic from your keychain remote, two steps are required. First, you must enable the panic feature via the Blue by ADT app | Settings | Keychain Remote. Second, you must press and hold both the Away and * buttons simultaneously for 2 seconds.

  • Page 41: Sensor False Alarm Prevention

    Cross Zoning – The system includes an option whereby 2 sensors must trip within 30 seconds before an Alarm is sent to the monitoring center. Cross Zone is selected by sensor in Blue by ADT app | Settings | Sensors. The default setting for Cross Zoning is OFF. Cross Zoning only works if at least 2 sensors have Cross Zoning turned ON.

  • Page 42: Controlling Your System

    • Log in to the Blue by ADT • • Log in to the Blue by ADT Log in to the Blue by ADT SECURITY •...

  • Page 43: Technical Specifications, System Testing, And Maintenance

    Event Log (for later perusal) and sent to you via text and email, provided you have set up these Alerts. If you wish, Blue by ADT will automatically set up Alerts for you so that you will receive any texts or emails if a Trouble Condition arises.
  • Page 44 (40C) or below 32F (0C) for any extended period of time will shorten battery life and perhaps cause premature failure. When the system detects a battery reaching a low charge level, Blue by ADT app will display a Low Battery message along with the name(s) of the devices. You will normally have at least 1 week of warning to replace a low battery.

  • Page 45: Glossary

    Auto Stay When the system is armed Away, but you don’t leave the house, the system defaults back to armed Stay status. To override this default setting, Auto Stay can be set to “No” on Blue by ADT.com. AWAY (Leaving Home) Arm AWAY when leaving your home.
  • Page 46 The system beeps during the Entry Delay. INSTANT arming does not have an Entry Delay. Event logs The system logs all monitored Events that occur on your system, such as alarms sent to Blue by ADT Alarm Monitoring Center. You can view these Events with the Blue by ADT app.
  • Page 47 Sensor magnets Magnets are used with door & window sensors. Magnets are attached to a door or window, while the sensor is attached to a door or window frame. STAY Arm Stay while you are at home. A silent Exit Delay and an audible Entry Delay is supported. User Codes User Codes can arm and disarm your system, but cannot access or change your system settings.

  • Page 48: Basic Fire Escape Planning

    Basic fire escape planning Your ability to get out depends on advance warning from smoke alarms and advance planning • Pull together everyone in your household and make a plan. Walk through your home and inspect all possible exits and escape routes. Households with children should consider drawing a floor plan of their home, marking two ways out of each room, including windows and doors.
  • Page 49 sure you can do it correctly and quickly. Children should only practice with a grown-up, and only from a first-story window. Store the ladder near the window, in an easily accessible location. You don't want to have to search for it during a fire. •...

  • Page 50: Limitations

    WARNING THE LIMITATIONS OF THIS SECURITY SYSTEM While your Blue by ADT system uses advanced technologies, no security system (including Blue by ADT) offers guaranteed protection against burglary, fire, or other emergency. All security systems are subject to compromise or failure to warn for a variety of reasons including: •...
  • Page 51 • Cellular signals needed to transmit alarms may be out of service, or carriers may have taken cell sites down for maintenance, or cell sites may be congested, or carriers may have reallocated cellular channels to other purposes. Cellular signals may be jammed by sophisticated intruders. •...

  • Page 52: Fcc Information

    7,079,034, 7,079,020, 7,057,512, 7,053,764, 7,042,353, 7,023,341, 7,019,639, 6,888,459, D538,797, D534,519, D534,146 © 2014 Blue by ADT LLC. All rights reserved. Blue by ADT is a registered trademark and Blue by ADT Security is a trademark of Blue by ADT LLC.
