Summary of Contents for Bob Long Technologies VICE

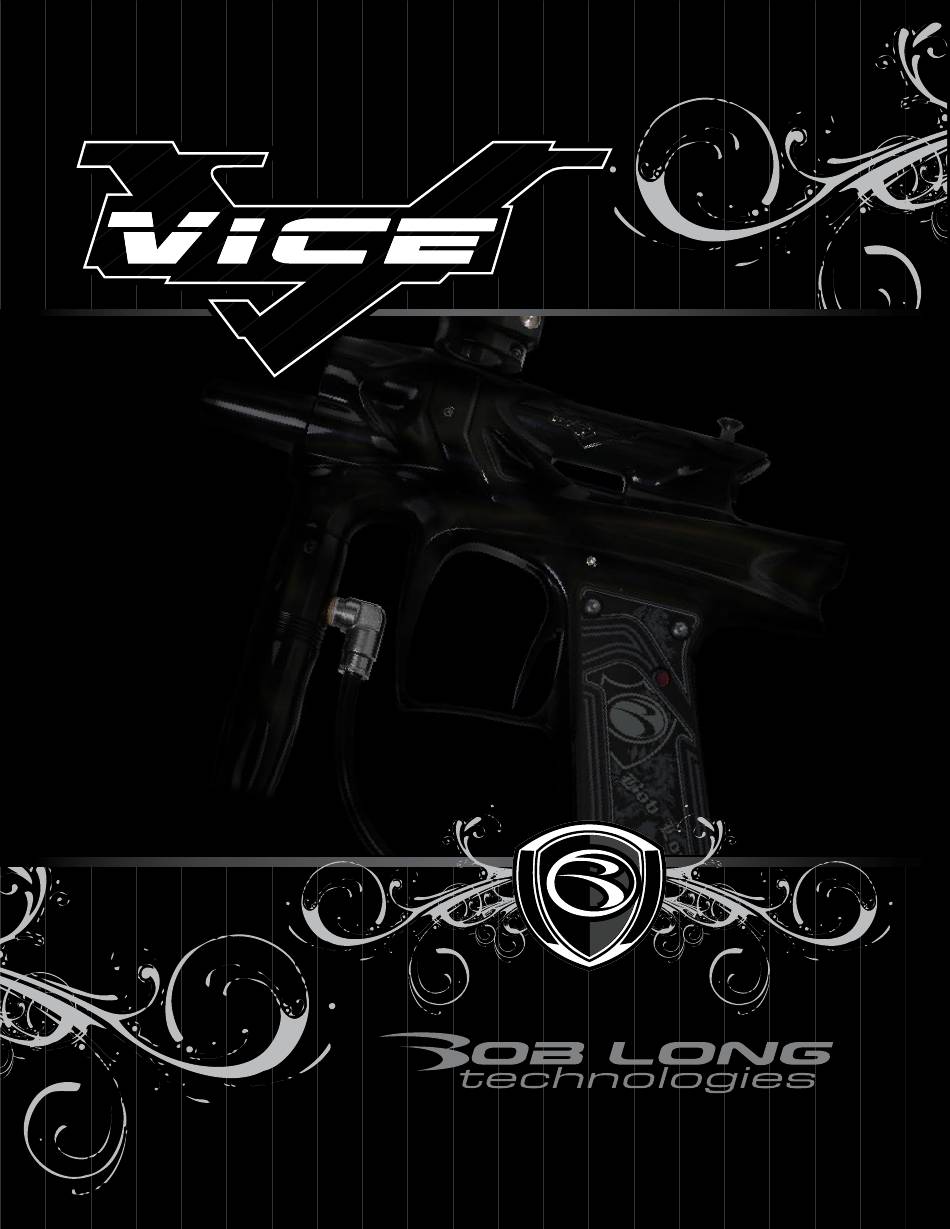

- Page 1 w w w . B o b L o n g D i r e c t . c o m w w w . B o b L o n g D i r e c t . c o m...
-
Page 2: Table Of Contents
w w w . B o b L o n g D i r e c t . c o m Table of Contents Safety / Caution ......3 Warranty ........4 Introduction ......5 4C Enhancing Eye System ....6 Quick Reference ......8 Marker Electronics ......9 Onboard LED Indicator .....9 Dipswitch Cheatsheet .....10... - Page 3 10 years old to use on paintball fields meeting ASTM standards F1777-97. Ensure you read entire instruction manual before operating your Vice . Please follow all local, state, and federal laws concerning the operation and use of paintball markers. By purchasing this paintball marker you assume all liability.
-
Page 4: Warranty
DO NOT protrude into internal grip assembly. When installing aftermarket grips, ensure attachment fasteners DO NOT protrude into internal grip assembly. Any attachment fasteners protruding into the grip assembly will void your warranty. For questions concerning your Vice or this manual please call (925) 625-7929. - Page 5 Finally, in the Intimdator’s last stand before the release of the Vice, the Generation Five brought efficiency and speed to a whole new level. And new for 2008, the Vice aims to surpass all expectations, and set the bar notches higher—in a true Bob Long fashion.
-
Page 6: Enhancing Eye System
A broad spectrum of controlled testing has proven this current eye system to be the predominant limiting factor when seeking out maxi- mum rate of fire potential. Our engineering staff at Bob Long Technologies has suc- cessfully implemented an advanced system of optoelectronics which can increase a markers cycle rate almost 40%. - Page 7 w w w . B o b L o n g D i r e c t . c o m 4C “Play by Play” Here is a more detailed description of how the 4C System Enhancing Eyes work. The time it takes for a markers bolt to move back past sensors toward final open position, allowing a paintball to fall, will be recorded.
- Page 8 ASA at the bottom of the grip will pressurize the marker, preparing it for use. Turning on your Vice: To power up your Vice, press the On\Off button on the rear of the marker. The LED (light-emitting diode) should light up and indicate the status of that marker. By default, the marker is ready to fire when loaded with paint and air when powered on.
-
Page 9: Marker Electronics
The following instructions and diagrams will teach you how to unleash the potential of the Frenzy 3.0 to let you squeeze every drop of performance out of your Vice. Basic 0perations To power on marker: Press power button once and release. -
Page 10: Maintenance
• Remove the ram by tilting the marker up ward, allowing the ram to gently slide out of the ram sleeve. • Remove the ram from the Vice, and clean any excess grease and debris from the ram with a clean cloth. - Page 11 . B o b L o n g D i r e c t . c o m 360 ˚ Inline Regulator: Your Vice comes equipped with one of the best high pressure regulators on the mar- ket. To ensure the best consistency and the highest flow possible, it is recommended that you clean and relubricate the HPR according to the maintenance schedule.
- Page 12 . B o b L o n g D i r e c t . c o m Your Vice comes equipped with one of the best low pressure regulators on the market. To ensure the best consistency and the highest flow possible, it is recommended that you clean and relubricate the low according to the maintenance schedule.
-
Page 13: Poppet Maintenance
• Remove your macroline hose from the 90˚ fitting on your regulator • Unscrew your regulator from the Vice vertical adaptor, and set the vertical regula tor down. • Grasp the low pressure regulator to ensure that it does not eject from the marker upon removal of its retaining screw. - Page 14 . B o b L o n g D i r e c t . c o m Anti Chop Eye Maintenace: In the event of a chopped ball or debris in the breech, your Vice eyes may need cleaning. • Remove the eye cover screw, and remove the eye cover.
-
Page 15: Consumables List
w w w . B o b L o n g D i r e c t . c o m CONSUMABLES LIST Part Name Specifications Quantity Xpress Mount ASA Set 8-32x3\16 Cup Point Socket Set Screw Screws Grip Panel Screws 6-32 x 3\16 Button Head Socket Cap Screw Bottom PCB Retaining Screw... -
Page 16: O-Ring List
w w w . B o b L o n g D i r e c t . c o m O-RING LIST Part Name Specifications Quantity 360˚ Inline Regulator Piston Oring 016 Buna (Durameter 70) 360˚ Regulator ASA Internal Stem 014 Buna (Durameter 70) Orings 360˚... - Page 17 Marker will not turn on out of the box— Ensure that the battery that you’re using in your new marker is a high quality alkaline 9 volt. Verify that your battery is correctly oriented (matching with the correct terminals), and that it is making firm contact with the prongs on the circuit board. Make sure that the wiring harness is correctly inserted into the receptacle, and that the on\off pad is making contact with the switch on the circuit board.
- Page 18 Additionally, on the first gen- eration of Protégé and Vice markers, some frames had insufficient clearance and would contort the hose in such a manner that would cause some markers to develop a frame leak.
- Page 19 BOB LONG TECHNOLOGIES 1 CARPENTER RD OAKLEY, CA 1 -- techsupport@boblongdirect.com www.boblongdirect.com...
