INSTRUCTIONS FOR CONTINUED AIRWORTHINESS

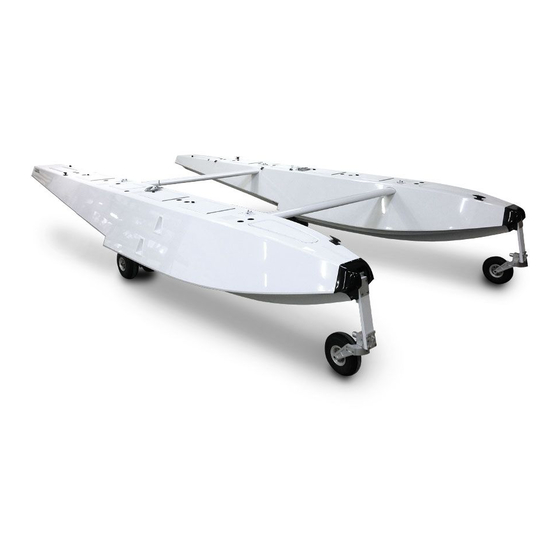

AEROCET 3400 AMPHIBIOUS SEAPLANE FLOATS
This ICA must be followed when Aerocet 3400 Floats are installed in
accordance with Supplemental Type Certificate (STC) No. SA01257SE.
The information contained in this document supplements or supersedes the
basic manuals only in those areas listed herein. For limitations, procedures, and
performance information not contained in this manual, consult the basic
aircraft ICA or maintenance manual.
Incorporated
Service & Maintenance Manual
TITLE:
Model 3400 Amphibious Floats
SUBTITLE:
SERVICE MANUAL
AND
FOR
Aerocet, Inc.
P.O. Box 2119
265 Shannon Lane
Priest River, Idaho 83856
Phone: (208) 448-0400
Fax: (208) 448-1644
PAGE
1 of 107
FILE NO.
A-10031
REVISION
8
