Summary of Contents for XCLEA QYSDJ01

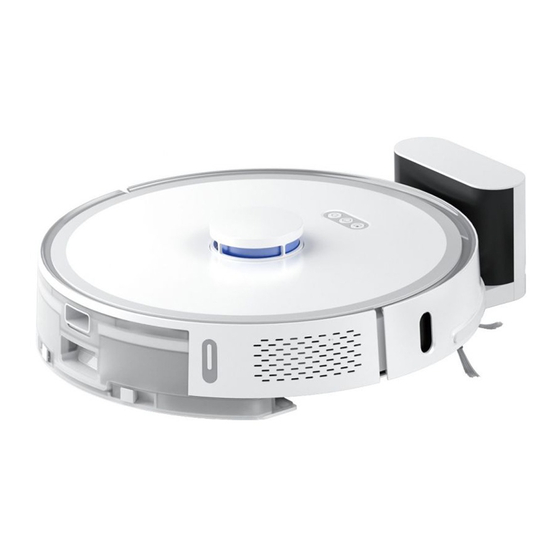

- Page 1 Robot Vacuum and Mop Cleaner Operation Manual Read this operation manual carefully before using the product, and store the manual safely. Scan the QR code for manuals in multiple languages...
-
Page 2: Table Of Contents
CONTENTS Safety instructions ....................................... 2 Warning ........................................................2 Caution ........................................................3 Product overview ......................................4 Main unit ........................................................4 Dust box + water tank (2 in 1) and mopping module ........................................4 Dust collector (optional) ..................................................5 Charging dock (optional) ..................................................5 Installation ........................................ -
Page 3: Safety Instructions
Safety instructions Read this operation manual before using the product Warning: To avoid injury to yourself and others, and to avoid unnecessary property damage, read carefully before using the product and observe the following “Safety instructions”. The safety instructions are divided into two sections, “Warning” and “Caution”. The “Warning” and “Caution” sections contain important information for safe use of the product and must be followed. -
Page 4: Caution
20. The adapter is for indoor use only, do not expose it to rain. 21. If the exterior is damaged, do not use the adapter to avoid risk of electric shock. 22. This adapter is only intended for use with designated robot vacuum and mop cleaners. 23. -
Page 5: Product Overview
Product overview Main unit Laser head pressure sensor Function buttons Panel Laser sensor Dust box release button Infrared docking sensor Dust inlet Bumper Mop holder release button Infrared docking sensor/Wall detection Charging contact (x2) sensor Infrared sensor TOF wall tracking sensor Spot button Universal wheel •... -
Page 6: Dust Collector (Optional)
Mop holder Mop holder release button Disposable mop Dust collector (optional) Flip cover LED display Air outlet Infrared lens Transparent cover of dust channel Charging contact Dust inlet Charging port Charging dock (optional) Charging dock indicator Signal emission area Charging port Cord storage slot Charging contact... -
Page 7: Installation
Installation Installing the dust collector (optional) Step 1: Find a suitable location to place the dust collector; Step 2: Press and hold the Power button on the main unit to turn on the robot vacuum and mop cleaner, then press the Dock button for the robot to search for the dust collector to charge. Dock button >0.5 m >0.5 m... -
Page 8: Installing The Mopping Module
Step 3: Press and hold the Power button on the main unit to turn on the robot vacuum and mop cleaner, then press the Dock button for the robot to search for the charging dock to charge. Dock button Caution 1. -
Page 9: App Downloads
2. Open the Huawei SmartHome app. At first use, register an account and log in to the app as per the 1. Search for “XCLEA” in the app store or scan the QR code below to download and install the app. -
Page 10: Use
Turning on/off and cleaning modes 1. Turning on/off Spot button Press and hold the Power button, the Power button indicator is ON and the main unit enters • Short press to clean a localized area. The robot automatically docks after cleaning. Standby mode. -
Page 11: Turning On/Off And Operating The Dust Collector (Optional)
Caution 1. It is recommended to start cleaning when the main unit is on the charging dock or the dust collector. 2. When power is insufficient during cleaning, the main unit will automatically dock on the charging dock or the dust collector and charge itself. It will return to where it left off and resume cleaning after charging is completed. -
Page 12: Cleaning And Maintenance
Cleaning and maintenance Always turn off the product before any maintenance! Disassembling and installing the main brush Step 1: Disassemble the main brush Step 2: Clean the main brush Turn the robot vacuum and mop cleaner over, press the main brush cover release button to remove Use the cleaning brush to pick up and cut away the hair and fibers entangled on the main brush. -
Page 13: Disassembling And Installing The Dust Box And Filter
Caution 1. Only replace with a side brush supplied by XCLEA, otherwise, it may lead to damage to the main unit. 2. To avoid scratching yourself, be careful when using a screwdriver to replace the side brush. 3. Install the left and right side brushes correctly onto their respective pins. -
Page 14: Disassembling And Installing The Mop
Caution 1. Only replace with a mop supplied by XCLEA, otherwise, it may lead to ineffective cleaning. 2. Be sure to remove and clean the mop to prevent dirty water flowing back. 3. It is recommended to replace the mop every 3-6 months to ensure effective cleaning. -
Page 15: Clean The Charging Dock (Optional)
Step 3: Clean the filter Rinse the dust box filter with clean water. Air-dry completely before reinstalling to prevent dust from clumping during the next use. Clean the charging dock (optional) Step 1: Clean the charging contact Check whether there is dirt on the charging contacts. Wipe and clean the charging contacts with a soft clean cloth to keep it clean and free of debris. Caution 1. -
Page 16: Troubleshooting
Step 2: Clean the dust channel Step 3: Clean the infrared lens and charging contacts If the dust collector does not work while powered on and the dust bag is not full, firstly disconnect Wipe and clean the infrared lens and charging contacts with a soft clean cloth to keep it clean and it from the power supply and check whether the dust channel is blocked. - Page 17 Error message Solution If the bumper is stuck, remove the debris and briskly tap the bumper several times to dislodge any debris that may be trapped underneath. Error 2: Check if the bumper is stuck. If the product is trapped because of insufficient space, move it to a new location and start it. If the alert continues, contact the customer service.
-
Page 18: Faqs
Error message Solution Error 20: Clean the filter. Remove the filter and clean it. Tip: Resetting the system can fix some errors. FAQs Question type Solution If the battery power is insufficient, dock the main unit on the charging dock and fully charge it before next use. If the Cannot power on battery temperature is too low or too high, use the product at temperatures of 0-40 °C. -
Page 19: Technical Data
Technical data Product name Robot vacuum and mop cleaner Product model QYSDJ01 Rated operating voltage 14.4 V Rated power 50 W Lithium battery capacity 5200mAh Rated charging voltage 24 V Net weight ca. 3.5 kg Dimensions 355 x 355 x 100 mm Charging time ca. -
Page 20: Disposal
Disposal Correct disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. -
Page 21: Warranty Card
617/2013:2013-06-26, (EU) 801/2013:2013-08-22, EN 301 489-1 V2.2.3:2019, Draft EN 301 489-17 V3.2.2:2019, EN 55014-1:2017, EN 55014-2:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013/A1:2019, EN 300 328 V2.2.2:2019, EN 62311:2008, EN 50665:2017 Service email: service@xclea.com Website: www.xclea.com Version: V2.0 11.2020 Only applicable to the robot vacuum and mop cleaner model QYSDJ01 Made in China...
