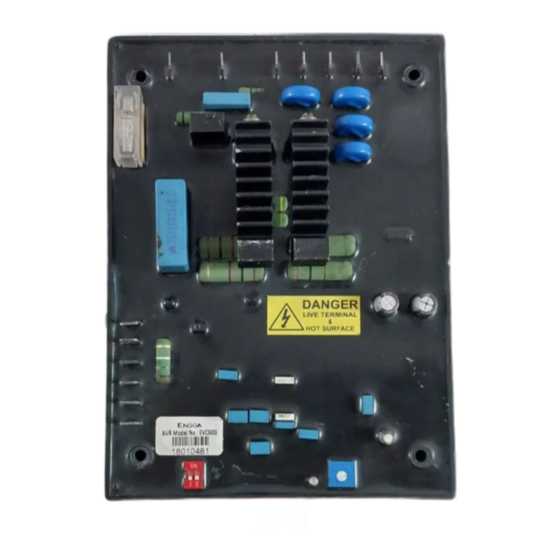

Generator Automatic Voltage Regulator

1. INTRODUCTION

The EVC600i Voltage Regulator is thyristor base to control the DC exciter field power of conventional
50 or 60 Hz brushless generators. The AVR circuitry includes under speed and over load protection
features. Excitation power is derived directly from the generator terminals.

2. ENVIRONMENTAL

2.1. Operating temperature:
2.2. Storage temperature:
2.3. ALTITUDE:
Less than 2600 meter
2.4. RELATIVE HUMIDITY:

3. TECHNICAL SPECIFICATION

Sensing Input
Terminal V -V
for 220 Vac
0
220
Terminal V -V
for 400 Vac
0
380
Power Input
Voltage: 180 to 250 Vac
Frequency: 50 Hz or 60 Hz
Voltage Adjust Range
180 - 300 Vac, 300 - 520 Vac
Field Resistance
Recommend 9 - 24
Voltage Regulation
< 1%
±
Output Voltage
Maximum 90 Vdc @ 220 Vac
Output Current
Maximum continuous: 8 A @ 220 Vac
10 second forcing: 10 A @ 220 Vac
OPERATING MANUAL FOR AUTOMATIC VOLTAGE REGULATOR
MODEL NO : EVC600i
EVC600i
Operation Manual
-30 to 80°C (-22 to 176°F)
-40 to 80°C (-40 to 176°F)
<90%
Paralleling
Internal burden and adjustment for 0 to 10%
droop at 5 A, 0.8 PF, (from external CT)
Voltage Buildup
4Vac, 30 Hz
External Volts Adjustment
At least
±
10% with 100k ohm 1 watt trimmer
Thermal Drift
0.05% per Degree C change in AVR ambient
Analog Voltage Input
±5VDC, adjustable output voltage is no less than
2% for 1VDC (i.e. for ±5VDC it come out to be
±10%)
Current Compensation
In : 5A Input
At least 10 % @ P.F. = 0.8
Dimensions
175 mm L x 129 mm W x 37.5 mm H
Weight
530
±
10g
Page 1 of 7
Updated 26Jan 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVC600i and is the answer not in the manual?

Questions and answers

Олег
May 9, 2025

как отрегулировать регуятор напряжения EVC600I

1 comments:
Mr. Anderson
May 19, 2025

To adjust the voltage regulator on the ENGGA EVC600i:

1. Connect the voltage regulator as shown in Figure 5 and apply 230 Vac, 50 Hz.
2. Turn the rear panel VOLT trimmer fully clockwise (CW) — the lamp should light up fully.
3. Turn the VOLT trimmer fully counter-clockwise (CCW) — the lamp should turn off.

For external voltage adjustment, you can adjust the voltage by ±10% using a 100k ohm, 1-watt trimmer.

To adjust the under frequency roll-off (UFRO):

1. Adjust the prime mover RPM to the desired frequency.
2. If the UFRO LED is ON, turn the UFRO trimmer on the back panel anticlockwise until the LED turns OFF.
3. If the UFRO LED is OFF, turn the trimmer clockwise to turn it ON, then anticlockwise to turn it just OFF.

This answer is automatically generated

Summary of Contents for ENGGA EVC600i

  • Page 1 Operation Manual 1. INTRODUCTION The EVC600i Voltage Regulator is thyristor base to control the DC exciter field power of conventional 50 or 60 Hz brushless generators. The AVR circuitry includes under speed and over load protection features. Excitation power is derived directly from the generator terminals.
  • Page 2 OPERATING MANUAL FOR AUTOMATIC VOLTAGE REGULATOR MODEL NO : EVC600i 4. MECHANICAL SPECIFICATION 175 mm DRAWING 4.4 mm FUSE 8 Amps SW1: ON - Increase in Response Time. OFF - Response as per STAB pot Set SW2: ON - 60 HZ...
  • Page 3 OPERATING MANUAL FOR AUTOMATIC VOLTAGE REGULATOR MODEL NO : EVC600i AVR can be mounted directly on the generator, switchgear or control panel that conforms to the mounting specification. All voltage readings are to be taken with an average-reading voltmeter. Meggers and high-potential test equipment must not be used with AVR connected to generator.
  • Page 4 56.8 and 57.2 Hz for 60 Hz applications. For 50 Hz To operationally test any EVC600i, refer to Figure 5 applications, the frequency roll-off is factory preset and perform the following steps: to between 46.8 and 47.2 Hz.
  • Page 5 OPERATING MANUAL FOR AUTOMATIC VOLTAGE REGULATOR MODEL NO : EVC600i Exciter Armature Stator Wire IN : Field + 5 Vdc VR 2 100K/1W SW1: ON - Increase in Response Time. OFF - Response as per STAB pot Set SW2: ON - 60 HZ OFF -50 HZ Note : All doted lines are optional connections.
  • Page 6 OPERATING MANUAL FOR AUTOMATIC VOLTAGE REGULATOR MODEL NO : EVC600i Exciter Armature Stator Wire IN : Field + 5 Vdc VR 2 100K/1W SW1: ON - Increase in Response Time. OFF - Response as per STAB pot Set SW2: ON - 60 HZ OFF -50 HZ Note : All doted lines are optional connections.
  • Page 7 OPERATING MANUAL FOR AUTOMATIC VOLTAGE REGULATOR MODEL NO : EVC600i 230Vac/50Hz LAMP 220V100W Note : All doted lines are optional connections. VR 2 SW1: ON - Increase in Response Time. OFF - Response as per STAB pot Set SW2: ON - 60 HZ OFF -50 HZ Figure 5.
