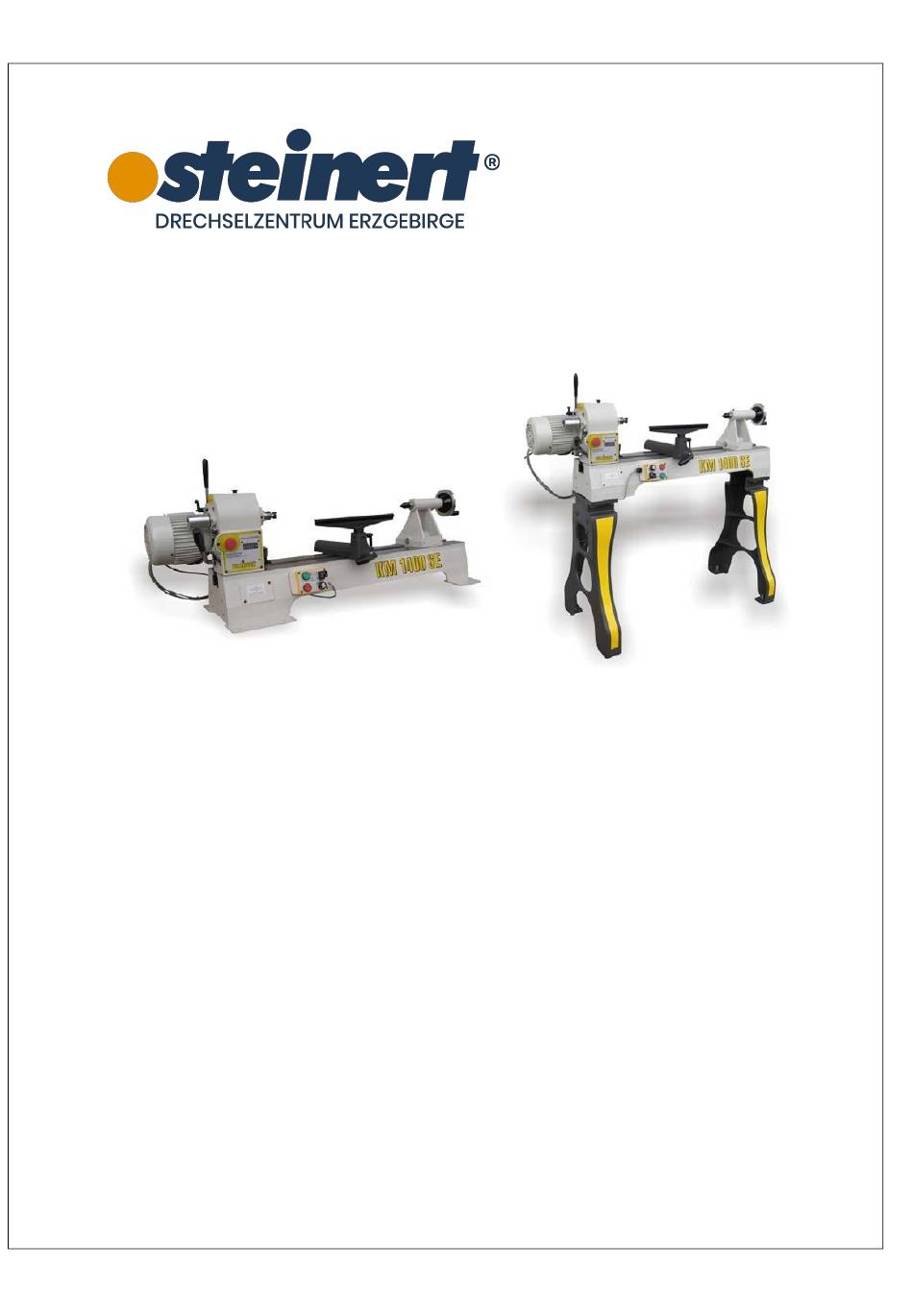

- Page 1 Operating Manual Woodturning Lathe KM 1400 SE 1 main power, magnetic box with button and switches pin to lock spindle, standard accessories handle for motor pulley 2 indexing function 3 manual, safety advises, maintenance 4 declaration of conformity...
- Page 2 Digitale Anzeige der Drehzahl display for adjusted spindle speed indicateur electronique pour vitesse Hauptschalter/Not-Aus-Taster main power/emergency-off commutateur prinicipal/ârret d`urgence Bewegliche Bedienbox mit Magnet, Ein-/Aus-Schalter, Drehzahlregler, RS/LS-Lauf Schalter moveable magnetic box with spindle speed regulation n knob, on-off button spindle, forward/reverse switch mobile box magnétic avec interrupteur de mise en marche et d`arrêt, marche arrière et avant,...
- Page 3 Vierzack Mitnehmer in Spindel eingesetzt Mitlaufende Körnerpitze im Reitstock prong mandrel on spindle/headstock live centre fastenend in quill of tailstock pointe d’entrainement a poupée fixe contre pointe tournante fixation poupée mobile Rasterstift für Spindelstockdrehung Stift für Spindelblockierung locking pin for headstock swivelling pin to lock spindle levier d`arrêt pour fixation le poupée goupille pour d`arrêt la broche...
- Page 4 Indexstift für Teilungen pin for indexing goupille pour indexeur...
-
Page 5: Standard Fittings
OPERATING INSTRUCTIONS KM 1400 SE 04-2019 Modified series 09-2009 and revised 08-2013 STANDARD FITTINGS 1 4-prong-mandrel MT 2 (for spindle/headstock) 1 live centre MT 2 tip 60° (for tailstock) 1 locking pin (indexing pin) with threaded spindle (for indexing) 1 center knock-out rod... -
Page 6: Operating The Machine
STANDMODEL If the casting legs are ordered with the machine the lathe comes completely mounted in case legs are ordered later: remove the foot- plates left/righthandside from the benchmodel place machine transverse onto a workbench and mount legs from below to the lathe bed level the machine with set-screws M12 supplied with the legs ELECTRIC CONNECTION The lathe is supplied complete with a plug 230 V/1 ph for electric mains... - Page 7 Emergency-Off-Button The main switch on headstock is also used as emergency-off-button If the emergency-off-button was pressed down the button must be turned to activate electric power. MOVABLE OPERATING BOX The box is equipped with a “magnet” and can be placed at any position onto the lathe bed Switches with following functions Green button = “on”...
-
Page 8: Safety Regulations
SAFETY REGULATIONS - The belt guard must be reclosed after each change of V-belt position, motor does not run if not properly closed - Before the machine is switched on: turn potentiometer to “0”, after motor is switched o: the selected speed must be checked against the maximum permissible workpiece diameter, - Large, out-of-balance workpieces must be machined at minimum speed, cut them by a bandsaw octagonal to decrease out-of-balance - All clamping levers i.e. - Page 9 - move tailstock with inserted live centre close to the headstock resp. countersink of cone - tighten clamping lever of tailstock - loosen the clamping lever of headstock - align the headstock to the tip of live centre in tailstock and move the quill by turning the handwheel into the countersink of cone - tighten quill and tighten headstock The headstock is now adjusted correct into a “0”...
- Page 10 EN 13849-1 EN 60 204 T 1 EN 1088 Diese Erklärung wird verantwortlich für DRECHSELZENTRUM ERZGEBIRGE - steinert® abgegeben durch: This declaration is made for and on behalf of DRECHSELZENTRUM ERZGEBIRGE - steinert® by: Roland Steinert (Inhaber / Owner) Unterschrift:_______________________________________...
