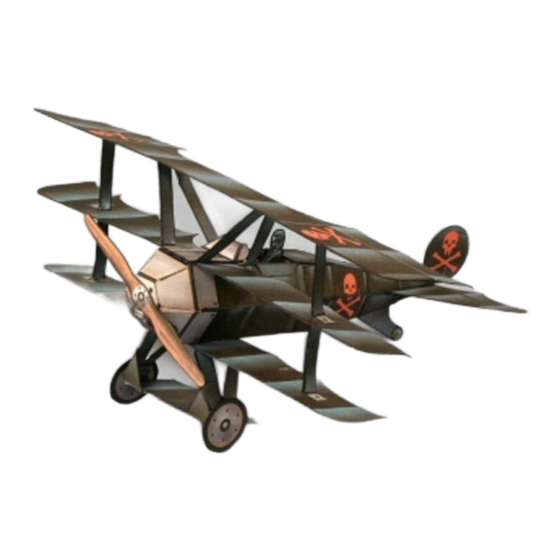

- Page 1 – Assembly Instructions Page 1. THE CRIMSON MONARCH (Continued on next page...)
- Page 2 – Assembly Instructions Page 2. THE CRIMSON MONARCH WHAT YOU'LL NEED: Scissors, Elmer's glue (or a glue stick), a ruler or other straight-edge, and a black marker. A small utility knife is helpful but not essential. FOLDING TIP: I recommend 'scoring' the fold lines before folding. You can use an old ink pen, a knitting needle, the end of a paper clip, or any metal object that will make a crease on the fold lines without tearing the paper.

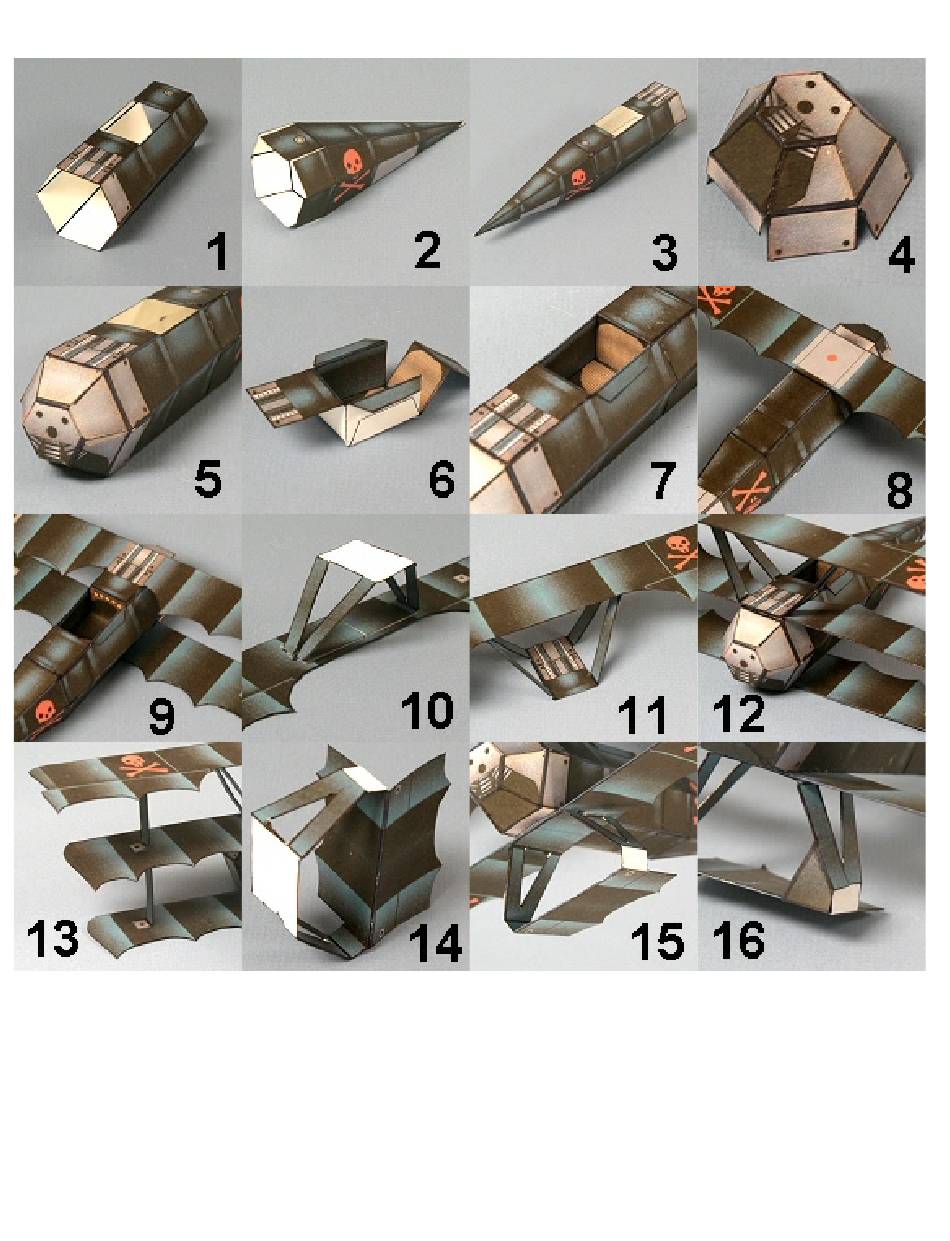

- Page 3 – Assembly Instructions Page 3. THE CRIMSON MONARCH Next, cut out the FUSELAGE REAR on Parts Page 1. Fold the six rectangular tabs DOWNWARD, fold the gray triangular tab DOWNWARD, and then fold DOWNWARD between all six panels. Glue the gray triangular tab to the unprinted side of the opposite panel, forming a piece like the one shown in Figure 2.
- Page 4 – Assembly Instructions Page 4. THE CRIMSON MONARCH Flip the UPPER WING upside down (so the two gray rectangles with green dots are showing) and glue the two rectangular panels on the UPPER WING BRACE to the two gray panels on the UPPE WING, as shown in Figure 1O.
- Page 5 – Assembly Instructions Page 5. THE CRIMSON MONARCH Cut out the two HORIZONTAL STABILIZER BOTTOM pieces on Parts Page 4 and glue them to the unprinted sides of the matching panels on the HORIZONTAL STABILIZER (being sure the inside edge of each bottom piece does not extend beyond the fold line on the horizontal stabilizer).
