ASSEMBLY INSTRUCTIONS

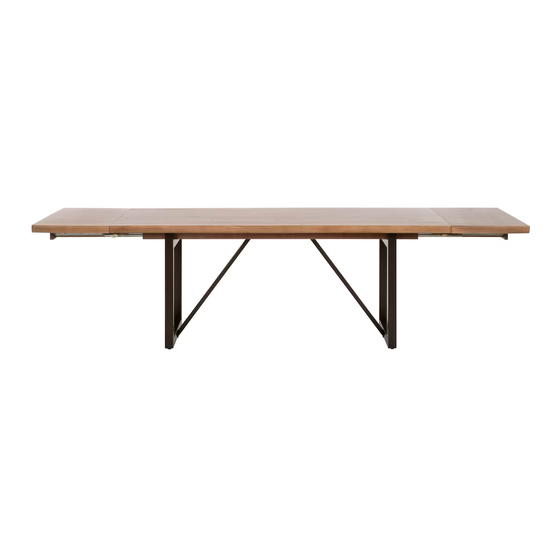

ORIGIN EXTENSION DINING TABLE
C
- PLEASE DO NOT DISCARD ANY OF THE PACKAGING UNTIL YOU
HAVE CHECKED ALL THE PARTS AND THE PACKS OF HARDWARE.
- BEFORE YOU BEGIN TO ASSEMBLE YOUR NEW PIECE OF
FURNITURE, PLEASE CHECK TO ENSURE THAT ALL PARTS HAVE
BEEN SUPPLIED.
- FOLLOW INSTRUCTIONS CLOSELY AS DEVIATION FROM THEM MAY
VOID YOUR WARRANTY AND PRESENT A POSSIBLE SAFETY RISK.
- IT IS RECOMMENDED THAT ASSEMBLY IS DONE ON A SOFT
SURFACE LIKE CARPET TO AVOID ANY DAMAGE.
- PERIODICALLY CHECK AND RE-TIGHTEN ANY FASTENERS. WIPE
DOWN ALL SURFACES WEEKLY WITH A CLEAN CLOTH. DO NOT
CLEAN ANY SURFACES WITH HARSH ABRASIVES OR CHEMICALS.
1.
D
E
B
A
05
02
03
04
D
Parts Check List
Components
Code
A
TABLE TOP
LEAF TOP
B C
LEG FRAME
D
STRETCHER
E
Hardware Check List
Code
Description
01 Short bolt M6x15
02 Long bolt M8x30
03 Spring washer
04 Flat washer
05 Allen key
A
Qty
x01
x02
x02
x02
Qty
x02
x10
x10
x10
x01
75%
D
