ASSEMBLY INSTRUCTIONS

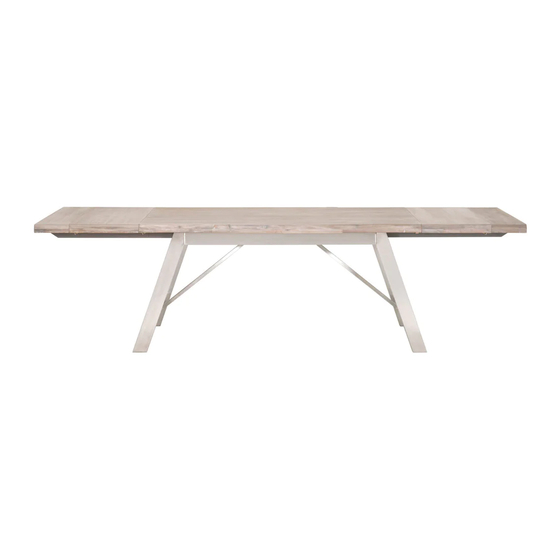

NIXON EXTENSION DINING TABLE
C
- PLEASE DO NOT DISCARD ANY OF THE PACKAGING UNTIL YOU
HAVE CHECKED ALL THE PARTS AND THE PACKS OF HARDWARE.
- BEFORE YOU BEGIN TO ASSEMBLE YOUR NEW PIECE OF
FURNITURE, PLEASE CHECK TO ENSURE THAT ALL PARTS HAVE
BEEN SUPPLIED.
- FOLLOW INSTRUCTIONS CLOSELY AS DEVIATION FROM THEM
MAY VOID YOUR WARRANTY AND PRESENT A POSSIBLE SAFETY
RISK.
- IT IS RECOMMENDED THAT ASSEMBLY IS DONE ON A SOFT
SURFACE LIKE CARPET TO AVOID ANY DAMAGE.
- PERIODICALLY CHECK AND RE-TIGHTEN ANY FASTENERS. WIPE
DOWN ALL SURFACES WEEKLY WITH A CLEAN CLOTH. DO NOT
CLEAN ANY SURFACES WITH HARSH ABRASIVES OR CHEMICALS.
1.
C
Parts Check List
Components
Code
A
TABLE TOP
B
EXTENSION LEAF
C
LEG FRAME
D
X STRETCHER
Hardware Check List
code
description
01
Hexagon Bolt
02
Long Bolt
03
Short Bolt
04
Spring washer
05
Large Flat washer
06
Spanner
07
Allen key
Q'ty
x01
x02
x02
x01
q'ty
x16
x06
x08
x30
x30
x01
x01
75%
C
