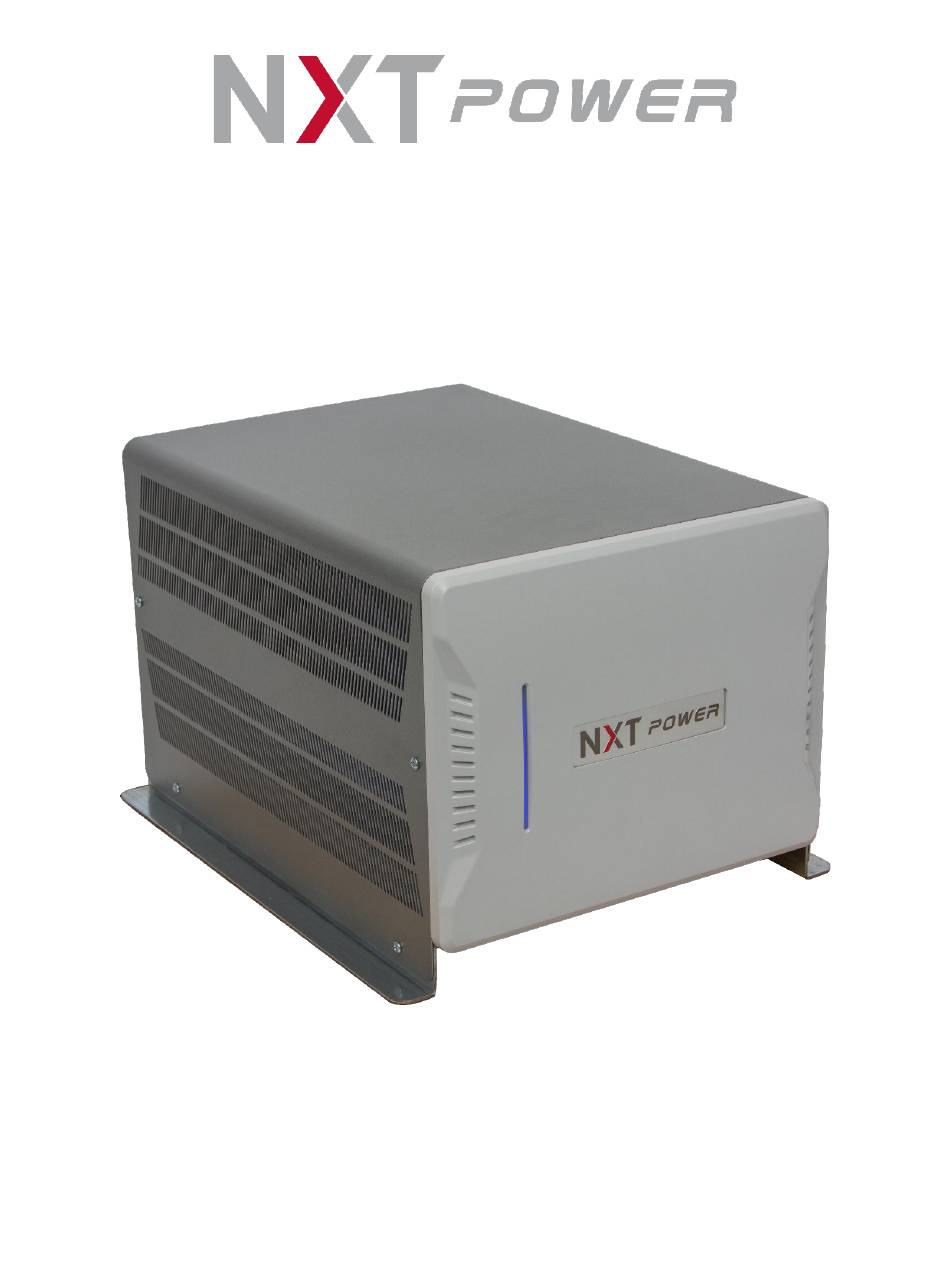

- Page 1 POWER CONDITIONER USER’S MANUAL For use with 208 or 240 VAC 60 Hz systems Model Numbers for 208 or 240 VAC in 208,240/120 out 60Hz NPT 2000, 2300, 2500, 2800, 3000, 3300, 3500, 3800, 5000, 5800, 6000, 7000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.0 – INTRODUCTION ………………………………………….......... 2 2.0 – SAFETY GUIDELINES …………………………………..........2 3.0 – OPERATION & MAINTENANCE …………………........... 3 4.0 – POWER CONDITIONER RATINGS CHART …………………………………………. 6 4.1 – FIG 1 ………………………………………………………………………………………..7 5.0 – WARRANTY ………………………………………………………………..……………. 8 6.0 – CONTACT US …………………………………………………………………………..9... -
Page 3: Introduction
(Between Line - Line, Line - Neutral and Neutral - Ground). This exclusive NXT POWER product you have purchased protects and provides clean power to your system. We have prepared this document to help familiarize you with the functions and controls of the product. -
Page 4: Operation & Maintenance
Place the NXT POWER Conditioner as close to the load equipment/electronic devices as possible. Plug in all electrical devices that you would like to protect from electrical noise into the power conditioner. - Page 5 RISK OF ELECTRIC SHOCK Input voltage adjustment: This power conditioner can be configured for 208 or 240, 60Hz VAC input. This voltage configuration must only be performed by a qualified person. There is a high risk of electrical shock if preformed incorrectly. Ensure the circuit that will be used to power the power conditioner is turned off and locked out.
- Page 6 CAUTION All NXT POWER Conditioners are equipped with overload protection and this protection will turn off the power conditioner if overloaded. If the power conditioner turns off due to an overload, remove some of the load equipment/electronic devices from the conditioner and turn the power conditioner on again.
-
Page 7: Power Conditioner Ratings Chart
Breaker Minimum Model Number phase Voltage current rating Conductor Size Frequency 208, 240/120 NPT2000-H-NS 208 or 240 VAC 9.6 A 15 A 14 AWG 60 Hz 240/120 NPT2300-H-NS 208 or 240 VAC 9.6 A 15 A 14 AWG 60 Hz... -
Page 8: Fig 1
WARRANTY General Warranty NXT POWER Next Level conditioners (hereafter referred to as “Product”) are warranted to be free from defects in material and workmanship for five (5) years from date of shipment from NXT POWER on the chassis and electronic components. This warranty is limited to repairing, replacing, or refurbishing at NXT POWER’s discretion, any defective component, circuit board... - Page 9 7051 W Wilson Ave, Harwood Heights, IL 60706 (P) 877-698-7697 (F) 708-457-2266 service@nxtpower.com Access additional product and support via our website https://www.nxtpower.com 022-00002 2020 REV. A,– User manual power conditioner 2000 VA to 70000 VA 208,240,120 VAC...
