Integrity Pro Medical / Non-Medical
User Manual
600 / 800 / 1100 / 1440 VA
NPTU 600-L-N
NPTU 800-L-N
NPTU 600-LM-N
NPTU 800-LM-N
NPTU 1100-L-N
NPTU 1500-L-N
NPTU 1100-LM-N
NPTU 1500-LM-N
NPTU 1100-L-i
NPTU 1500-L-i
NPTU 1100-LM-i
NPTU 1500-LM-i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NPTU 600-L-N and is the answer not in the manual?

Questions and answers

Related Manuals for NXT Power NPTU 600-L-N

Summary of Contents for NXT Power NPTU 600-L-N

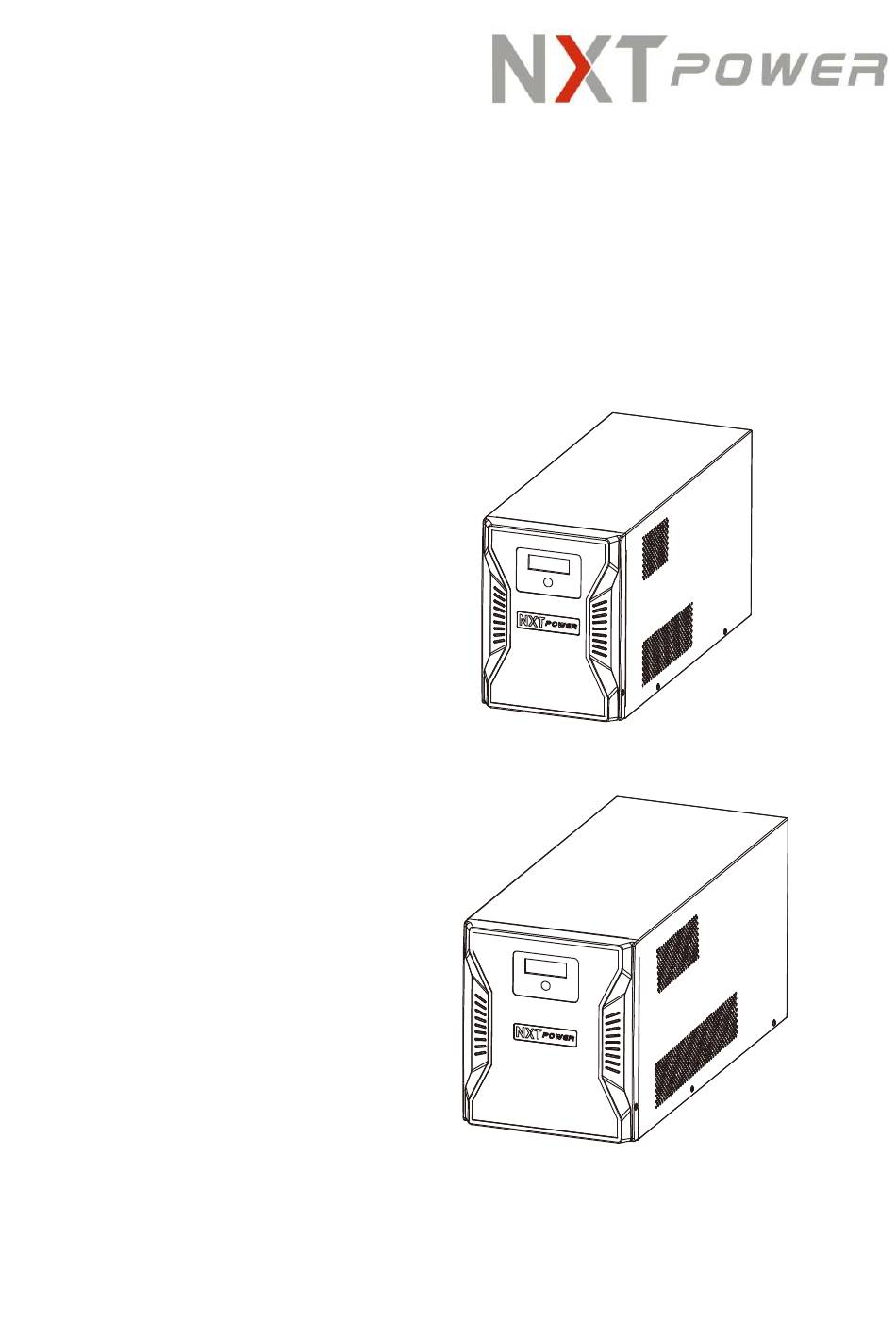

  • Page 1 Integrity Pro Medical / Non-Medical User Manual 600 / 800 / 1100 / 1440 VA NPTU 600-L-N NPTU 800-L-N NPTU 600-LM-N NPTU 800-LM-N NPTU 1100-L-N NPTU 1500-L-N NPTU 1100-LM-N NPTU 1500-LM-N NPTU 1100-L-i NPTU 1500-L-i NPTU 1100-LM-i NPTU 1500-LM-i...

  • Page 2: Table Of Contents

    Table of Contents 1. Safety Instructions and Storage / Battery Care ............ 1 2. UPS System Block Diagram ..................1 3. Front Panel Display ....................1 4. Product Features...................... 2 5. Button Function ....................... 2 6. Installation and Start up ..................3 7.

  • Page 3: Safety Instructions And Storage/ Battery Care

    1. Safety Instructions and Storage/ Battery Care SAVE THESE INSTRUCTIONS. - This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. Read the instructions carefully to become familiar with the equipment before starting the instillation process. Notify the carrier and dealer if there is any damage to the unit.

  • Page 4: Product Features

    4. Product Features NPTU600-L-N/ PTU600-LM-N NPTU1100-L-N / NPTU1100-LM-N NPTU1100-L-i/ PTU1100-LM-i NPTU800-L-N / PTU800-LM-N NPTU1500-L-N / NPTU1500-LM-N NPTU1500-L-i/ PTU1500-LM-i A: RS-232 E: Input Breaker B: USB port F: AC Outlets (Program relay, PRY) C: Fan / Ventilation hole G: Intelligent Slot D: AC Inlet 5.

  • Page 5: Installation And Start Up

    Hold down the on/off button for 5~8 To clear the error icon seconds, release the button when the alarm beeps. The error icon will be removed. 6. Installation and Power On 1. Installation:  Please read Section 1. Safety Instructions and Storage/ Battery Care before installing. 2.

  • Page 6: Battery Replacement Procedure

    Type & Number 12V/7Ah x 2 12V/9Ah x 2 12V/7Ah x 4 12V/9Ah x 4 12V/7Ah x 4 12V/9Ah x 4 Battery (lead-acid battery) 17.7 x 7 x 9.3 inch 20.7 x 8.7 x 10 inch Dimension (D x W x H) 450 x 180 x 236 mm 525 x 220 x 254 mm 46.1 lb...

  • Page 7: 10. Warrenty Information

    Integrity Pro Series Products (hereafter referred to as “Product”) are warranted to be free from defects in material and workmanship for thirty six (36) months from date of shipment from NXT POWER, on the chassis & electronic components and thirty six (36) months from date of shipment from NXT POWER on the batteries.
  • Page 8 192321572001003...
