NEVER Horizontal
Electrode must be installed VERTICALLY!
•
WARNING: DISCONNECT THE ELECTRIC POWER
BEFORE SERVICING - USE ONLY COPPER CONDUCTORS
ELECTRICAL:
The Genesis BLU FUSION Unit must be wired to the circulation side of the pump cycle to ensure
operation takes place ONLY during low-speed circulation.
PLUMBING:
Use a jet-line from a manifold that operates during low-speed circulation. Electrode
should be installed as the last component before water re-enters the spa. DO NOT use a jet-line
that can be shut off as this can result in electrode failure if the jet is shut-off while the system is in use.
Control box must be installed vertically and MUST NEVER be laid flat on its back. This may cause water
1.
damage not covered by your warranty!
2. Loosen the four screws at the four corners of the case cover (top).
Insert the flexible type SJ, or SJT copper power wiring through the liquid tight compression connector on the
3.
case. Refer to the wiring diagram inset. The opposite end of the power wiring should be connected to the spa
power supply and the connection must include a GFCI. If the spa is not connected to a GFCI, one must be
provided.
Tighten the nut on the liquid tight compression connector until a good seal is made
4.
against the outside insulation of the wire.
5. Strip the insulation back on the white, black, and Green wires 3/8 inch.
6 . Insert the Green wire into one of the
7. Insert the White and Black wires in the Line Voltage terminals (Ll, L2) The polarity of the Line Voltage
terminals is not significant.
8. Replace the case cover. Make sure that the cover screws are sufficiently tight to prevent liquid infiltration.
9. Mounting location of the supply unit must be at least 1.5 m from the pool. For use with a spa it must be mounted
behind the wall preventing access from system while spa is in use. Electrode must be installed 4" or greater from
the outlet of the electrode connection to return jet.

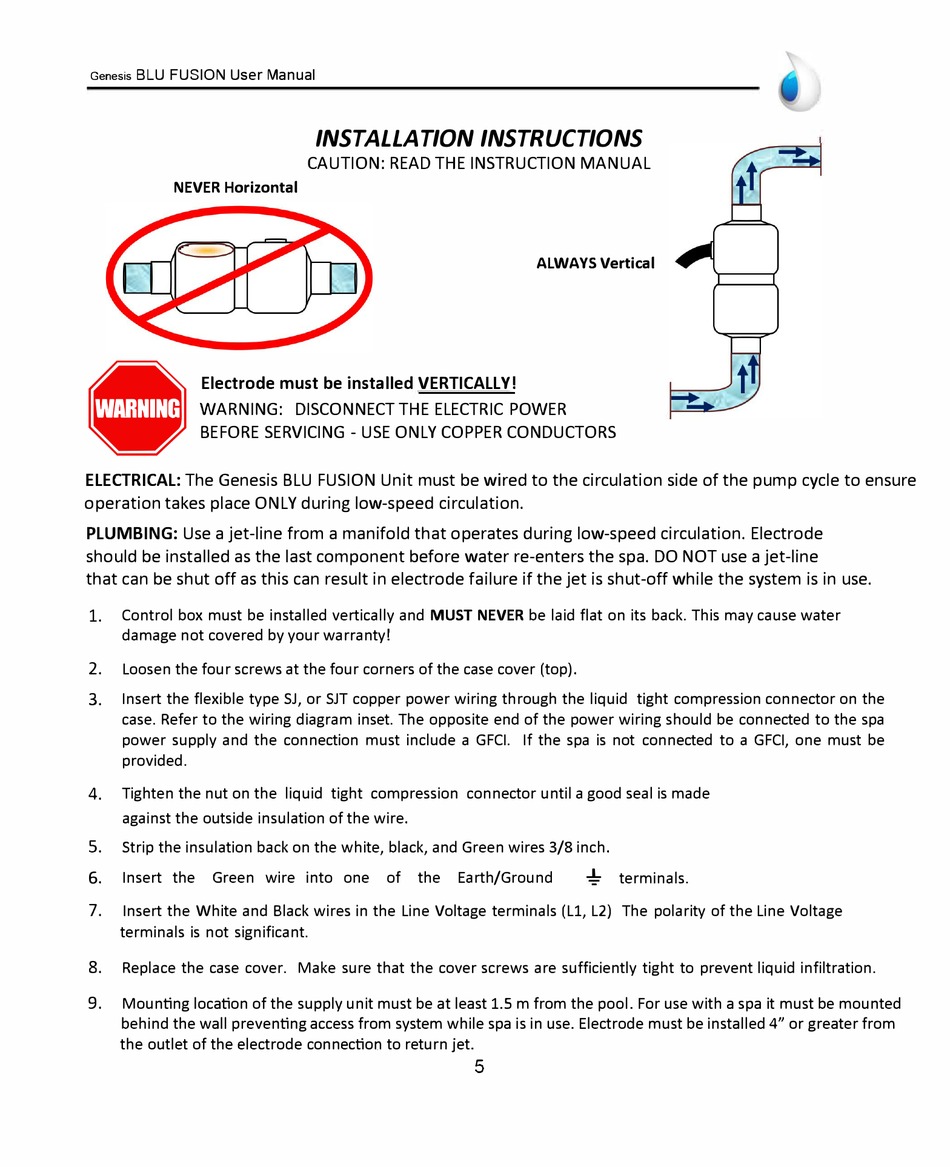

INSTALLATION INSTRUCTIONS

CAUTION: READ THE INSTRUCTION MANUAL
Earth/Ground
5
ALWAYS Vertical
½
terminals.
