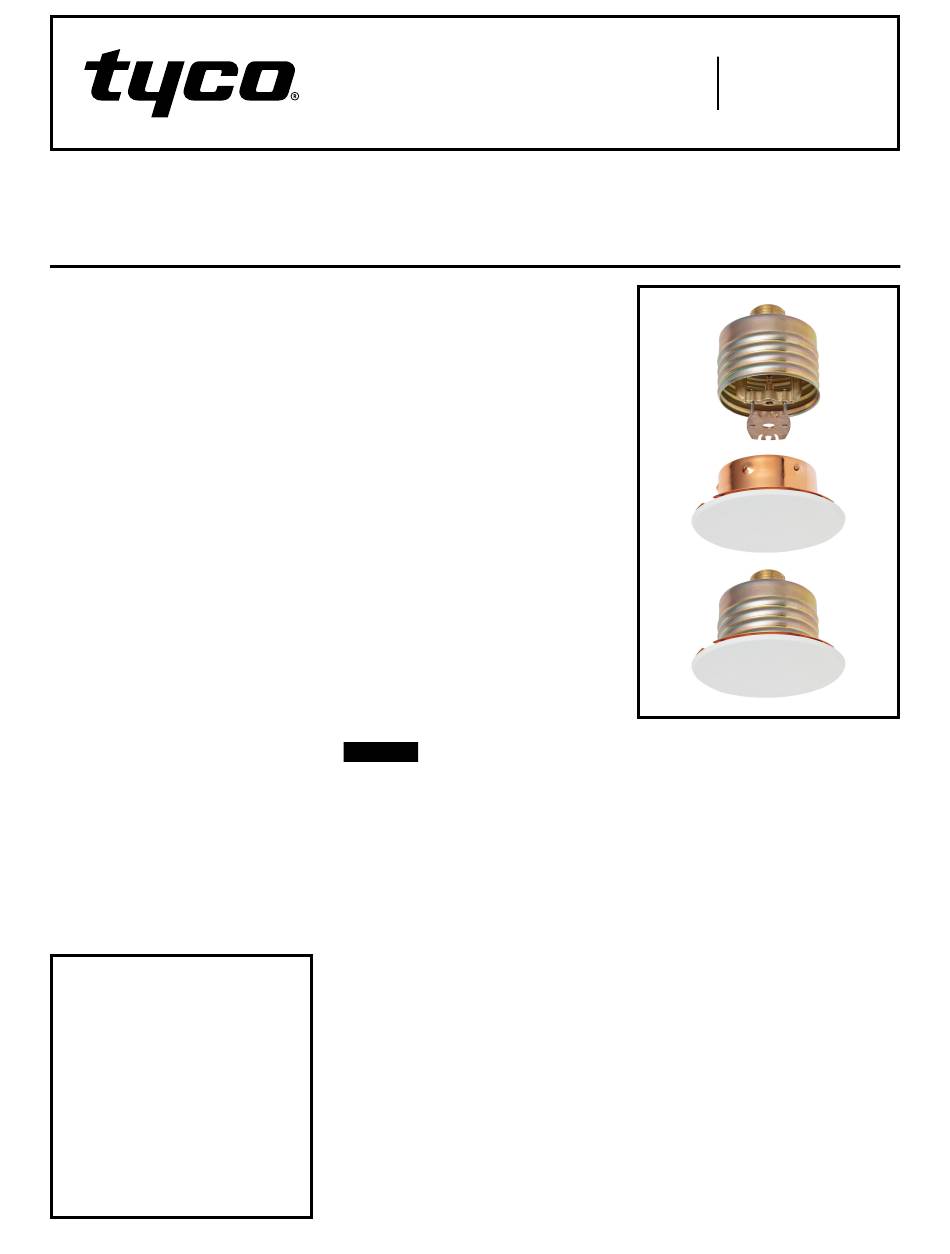

Series RFII-C — 5.6 K-factor Special Application
Royal Flush II Quick Response Concealed Pendent
Sprinklers for Corridors and Hallways
General
Description
The TYCO Series RFII-C, 5.6 K-fac-
tor Special Application Royal Flush II
Quick Response Concealed Pendent
Sprinklers for Corridors and Hallways
of Light Hazard Occupancies are dec-
orative, 3 mm bulb-type sprinklers
featuring a flat cover plate designed
to conceal the sprinkler. These sprin-
klers are specifically designed for use
in long, narrow spaces such as corri-
dors or hallways with a maximum cov-
erage area of 28 ft by 10 ft (8,5 m x 3,1
m). Fewer sprinklers and lower system
pressure demands are required as
compared to the traditional extended
coverage sprinklers.
The Series RFII-C sprinklers are
intended for use in automatic sprin-
kler systems designed in accor-
dance with standard installation rules
such as NFPA 13. The fast-response
thermal sensitivity rating of the Series
RFII-C sprinkler provides for a Quick
Response, Extended Coverage (QREC)
rating up to a 28 ft x 10 ft (8,5 m x
3,1 m) maximum coverage area.

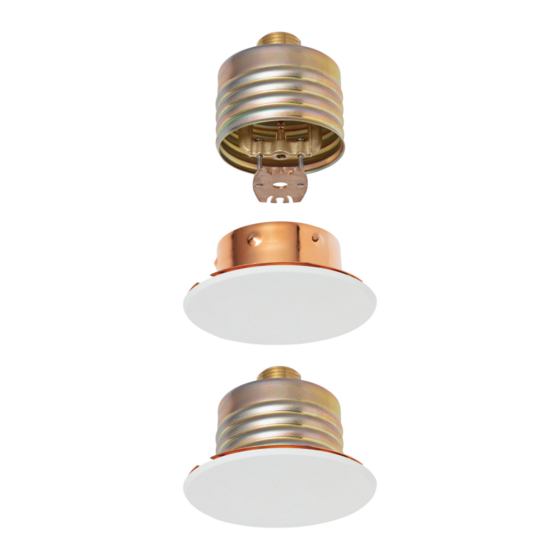

Each sprinkler includes a cover plate/
retainer assembly and a sprinkler/
support cup assembly. The separable,
two-piece assembly design provides
the following benefits:
• Allows installation of the sprinklers
and pressure testing of the fire pro-
tection system prior to installation of
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and
installation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 6
a suspended ceiling or application of
the finish coating to a fixed ceiling.
• Permits the removal of suspended
ceiling panels for access to building
service equipment without having
to first shut down the fire protection
system and remove sprinklers.
• Provides for 1/2 in. (12,7 mm) of ver-
tical adjustment to allow a measure
of flexibility in determining the length
of fixed piping to cut for the sprin-
kler drops.
The Series RFII-C sprinklers are
shipped with a disposable protective
cap. The protective cap is temporar-
ily removed during installation and
replaced to help protect the sprinkler
during ceiling installation or finish. The
tip of the protective cap can be used to
mark the center of the ceiling hole into
plaster board or ceiling tiles by gently
pushing the ceiling product against the
protective cap. When ceiling installa-
tion is complete, the protective cap is
removed and the cover plate/retainer
assembly is installed.
NOTICE
The TYCO Series RFII-C, 5.6 K-fac-
tor Special Application Royal Flush II
Quick Response Concealed Pendent
Sprinklers described herein must be
installed and maintained in compliance
with this document and with the appli-
cable standards of the NATIONAL FIRE
PROTECTION ASSOCIATION (NFPA),
in addition to the standards of any
authorities having jurisdiction. Failure
to do so may impair the performance
of these devices.
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
Sprinkler
Identification
Number (SIN)
TY3582
APRIL 2021
Worldwide
www.tyco-fire.com
Contacts
Technical
Data
Approvals
UL Listed
Maximum Working Pressure
250 psi (17,2 bar)
Discharge Coefficient
K = 5.6 gpm/psi
(80 Lpm/bar
½
Temperature Rating
155°F (68°C) Sprinkler; 139°F (59°C) Plate
200°F (93°C) Sprinkler; 165°F (74°C) Plate
Adjustment
1/2 in. (12,7 mm)
Finishes
See the Ordering Procedure section
Physical Characteristics
Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bronze
Support Cup . . . . . . . . . . . . . . . . . . Plated Steel
Guide Pins . . . . . . . . . . . . . . . . . . Stainless Steel
Deflector. . . . . . . . . . . . . . . . . . . . . . . . . . . Brass
Compression Screw . . . . . . . . . . . . . . . . . Brass
Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Glass
Cap. . . . . . . . . . . . . . . . . . . . . Bronze or Copper
Sealing Assembly . Beryllium Nickel w/TEFLON
Cover Plate. . . . . . . . . . . . . . . . . . . . . . . . . Brass
Retainer . . . . . . . . . . . . . . . . . . . . . . . . . . . Brass
Ejection Spring. . . . . . . . . . . . . . . Stainless Steel
)
½
TFP263
