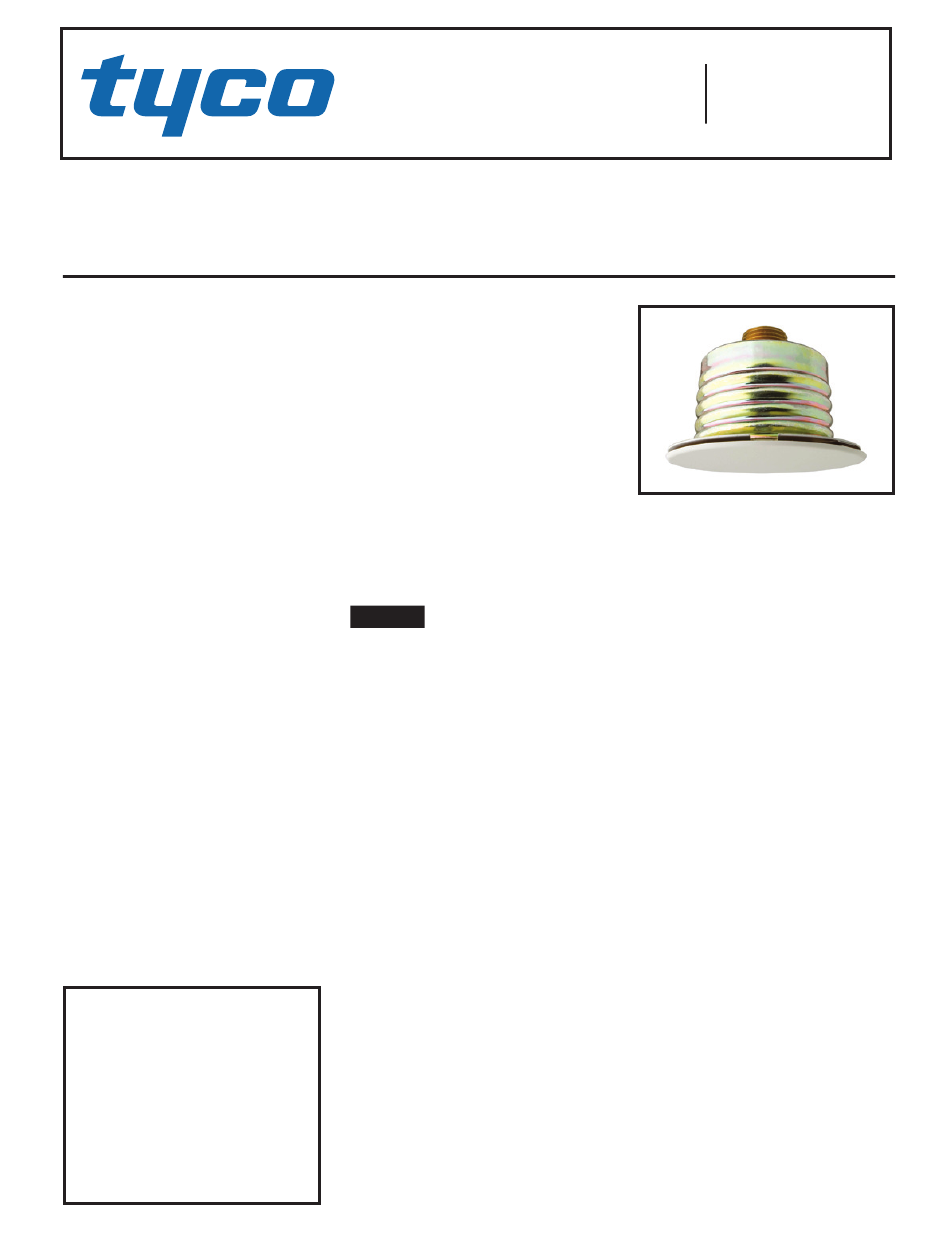

Tyco RFII Series Manual

Series RFII — 5.6 K-factor
"Royal Flush II" Concealed Pendent Sprinklers
Quick & Standard Response, Standard Coverage
General
Description
The TYCO Series RFII 5.6 K-factor,
"Royal Flush II" Concealed Pendent
Sprinklers Quick Response (3-mm
bulb) and Standard Response (5-mm
bulb), are decorative sprinklers featur-
ing a flat cover plate designed to con-
ceal the sprinkler. These sprinklers are
optimal for architecturally sensitive ar-
eas such as hotel lobbies, office build-
ings, churches, and restaurants.
Each sprinkler includes a Cover Plate/
Retainer Assembly and a Sprinkler/
Support Cup Assembly. The separa-
ble, two-piece assembly design pro-
vides the following benefits:
• Allows installation of the sprinklers
and pressure testing of the fire pro-
tection system prior to installation
of a suspended ceiling or applica-
tion of the finish coating to a fixed
ceiling.
• Permits the removal of suspended
ceiling panels for access to building
service equipment without having
to first shut down the fire protection
system and remove sprinklers.
• Provides for 1/2 inch (12,7 mm) of
vertical adjustment to allow a mea-
sure of flexibility in determining the
length of fixed piping to cut for the
sprinkler drops.
The Series RFII Sprinklers are shipped
with a Disposable Protective Cap. The
Protective Cap is temporarily removed
during installation and replaced to help
protect the sprinkler during ceiling in-
IMPORTANT
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its components
and cause the sprinkler to fail to
operate in a fire situation or cause it
to operate prematurely.
Page 1 of 4
stallation or finish. The tip of the Pro-
tective Cap can be used to mark the
center of the ceiling hole into plaster
board or ceiling tiles by gently push-
ing the ceiling product against the Pro-
tective Cap. When ceiling installation
is complete, the Protective Cap is re-
moved and the Cover Plate/Retainer
Assembly is installed.
As an option, the Series RFII Standard
Response (5-mm bulb) "Royal Flush II"
Concealed Pendent Sprinklers can be
fitted with a silicone Air and Dust Seal.
(Refer to Figure 5.) The Air and Dust
Seal is intended for sensitive areas
where it is desirable to prevent air and
dust from the area above the ceiling to
pass through the cover plate.
NOTICE
The Series RFII Concealed Pendent
Sprinklers described herein must be
installed and maintained in compli-
ance with this document and with the
applicable standards of the National
Fire Protection Association, in addi-
tion to the standards of any authori-
ties having jurisdiction. Failure to do so
may impair the performance of these
devices.
The owner is responsible for maintain-
ing their fire protection system and de-
vices in proper operating condition.
The installing contractor or sprinkler
manufacturer should be contacted
with any questions.
Sprinkler
Identification
Number (SIN)
TY3531 — 3 mm bulb
TY3551 — 5 mm bulb
Technical
Data

Sprinkler Approvals

Approvals apply only to the service
conditions indicated in the Design Cri-
teria section.
MARCH 2013
Worldwide
Worldwide
www.tyco-fire.com
www.tyco-fire.com
Contacts
Contacts
• T Y3531 (3-mm Bulb) is UL Listed,
C-UL Listed, VdS Approved (Certif-
icate No. G4090007), and NYC Ap-
proved (MEA 353-01-E) as Quick
Response.
• T Y3531 (3-mm Bulb) is FM and
LPCB Approved (Ref. No. 094a/10)
Approved as Standard Response.
Factory Mutual and LPCB do not
approve any concealed sprinklers
for quick response.
• T Y3551 (5-mm Bulb) is UL Listed,
C-UL Listed, FM Approved, LPCB
Approved (Ref. No. 094a/9), and
NYC Approved (MEA 353-01-E) as
Standard Response.
Approvals for Air and Dust Seal
UL and C-UL Listed for use with the
RFII Standard Response Concealed
Sprinkler (TY3551).

Maximum Working Pressure

Maximum 250 psi (17,3 bar) by UL,
C-UL, and NYC
Maximum 175 psi (12,1 bar) by FM,
VdS, and LPCB

Temperature Rating

155°F (68°C) Sprinkler with
139°F (59°C) Plate
200°F (93°C) Sprinkler with
165°F (74°C) Plate

Discharge Coefficient

K= 5.6 GPM/psi 1/2 (80,6 LPM/bar

Adjustment

1/2 inch (12,7 mm)

Finishes

See the Ordering Procedure section.
1/2 )
TFP181
