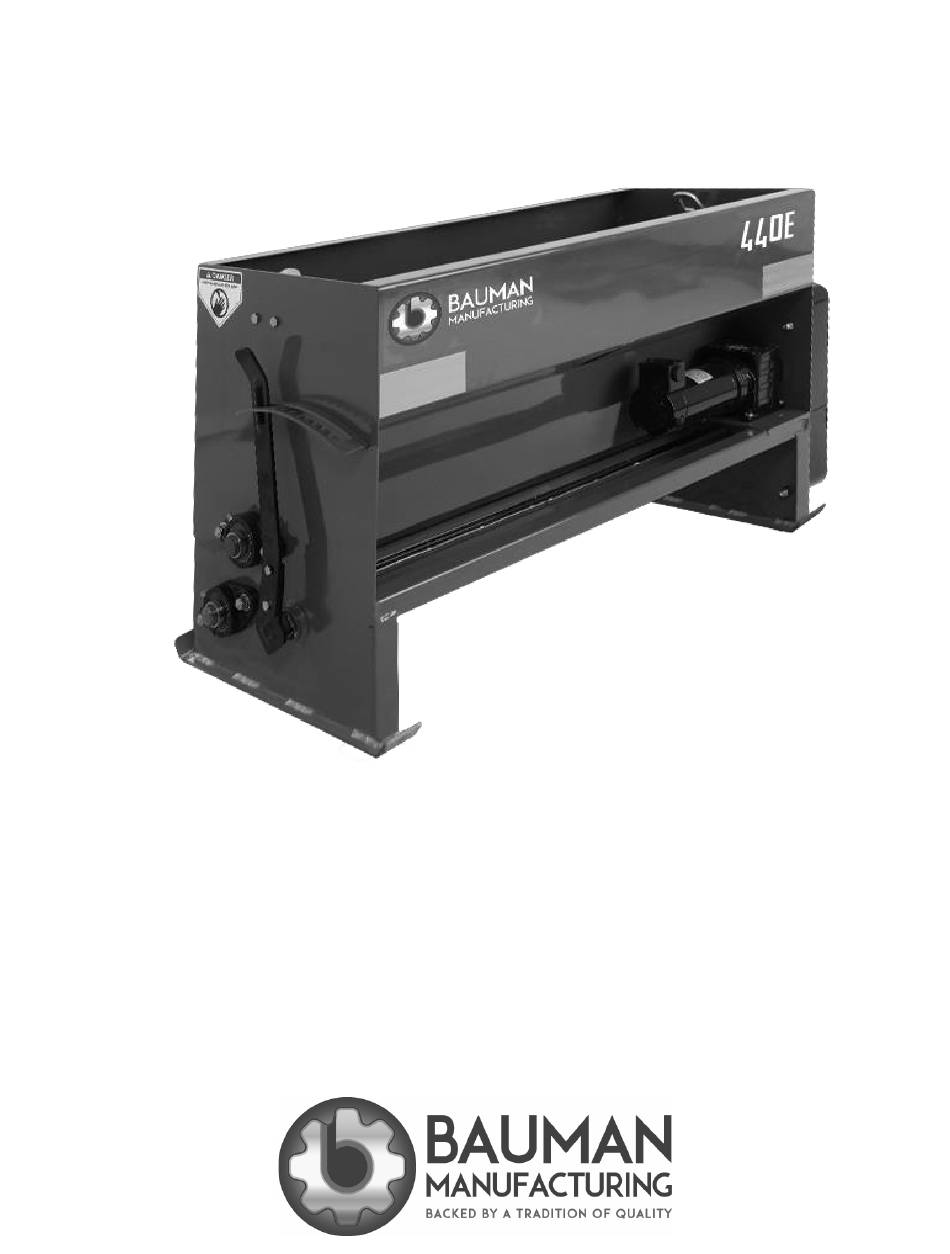

- Page 1 BAUMAN MANUFACTURING 440E/440H DROP SPREADER OPERATOR’S MANUAL...
- Page 2 MODEL: SERIAL NUMBER: PURCHASE DATE: DEALER/WHERE PURCHASED: DOCUMENT REVISION: AUGUST 2020 3 INDUSTRIAL DRIVE ELMIRA, ON N3B 2S1 PHONE: (519)669-4333 FAX: (519)669-2431 WWW.BAUMANMFG.COM...
-
Page 3: Table Of Contents
ATTACHMENT OF THE MACHINE ............................6 SPREADING MATERIAL ................................7 HYDRAULIC/ELECTRICAL ROUTING INSTRUCTIONS ........................ 7 440E/440H COMMON PARTS LIST ............................8 440E, ELECTRIC SPECIFIC PARTS LIST ............................9 440H, HYDRAULIC SPECIFIC PARTS LIST ..........................9 INSTALLATION LOCATIONS ..............................10 HYDRAULIC COMPONENTS ASSEMBLY ..........................13 ELECTRICAL HOOK-UP DIAGRAM ............................ -
Page 4: Introduction
The Bauman Drop Spreader is capable of spreading sand, salt, grit, or similar materials and should only be used for this purpose. Correct usage of the machine also includes following the factory’s preparation, operation and maintenance instructions. -
Page 5: General Information
GENERAL INFORMATION The operator must read and understand the information in this manual to ensure the correct service and operation of the machine and avoid unnecessary risk of accidents and breakdowns. Please Note: Stop the tractor engine before you adjust, lubricate, or repair the machine. Remember to remove the ignition key to make sure no one starts the tractor while you are repairing the machine. -
Page 6: Safety Instructions
This concerns your safety. The Bauman Drop Spreader should only be operated by one person. The operator should ensure that no one is close to the area where the machine is in use. Do not let others operate the machine unless you are certain that they have the necessary knowledge to operate the machine safely and correctly. -
Page 7: Safety Labels
Bauman Drop Spreader. SAFETY LABELS The danger labels on Bauman Manufacturing equipment are for the safety of the operator as well as pedestrians and bystanders. Read and obey warning and danger labels. The operator must ensure that before operating the machine, all guards and grills are in place and that they are attached properly. -
Page 8: Maintenance
MAINTENANCE Warning: When repairing, maintaining and cleaning the machine, it is particularly important to be aware of the safety precautions. Park the tractor (if connected) as a precautionary measure and disconnect power when servicing. Do not clean, lubricate or adjust the machine before the tractor engine has been stopped and the parking brake is activated. -
Page 9: Spreading Material
Spreading of material starts as soon as the tractor’s PTO, hydraulic, or electrical system is engaged. HYDRAULIC/ELECTRICAL ROUTING INSTRUCTIONS Electrical: Bauman Manufacturing electric Drop Spreaders include a wiring kit (see page 15 for schematic). It is the responsibility of the operator to ensure that the motor is wired correctly. It is important that the direction the distributor drum rotates matches the rotation arrow in Figure A. -
Page 10: 440E/440H Common Parts List
440E/440H COMMON PARTS LIST ITEM PART NUMBER DESCRIPTION QTY. 440 100 HOPPER WELDMENT 440 200 GRILL - HOPPER 1140 201 SHIELD 1140 201 SEAL RUBBER SEAL 1140 301 FINGER BAR ASSEMBLY 1140 301-001 FINGER BAR TUBE 40 220 301 STRIP... -
Page 11: 440E, Electric Specific Parts List
440E, ELECTRIC SPECIFIC PARTS LIST ITEM PART NUMBER DESCRIPTION QTY. 1801 440 MOTOR ASSEMBLY 440 ELECTRIC MOTOR & REDUCER DECAL 440E MODEL # FOR 440E 40B12 010 EXT #40-12 TOOTH 5/8" BORE-EXT 1801 440 CONTROL SPEED CONTROL 1801 440 WIRE WIRING HARNESS, FUSE, &... -
Page 12: Installation Locations
INSTALLATION LOCATIONS... -
Page 15: Hydraulic Components Assembly
HYDRAULIC COMPONENTS ASSEMBLY... -
Page 16: Electrical Hook-Up Diagram
ELECTRICAL HOOK-UP DIAGRAM... -
Page 17: Optional Brackets
OPTIONAL BRACKETS 3 POINT HITCH BRACKET Part Number: Bracket 3 PT VENTRAC BRACKET Part Number: Bracket 4100 CLICK-N-GO BRACKET Part Number: Bracket CNG STEINER BRACKET Part Number: Bracket 440... -
Page 18: Additional Options
ADDITIONAL OPTIONS GALVANIZED METAL LID Part Number: 440 LID SOFT COVER Part Number: 440 COVER... -
Page 19: Warranty Information
Bauman Manufacturing has been advised of the possibility of such damages. Except as provided herein, Bauman Manufacturing makes no warranties, expressed or implied, including without limitation, the implied warranties of merchantability and fitness for a particular purpose, with respect to the components.
