K-TOR POWER BOX Instructions page 2

CONVERTING FROM STORAGE MODE TO GENERATOR MODE
UNCLIP PEDALS
Detach both pedals by removing them from the plastic clips
attached to the feet.
OPEN BASE
Unclip and remove the leg pin. Rotate the leg all the way
around and re-insert the pin (stiff when new). Lock in place.
ATTACH PEDAL
The right pedal is marked 'R' on the inside of the crank arm.
Lift the locking clip and slide the locking disc to the unlocked
position. Once unlocked, slide pedal onto crank shaft.
UNLOCKED
LOCKING
CLIP - LIFT
GENTLY AND
SLIDE DISK TO
UNLOCKED
POSITION
NOTE: There is a right and left pedal. It is important they go
on the correct side or the pedals will loosen and may become
damaged.
Repeat steps 5 and 6 to attach the left pedal. The power box is now in generator mode. To return to storage mode, follow the
same steps in reverse.

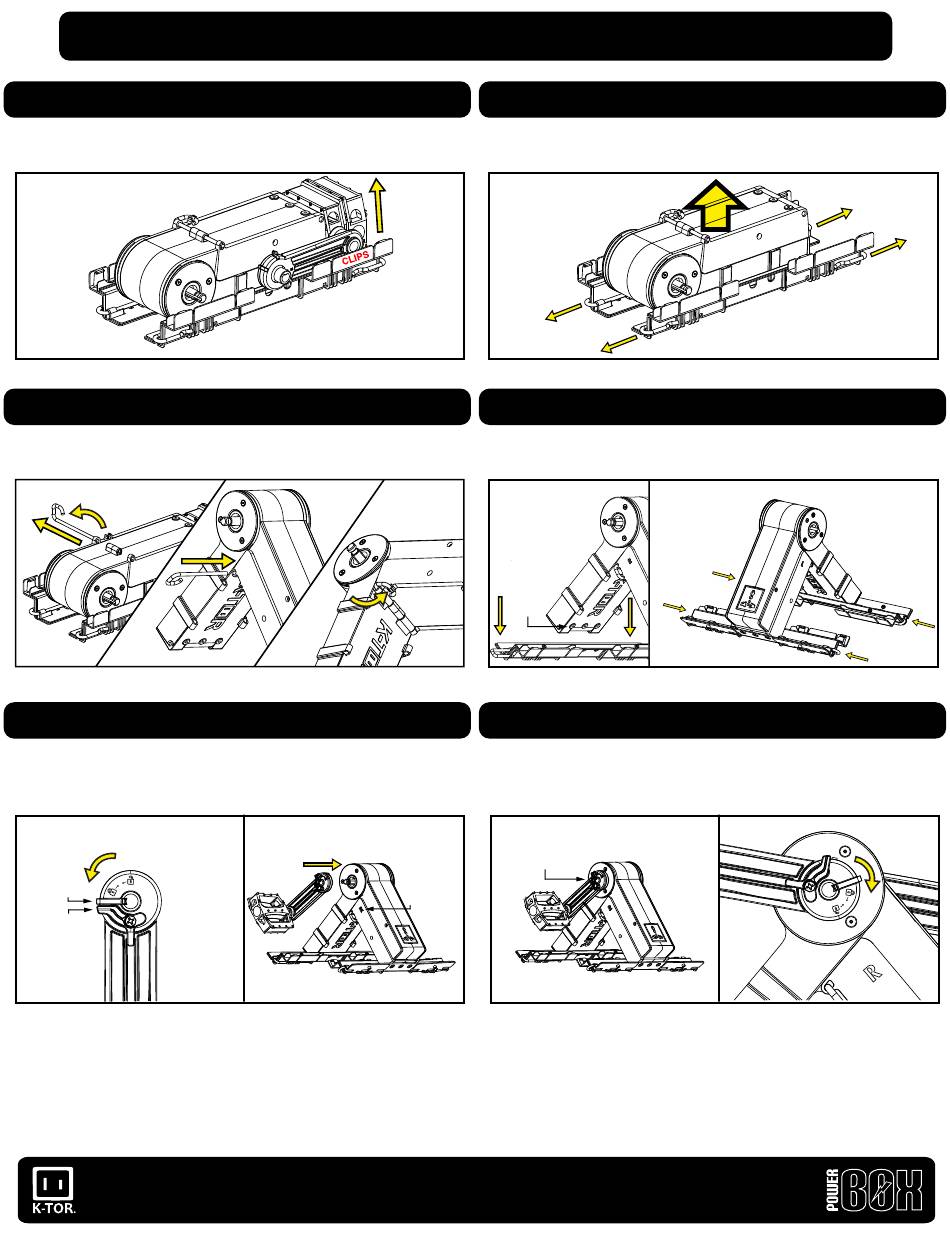

1 2
Remove the feet from the generator by pulling out the four
feet pins and removing the generator.
3 4
Align the holes in the generator legs with the holes in the
feet. Insert the feet pins to lock in place.
ALIGN
HOLES
5 6
Make sure the pedal is fully seated on the crank shaft. With
the pedal securely attached to the crank shaft, lock the pedal
in place by sliding the locking disc into the locked position.
ATTACH
FULLY SEAT PEDAL ON CRANK
RIGHT
SHAFT
PEDAL
TO RIGHT
CRANK
NOTE: If the pedals are not in the unlocked position when
placed onto the crank shaft, they will not fully seat or prop-
erly lock into place.
