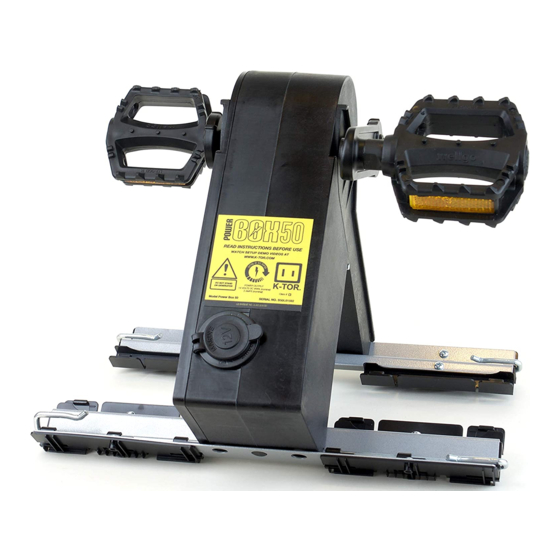

POWER BOX 50 WATT PEDAL
GENERATOR INSTRUCTION
MANUAL

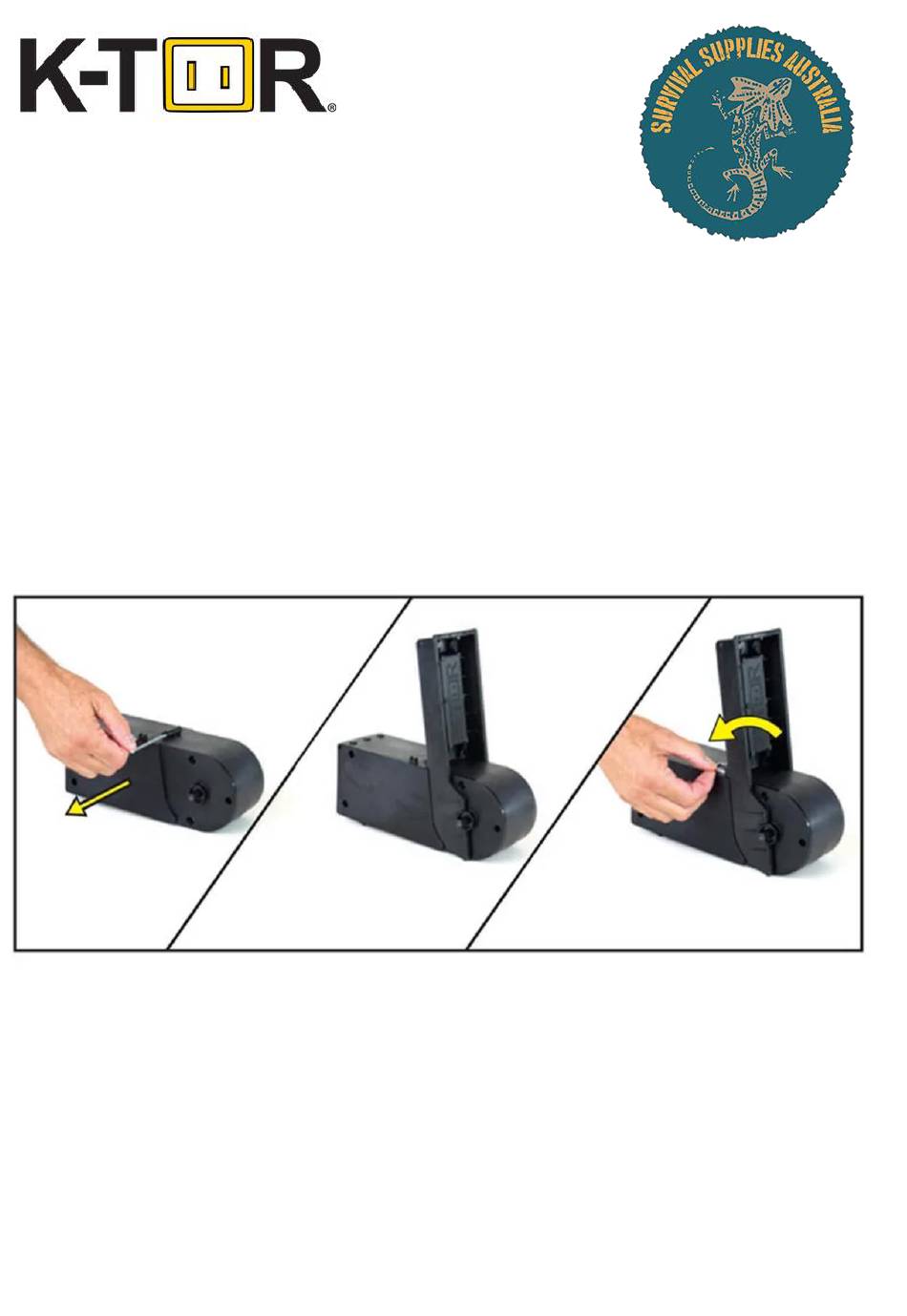

Attach Support Leg
Remove main body and support leg from the box. Remove locking pin
from main body. Slide support leg in place. Replace locking pin.
Attach Feet
Remove the feet from the enclosed section on the side of the box. Pull
back the pins. Seat the holes in the generator legs with the holes in the
feet, click into place. Insert the feet pins to lock in place. Placing the
SurvivalSuppliesAustralia.com
1
Information is correct as of the 5.10.2021 and subject to change without notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the POWER BOX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for K-TOR POWER BOX

Summary of Contents for K-TOR POWER BOX

  • Page 1 POWER BOX 50 WATT PEDAL GENERATOR INSTRUCTION MANUAL Attach Support Leg Remove main body and support leg from the box. Remove locking pin from main body. Slide support leg in place. Replace locking pin. Attach Feet Remove the feet from the enclosed section on the side of the box. Pull back the pins.
  • Page 2 handle of the locking pin above the foot allows it to come in and out easily. Pushing the handle below will cause it to stay in place. Attach Right Pedal The right pedal is marked R on the inside of the crank arm. With the socket facing away from you, slide the right pedal onto the crankshaft on the right side.
  • Page 3 Screw Right Pedal in Place Make sure the pedal is fully seated on the crankshaft. With the screw lock washer, flat washer and Allen wrench as shown, screw down the pedal. Attach Left Pedal Place left pedal at 180 degrees opposite to the right pedal and screw down as in...
  • Page 4 Tighten Screws Make sure both pedals are screwed down well. Operating Instructions Setup The generator can be operated with two hands or two feet and should be spun in a forward bicycle motion. SurvivalSuppliesAustralia.com Information is correct as of the 5.10.2021 and subject to change without notice.
  • Page 5 This is highly recommended. Plug-in The K-TOR PowerBox 50 has a standard automotive 12-volt socket as an output. Any device designed to be plugged in an automotive socket that is within the PowerBox’s maximum power range can be used. K-TOR carries a number of these items for your convenience such as a 12-volt socket to USB converter, example shown.
  • Page 6 Ready Position yourself, so that your hands or feet are directly over the generator. Apply downward pressure with feet (or hands) to help hold the generator in place. SurvivalSuppliesAustralia.com Information is correct as of the 5.10.2021 and subject to change without notice.
  • Page 7 Compatibility The K-TOR Power Box 50 pedal power generator provides 14 Volt DC power and has been designed to charge directly 12-Volt sealed lead acid batteries. Devices that plug into an automotive 12-Volt socket and are within the maximum power range such as USB outlets can be used.

  • Page 8: Warranty

    To run devices that exceed the generators maximum power charge a battery with a Power Box 50 and run an inverter off of that battery. Warranty K-TOR provides a one year warranty on all generators starting from the date of purchase.
  • Page 9 Hardware Included For more information please feel free to contact us on (08) 6118 6369. SurvivalSuppliesAustralia.com Information is correct as of the 5.10.2021 and subject to change without notice.
