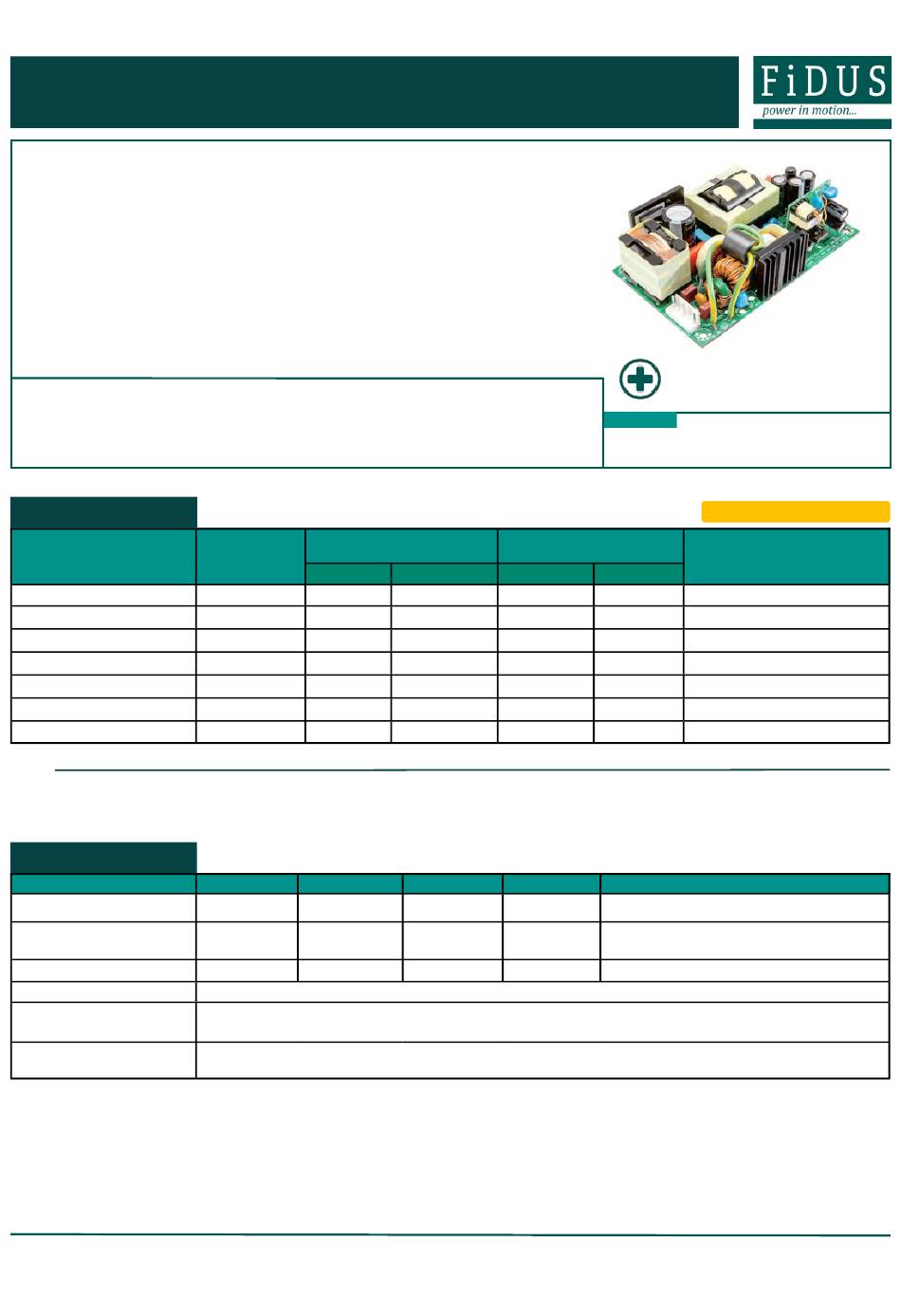

RHM250P
250 Watts
•
Power dense 250W in 3 x 5"
•
Remote on/off and 5V stand by
•
Latest medical approvals IEC 60601-1 (3.1) and IEC 60601-1-2 4th Ed
•
Earth leakage <300uA (BF rated)
•
EN55011 Level B conducted & radiated
•
-40 to +70°C Operation
•
5 Year warranty
The RHM250P series offers 250W in a dense, 3 x 5" open frame package. The units are designed for
use in medical applications, are very efficient and have low emissions, meeting EN55011 Level
They have a wide temperature range from -40 to +70°C and offer low no load power consumption of
<0.3W. Outputs are available from 12 to 48V and all models come with a FiDUS 5 year warranty.
Models & Ratings
Model Number
RHM25012P
RHM25015P
RHM25019P
RHM25024P
RHM25030P
RHM25036P
RHM25048P
Notes
1. Output 2: Standby Power 5V@2A
2. Output 2: Minimum load 0.3A

Key specifications

Parameter
AC Input range
Operating temperature
Efficiency
Dimensions
EMC
Safety
1
Series
Output Power
Voltage
250W 12V
250W 15V
250W 19V
250W 24V
250W 30V
250W 36V
250W 48V
3. Looms kits available, see 'Installation Advice' pg5
4. Efficiency at full load and nominal line voltage
Minimum Typical
90
-40
90
3 x 5 x 1.46" (76.2 x 127 x 37mm)
EN55011 Level B conducted and radiated. EN61000-3 and EN61000-4, harmonics, flicker, Surge, EFT, ESD, conducted and
radiated. IEC 60601-1-2 4th Ed
IEC60601-1 2006/A1:2013, ES60601-1:2005 (R2012), CSA-C22.2 No. 60601-1:14, EN60601-1:2006/A1:2013
www.fiduspower.com
Output 1
Current Max Voltage
20A 5V
16A 5V
12.63A 5V
10A 5V
8A 5V
6.66A 5V
5A 5V
Maximum Units
264 VAC
70 °C
92
B.
Dimensions:
3 x 5 x 1.46" (76.2 x 127 x 37mm)
Output 2 (1,2)
Current Max
2A
2A
2A
2A
2A
2A
2A
Notes & Conditions
Derate linearly from 100% power at 50°C to 50%
power at 70°C
%
Installation Advice PG5
(4)
Efficiency
90%
90%
90%
91%
91%
92%
92%
