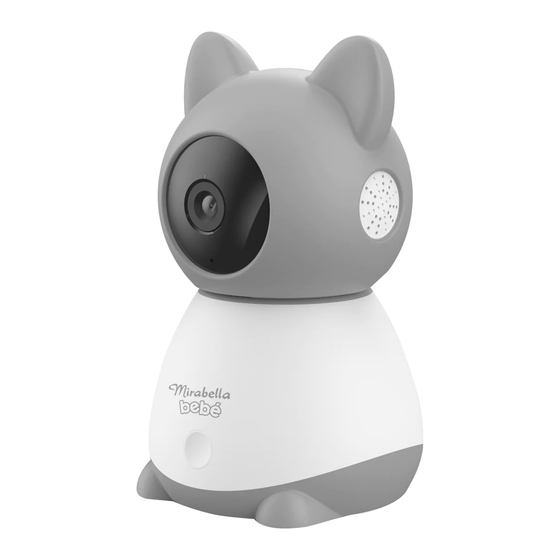

- Page 1 Quick Start Guide Mirabella Bebe Full HD Wi-Fi Pan & Tilt Baby Camera Model: I002867 P a g e...

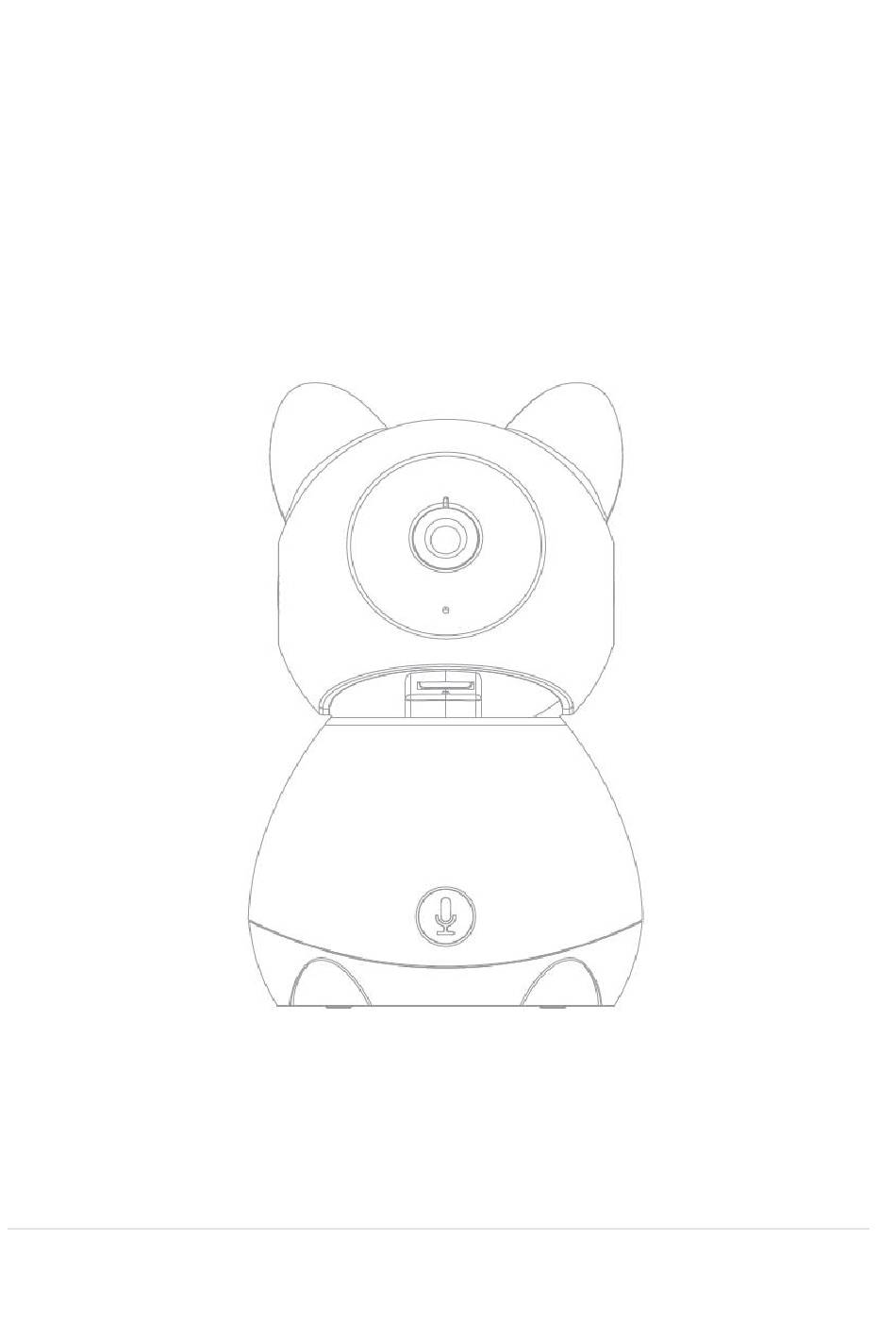

- Page 2 What’s included Speed 9S Bracket Power screw sets Adaptor Product Details P a g e...
- Page 3 Install the APP and register Account Download the "Mirabella Genio" APP to your smartphone from App Store or Google Play, or you can also scan the QR code below, the APP icon will be displayed after installed successfully Insert the Micro SD card (not included) this is optional and the camera will work without it.
- Page 4 Use the included mounting bracket to fix the camera to a clean surface Or put the camera on a flat surface 2. Pairing the camera using Mirabella Genio App 1. Connect the supplied 5V 2A adaptor to the camera and turn on the power switch 2.
- Page 5 3. Please ensure your mobile phone is connected to your 2.4Ghz Wi-Fi network (the baby cam is not compatible on 5GHz Wi-Fi network) 4. Launch Mirabella Genio APP, tap on +, then choose Security & Sensor , select your camera from the list of smart devices icon 5.
- Page 6 6. Tap continue and QR code will appear, face this QR code in front of the camera approximate 15-20cm, until your hear a “dongdongdong” sound, P a g e...
- Page 7 7. Please wait for indicator light to switch to solid blue, then tap the beeped/indicator switch button 8. Camera is now successfully added into your APP. Please refer to the FAQ section for troubleshooting if this method does not connect. P a g e...
- Page 8 Camera Guide Tips (the user interface is subject to slight alterations based on firmware updates) Tap on the pencil icon to access the cameras Settings to take snapshot of the screen and save it to phone’s camera roll tap to speak to the camera record live footage into your phone’s internal storage access to the footage recorded...
- Page 9 : Wi-Fi signal, if signal is less than 65% you should consider improving your Wi-Fi network conditions Device information: detailed information for this camera, owner information, Virtual ID, IP address etc Basic Function Settings: access to status indicator on/off, Flip screen, Time Watermark option IR Night Vision: on/off or Auto Detection Alarm Settings: access to...
- Page 10 Status indicator: This is to turn off the blue status indicator light on your camera Talk Mode: You can either select one way or two way talk mode Detection Alarm Settings Motion Detection: turn on/off motion detection or adjust the sensitivity level Motion Tracking: camera will automatically rotate keeping the moving object in the centre of the...
- Page 11 Schedule: All-day on or Schedule for the time that meets your needs Memory Card Settings SD Card Recording: this option must be turned on if you want to record footage onto your SD card and view it on your playback Event recording: only records if it detects motion movement, motion detection option must be on at same...
- Page 12 When using non-stop recording a 32GB card can record up 6 days of footage. Event recording can record up to 4 weeks of footage. The performance of your Wi-Fi camera relies on the performance of your Wi- Fi connection and router. If you are using a dual-band router that only has one network SSID, you will need to disable the 5GHz for the connection process and then re-enable the 5GHz once you are connected.
- Page 13 Connection Preparation It is important that your phone is connected to 2.4GHz home Wi-Fi network and not the 5GHz, To verify your mobile device is set to a 2.4Ghz WIFI network, navigate to the Setting menu and click on Wi-Fi. In this menu you will see all detectable networks in your area.
- Page 14 FAQs Q. LED indicator light is not blinking red rapidly when turned on A. power off the camera, wait for 20 sec, use the reset pin, depress the reset hole(small hole under the micro SD slot) until you hear the “dongdongdong” sound, then release the reset pin, wait for another 30-40sec until the light starts to blink red fast Q.
- Page 15 Q. After scanning the QR code, my indicator light doesn’t turn into solid blue? A. This is an indication of communication error on the router, please ensure you manually disable the 5GHz Wi-Fi signal on the router setting Q. How to connect camera to another Wi-Fi network? A.
- Page 16 A. In the genio APP home screen, tap on … on the top right corner, to access these options, tap on family name to switch below rooms Q. Need more help or further technical assistance from Mirabella support? A. In the genio APP home screen, tap on, Me, -> FAQ & Feedback -> Report...
- Page 17 Status Light: Solid Blue Camera is online, running correctly Blinking Blue Camera is trying to connect to cloud service Blinking red fast Camera is ready to pair, to scan QR code Blinking red slow Camera is in the AP mode, ready to pair via SmartConfig method No LED light Camera has no power, please check adaptor and...
- Page 18 MIRABELLA INTERNATIONAL PTY LTD MIRABELLA DRIVE TULLAMRINE VICTORIA 3043 AUSTRALIA TOLL FREE: 1800 636 528 WWW.MIRABELLAGENIO.COM.AU 18 | P a g e...
