Envisiontec PCA 2000 Technical Manual

Technical Guide
PCA 2000
The PCA 2000 Parts Curing Apparatus is the ideal solution for
post-curing parts that have been 3D printed using cDLM or DLP
technologies. The PCA 2000 utilizes a unique system of UV LED
light sources that use both 365 nm to deep cure and 405 nm for the
perfect surface cure of each part. It has a microprocessor-controlled
touchscreen interface and intuitive software that allows you to control
every aspect of the post-processing of your resin objects. With 360°
irradiation and controlled heating, the PCA 2000 can optimize your
productivity.
Applicable Printers:

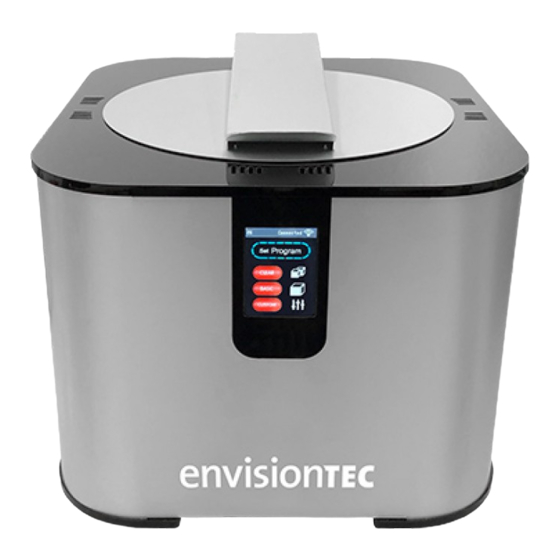

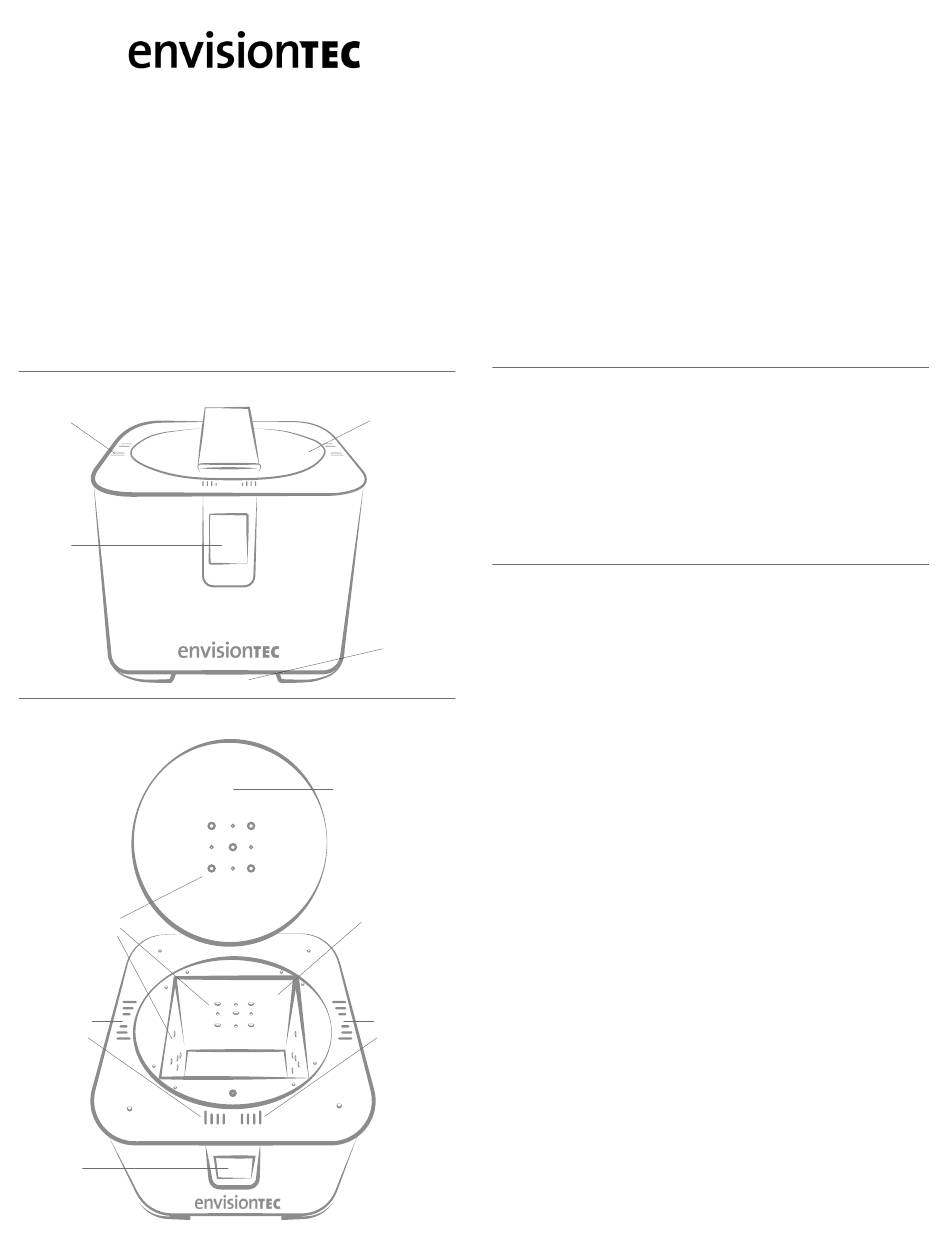

Fig. 1 PCA 2000 FRONT VIEW
Cooling
ducts
Touch
screen
PCA 2000 CURING CHAMBER
Fig. 2
LED light source
Cooling
ducts
Touch
screen
All cDLM and DLP printer series
Curing
chamber lid
Fan output
(not pictured)
Curing chamber lid
Curing chamber
Cooling

Technical Specs

External dimensions: 14.33 x 15.9 x 12.55 in (364 x 404 x 319 mm)
Curing chamber dimensions: 7.87 x 7.87 x 7.48in (200 x 200x190mm)
Emitter type and quantity: 30 Hi-power LED 5 W
Irradiance system: OmniRay 360° Irradiance
Wavelengths: 365 nm - 405 nm
Emission opening: +/- 20 nm
Total emitter power: 150 W
System: Eco-passive
Heating control: 6x PID controller
Management: 16 bit IDM processor
Interface: 3.2 in TFT touch screen
Programs: 2 standard - customer set n°7 memory
Command: Auto off
Connectivity: 2.4 Ghz WIFI
Power supply: Internal
Power supply voltage: 11-230V 6-4A 50-60Hz
Environmental Conditions
Situate the PCA 2000 in a ventilated area away from sources of heat
and away from flammable materials and liquids that may cause a
safety risk - see Safety Instructions. Keep the PCA 2000 at least
8 inches / 20 cm from the wall. To avoid damaging the apparatus,
do not obstruct in any way the cooling ducts, their openings to the
outside, the fans on the rear panel, and fan on the base of the PCA
2000. Keep the PCA 2000 in an environment with temperatures
within 65° to 82° F / 18° to 28° C.
Recommended Custom Curing Times
Below is a list of recommended curing times for EnvisionTEC materials
in the PCA 2000 curing apparatus. Curing times are subject to change.
Material
ABS Tough White - Dental 0:02:00
ABS Tough White - MCAD 0:08:00
Easy Cast 2.0
EC-3000
EC-500
E-Gum
E-Model
(Light, Beige)
E-Orthoshape
E-Partial
E-Rigid Form
(Charcoal, Amber)
E-Rigid PU - Dental
E-Rigid PU - MCAD
Epic
E-SepFree
HTM140
(V2, V3)
PIC100
(PIC100C, PIC100G, PIC200)
ducts Press-E-Cast
RC-90
(RC70)
WIC100G
WIC402
© EnvisionTEC Page 1 of 4
TS-OPI-PCA-2000-V20200225-FN-EN.pdf
Time (H:MM:SS) Temp.
20˚ C
20˚ C
2:15:00 60˚ C
0:22:30 60˚ C
1:05:00 60˚ C
0:05:00 60˚ C
0:02:00 20˚ C
0:02:00 20˚ C
0:08:00 20˚ C
0:08:00 20˚ C
0:02:00 20˚ C
0:08:00 20˚ C
1:05:00 60˚ C
0:07:30 60˚ C
0:07:30 60˚ C
1:05:00 60˚ C
0:03:00 60˚ C
0:20:00 60˚ C
0:02:30 60˚ C
0:08:00 20˚ C
Power
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
100%
