Envisiontec PWA 2000 Technical Manual

Technical Guide
PWA 2000
The Parts Washing Apparatus (PWA 2000) is a convenient tool
to assist in removing uncured material from 3D printed models.
The removable washing compartment allows for ease of use
when adding or removing models from the PWA 2000. The PWA
2000 offers a selection between three washing programs, so
that the user can accurately clean the most delicate models
and larger, more complex models effectively and efficiently.
These selections can be made directly on the easy-to-use touch
screen.

Applicable Printers:

Primary Supplies

99% isopropyl alcohol (IPA) or
Diluted PC1 cleaning agent
Order from Envisiontec or
authorized distributor:
SAP part # ACC-99-1000
Dilute - 2 parts water / 1 part PC1

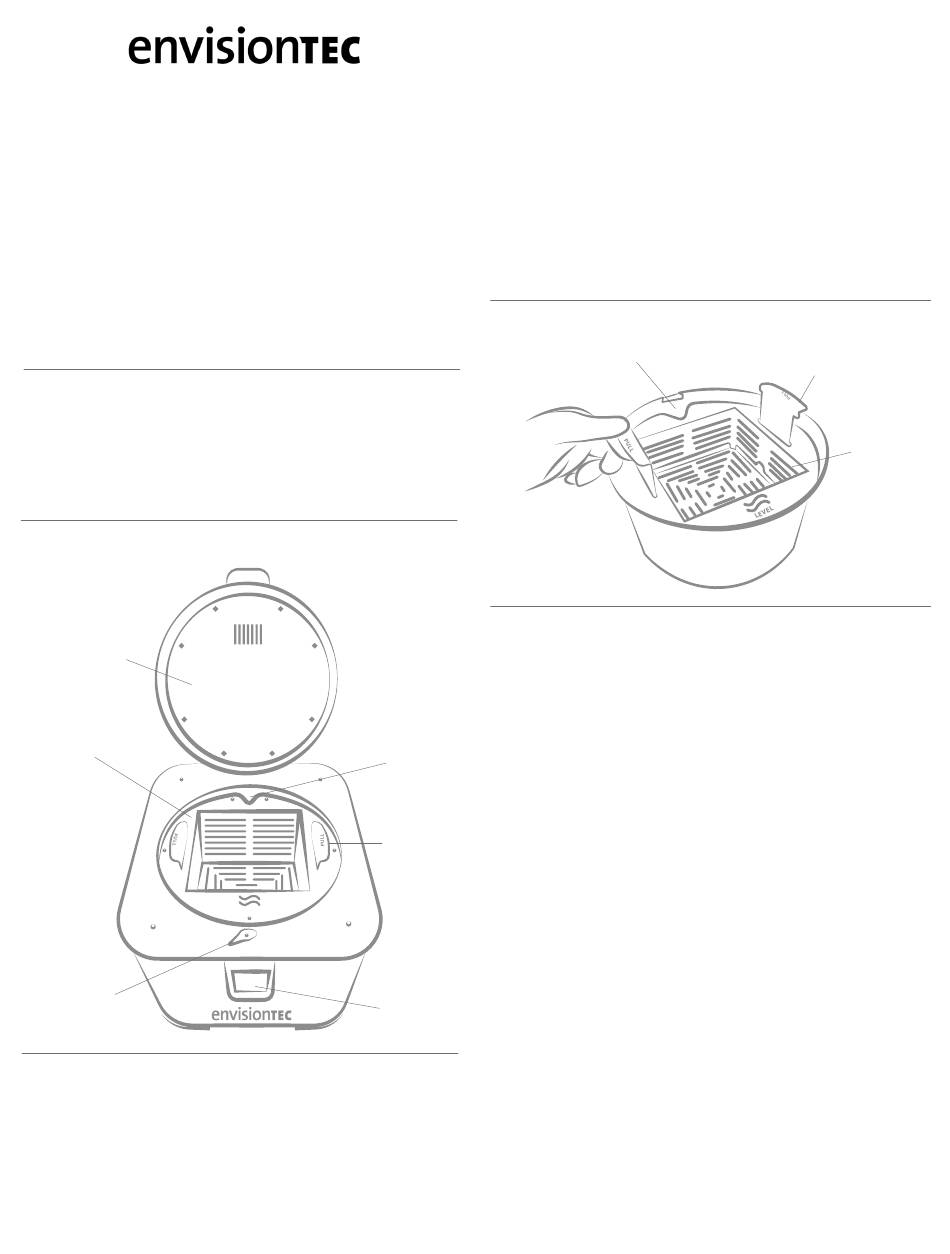

Fig. 1
Washing
compartment lid
Removeable
washing
compartment
Lock for washing
compartment lid

Environmental Conditions

Situate the PWA 2000 in a ventilated area away from sources that
can generate fire or heat - see Safety Instructions. Keep the PWA
2000 at least 8 in / 20 cm from the wall. Keep the PWA 2000 in an
environment with temperatures within 65° to 82° F / 18° to 28° C.
All cDLM and DLP printer series
Nitrile gloves
Absorbent paper towels
Air compressor
Makeup or paint brush

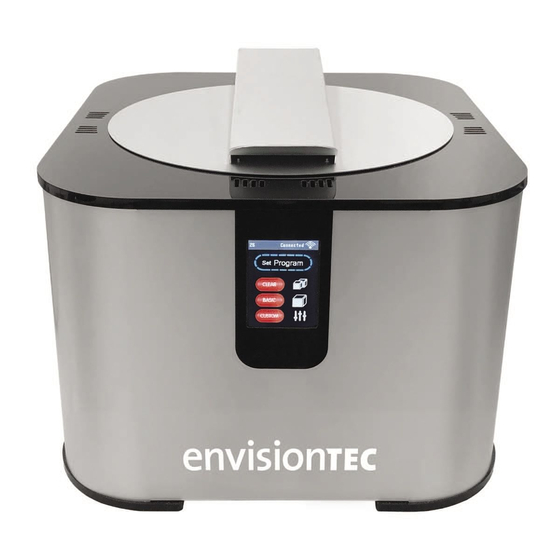

PWA 2000 FRONT VIEW
Drainage
LEVEL
Touch screen

Technical Specs

External dimensions: 12.6 x 13 x 9.68 in / 320 x 330 x 246 mm
Washing tank dimensions: 5.7 x 5.7 x 4.13 in / 145 x 145 x 105 mm
Washing system: Contactless agitator
Washing Mode: Basket or platform
Liquid capacity: 118.35 oz / 3.5 lt
Compatibility: Universal adapter (optional)
Programs: Strong - Medium - Delicate
Management: 16 bit IDM processor
Interface: 3.2 in TFT touch screen
Controls: Auto off
Connectivity: 2.4 Ghz WIFI
Power supply: External
Power supply voltage: 100 - 230V 0.3A
Fig. 2
PWA 2000 REMOVEABLE WASHING COMPARTMENT

Recommended Washing Times

Below is a list of recommended washing times for EnvisionTEC
materials in the PWA 2000 washing apparatus. Washing times are
subject to change.
Material
ABS Tough
EC-3000
spout E-Dent MFH
E-Denture
E-Guard
E-Guide Tint
E-Gum
Handle
E-IDB
E-Model
(Light, Beige, HS)
E-OrthoShape
E-Partial
Epic
E-Rigid Form
(Amber, Charcoal)
E-SepFree
HTM140
(V2, V3)
PIC-100
Press-E-Cast
WIC-402
Do not expose models to alcohol for an extended period of time.
For more specific post processing information on the material used,
see the Cookbook for that material. Cookbooks are available for
download in the E-Team, or by contacting technical support.
© EnvisionTEC Page 1 of 3
TS-OPI-PWA-2000-V20200219-FN-EN.pdf
Drainage spout
(H:MM:SS)
Program Time: IPA - or - Time: PC1
High 00:03:00
High 00:01:00
High 00:05:00
High 00:05:00
High 00:05:00
High 00:03:00
High 00:05:00
High 00:05:00
High 00:03:00
High 00:03:00
High 00:03:00
High 00:00:30
High 00:05:00
High 00:01:00
High 00:02:00
High 00:00:30
High 00:03:00
High 00:03:00
Handle
Interior
grate
(H:MM:SS)
00:06:00
00:06:00
00:06:00
00:12:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
00:06:00
